Commissioning example
Manual b maXX
®
BM1000
Document No. 5.07003.04 Baumüller Nürnberg GmbH
78
of 174
7.6
Required
parameter
settings
Operation of keypad see ZDigital keypad (option)– from page 73.
Reset parameter to factory setting P0310 ⇒ 9
Source of first operation command P0802 ⇒ 1
RUN/STOP from multi-function input MI1
FWD/REV from multi-function input MI2 P1090 ⇒ 1
Source of first master frequency P0801 ⇒ 1
Execute the auto-
tuning function
The autotuning function sequence is necessary for a correct operation of the motor!
The autotuning function must be executed without motor load.
Operation mode set value P1000 ⇒ 249
Autotuning with running motor (without load)P0850 ⇒ 2
After finishing autotuning function parameter P0850 is set to 0.

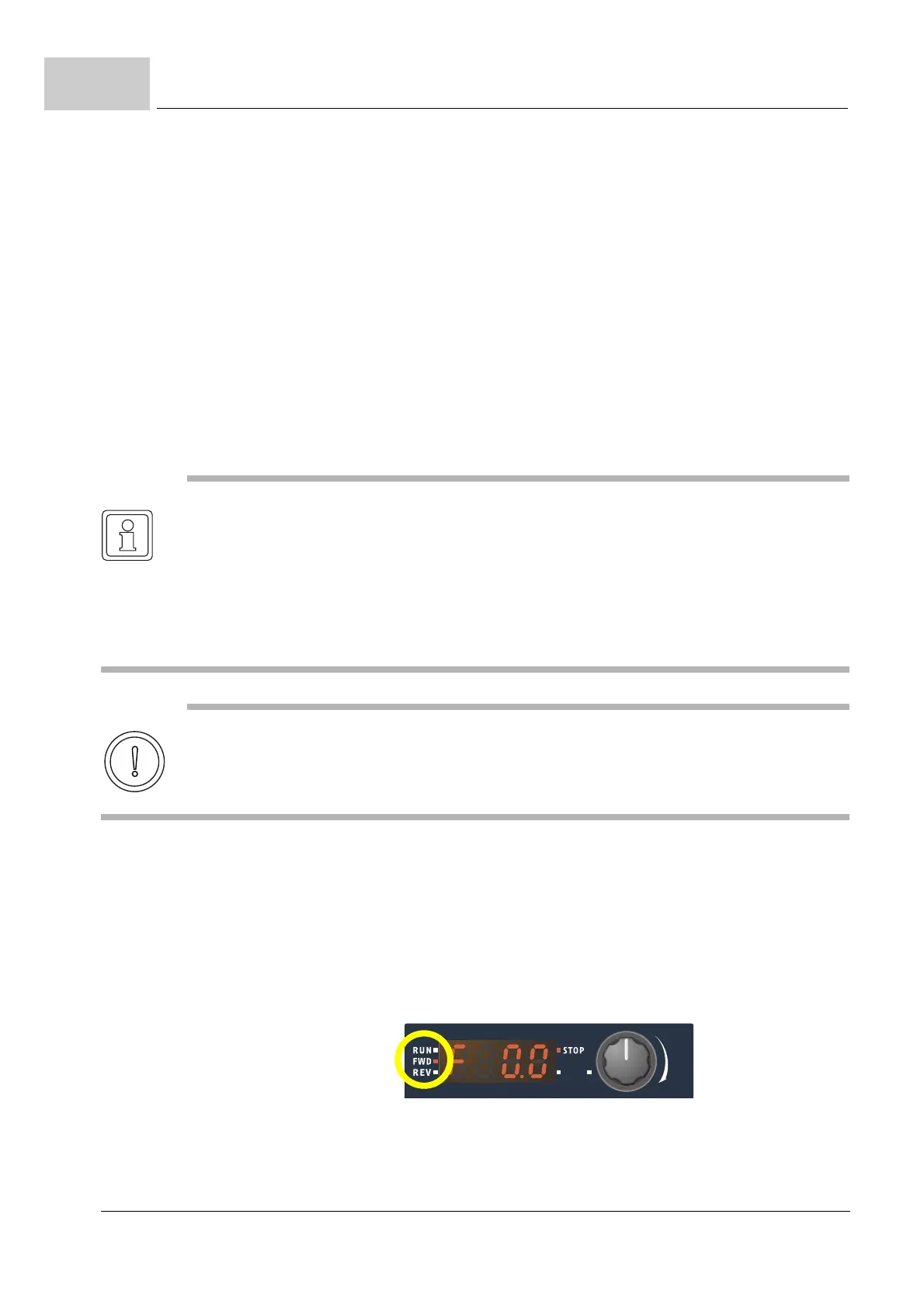

The autotuning function is completed when LED RUN is OFF and LED STOP is ON.
NOTE
m Stop running immediately if any fault occurs and refer to the troubleshooting guide for solv-
ing the problem.
m Do NOT touch output terminals R/L1, S/L2, T/L3 when power is still applied to U/T1, V/T2,
W/T3 even when the device has stopped. The DC-link capacitors may still be charged to
hazardous voltage levels, even if the power has been turned off.
m To avoid damage to components, do not touch them or the circuit boards with metal objects
or your bare hands.
CAUTION
The motor will rotate!
