Operation

Manual b maXX

BM1000

Document No. 5.07003.04

of 174

Operation mode set value P1000 ⇒ 2

(speed setting 1)

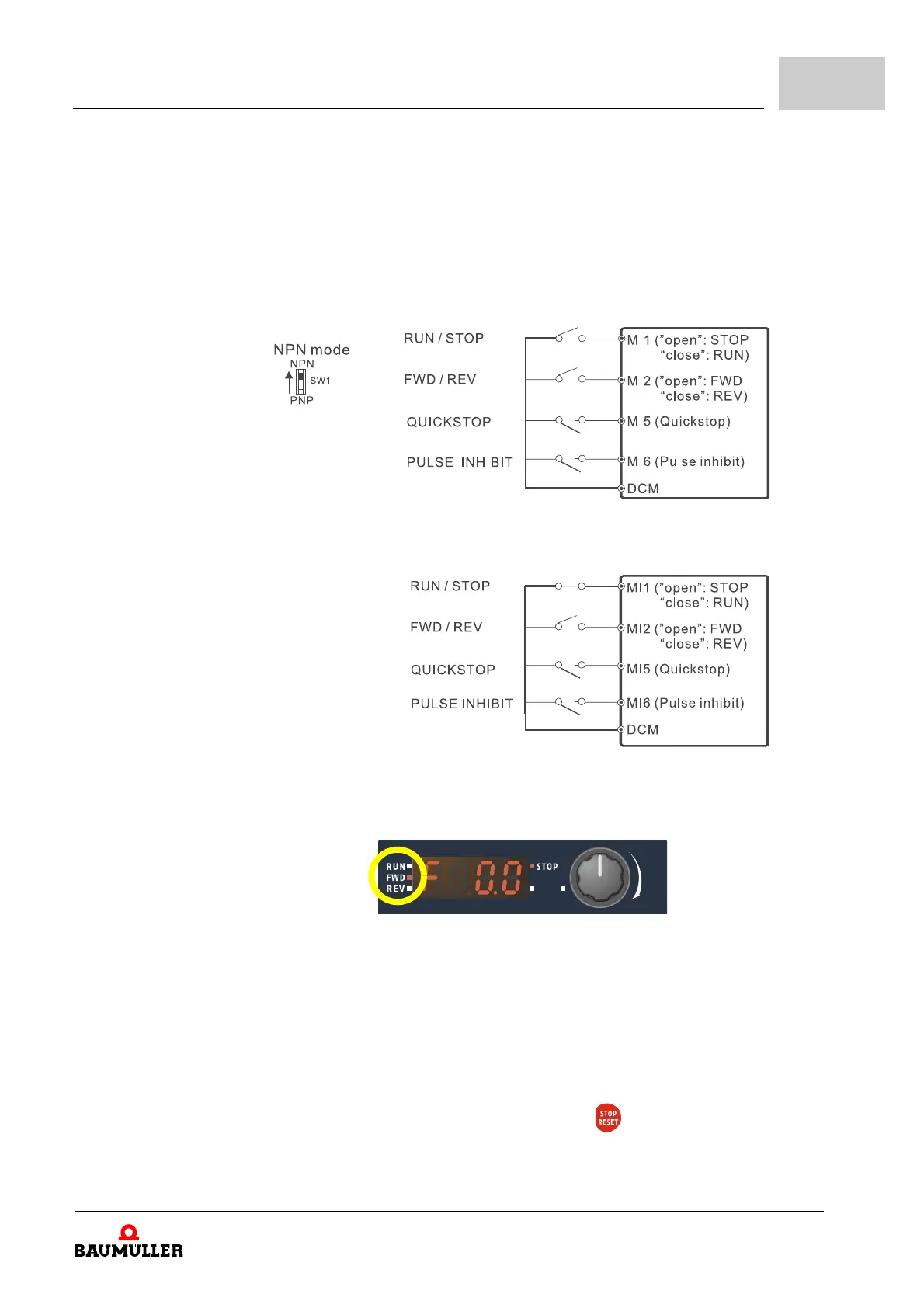

START from multi-function input MI1

1st step (close Quickstop)

2nd step (close RUN/STOP)

⇒ LED RUN = ON

⇒ LED STOP = OFF

Test of

functionality

 START from multi-function input MI1

LED RUN or H1 = ON

LED STOP or H2 = OFF

 Control the motor speed from analog voltage input AVI1.

 Control the motor speed direction from multi-function input MI2.

 And if you want to decelerate to stop, please press key.
