In cover 16 there is a hole for filling oil in the transmission, which is closed by plug 18.
Operation of the mechanical GB with central location of the gears and ranges control
lever as well as their operation sequence, is similar to operation and GB control sequence with
right location of gears and ranges control lever.
1 – GB housing; 2 – fork housing; 3 – liner; 4 – swinging frame; 5 – spring; 6 – ball
hinge; 7 – hinge plate; 8 – GB control lever; 9 – handle; 10 – case; 11 – pressure ring;
12 – housing; 13 – frame axis; 14 – start blocking switch; 15 – adjusting shims; 16 –
cover; 17 – limiting plate; 18 – plug.

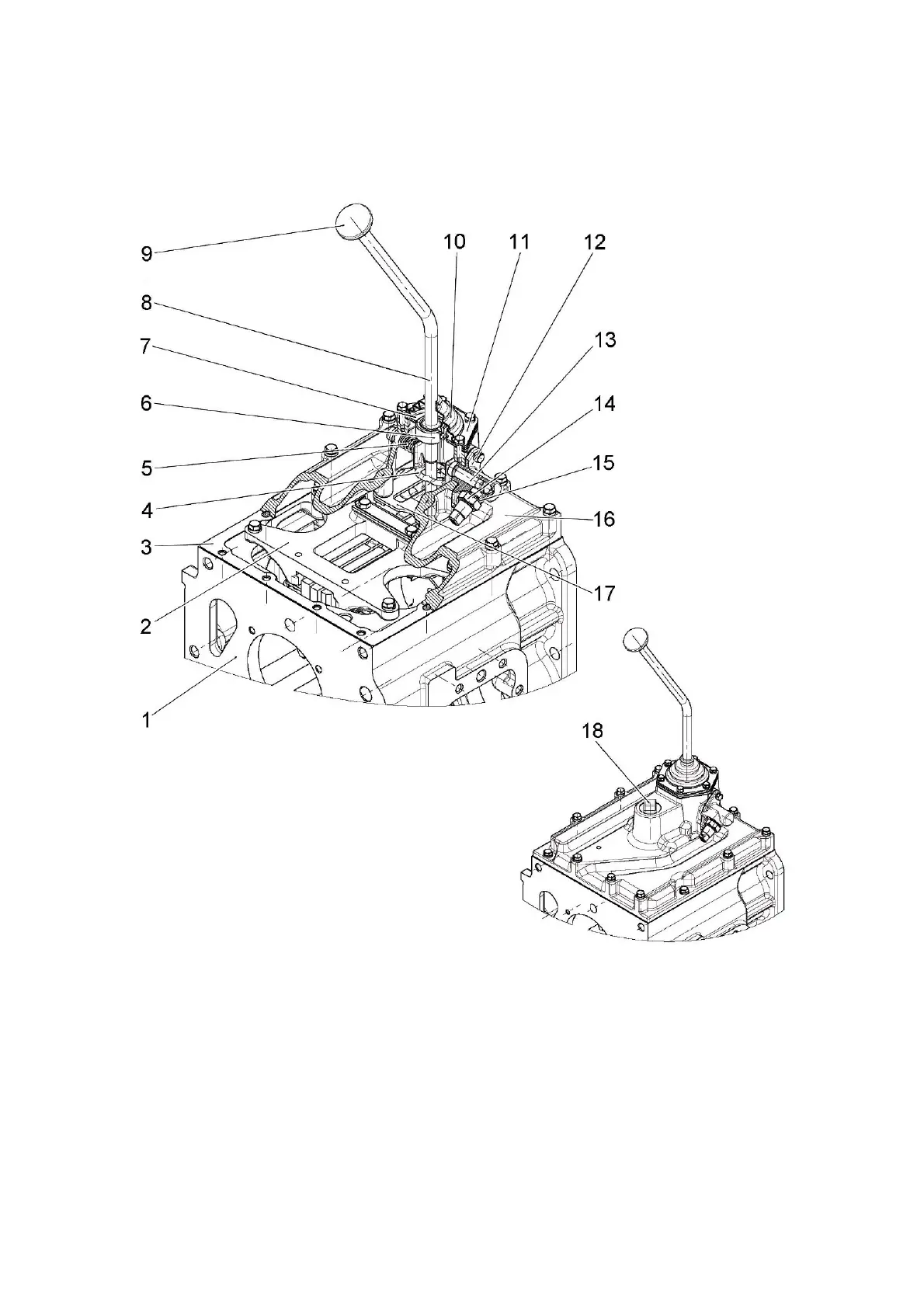

Figure 3.3.3 – Control of the mechanical GB with central location of gears and
ranges shifting lever
