Belarus 820 - Mounting of Canopy on the Base (on the Basis of a Small Cabin)

80-0000010B OM
211
3.19.7 Mounting of canopy on the base (on the basis of a small cabin)
To mount the canopy on the base, do the following:
- mount left side-frame 8 onto the base; use one bolt 6 and two bolts 9 to fasten the
semi-frame. By analogy, fasten right semi-frame 1 to the base. The tightening torque for the
bolts makes from 40 to 56 Nꞏm;
- mount front crossbar 4 and fasten it with two bolts 3. The tightening torque for the
bolts makes from 40 to 56 Nꞏm;
- mount rear crossbar 5 and fasten it with two bolts 7. The tightening torque for the
bolts makes from 40 to 56 Nꞏm;
- mount roof 2 and fasten it with eight bolts. The tightening torque for the bolts makes
from 11 to 16 Nꞏm.

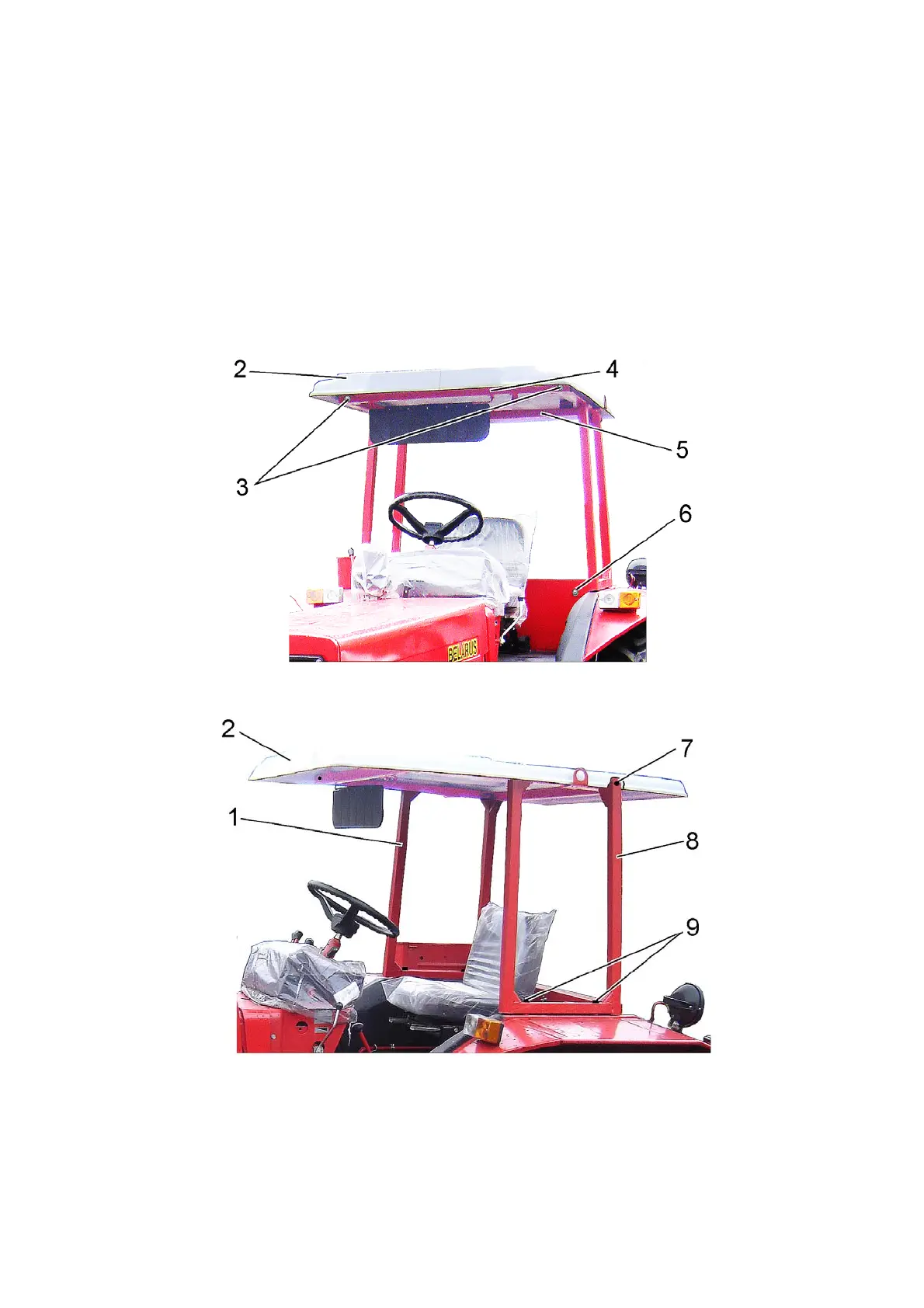

1 – right side-frame; 2 – roof; 3, 6, 7, 9 – bolts; 4 – front crossbar; 5 – rear crossbar;
8 – left side-frame.
Figure 3.19.9 – Mounting of canopy on the base (on the basis of small cab)
ATTENTION: BELARUS-80.1/82.1 TRACTORS WITH A CANOPY FRAME OR
WITH A CANOPY BASE ON THE BASIS OF SMALL CABIN, ARE NOT INTENDED TO
BE EXPORTED TO CUSTOMS UNION COUNTRIES.
