3.2.2 Peculiarities of clutch coupling dismounting, mounting and adjustment
3.2.2.1 General information
1 – flywheel; 2 – driven disc; 3 – pressure plate; 4 – floating bushing; 5 – release
lever; 6 – bearing plate; 7 – locking plate; 8 – adjustment nut; 9 – fork; 10 – bushing.

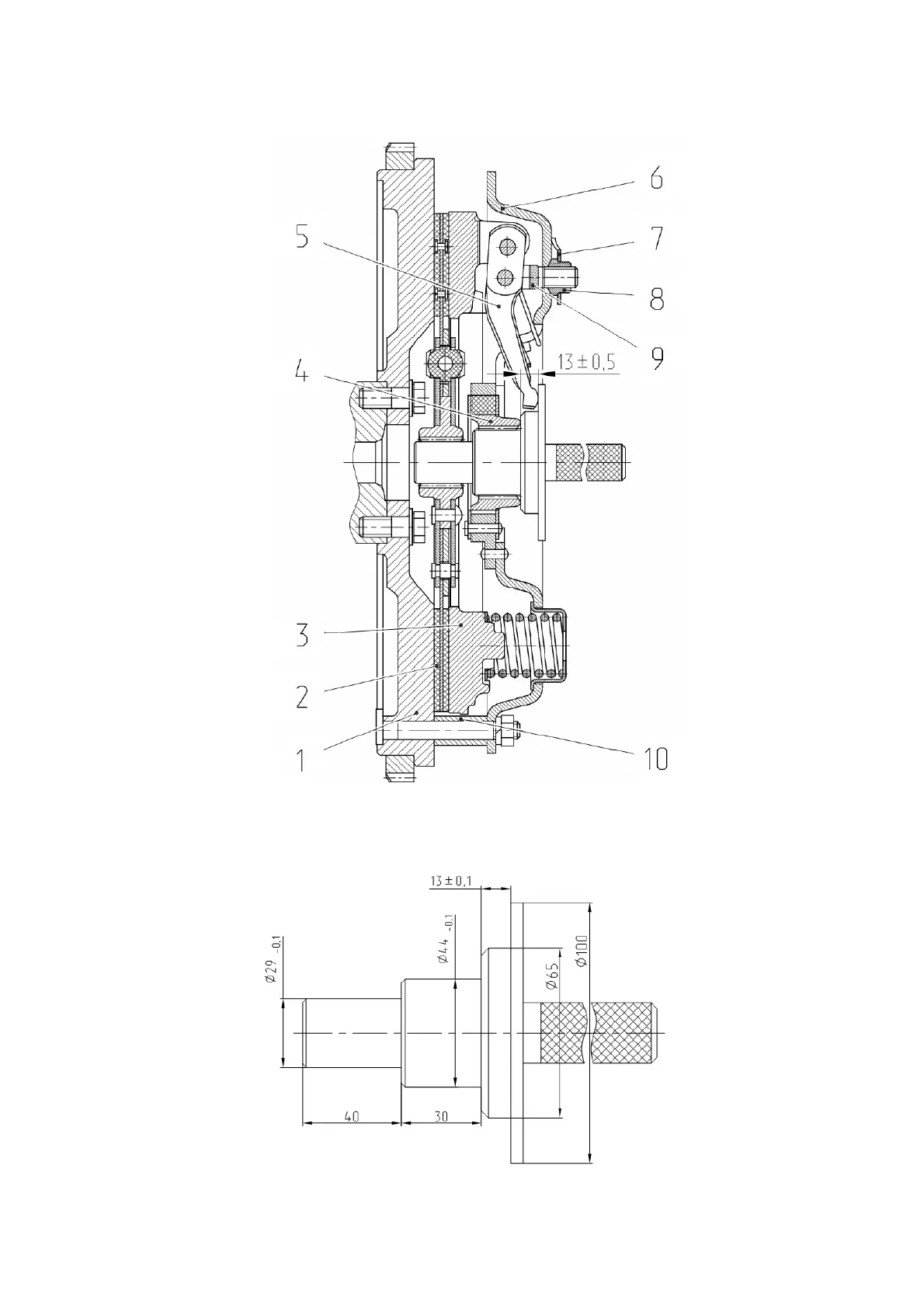

Figure 3.2.2 – Mounting, dismounting and adjustment of the clutch coupling release levers
Figure 3.2.3 – Technological mandrel
