Belarus 820 - 2.24 Layout of instruments and controls of tractor with molded panel of instrument dashboard

80-0000010B OM
69
2.24 Layout of instruments and controls of tractor with molded panel of in-
strument dashboard

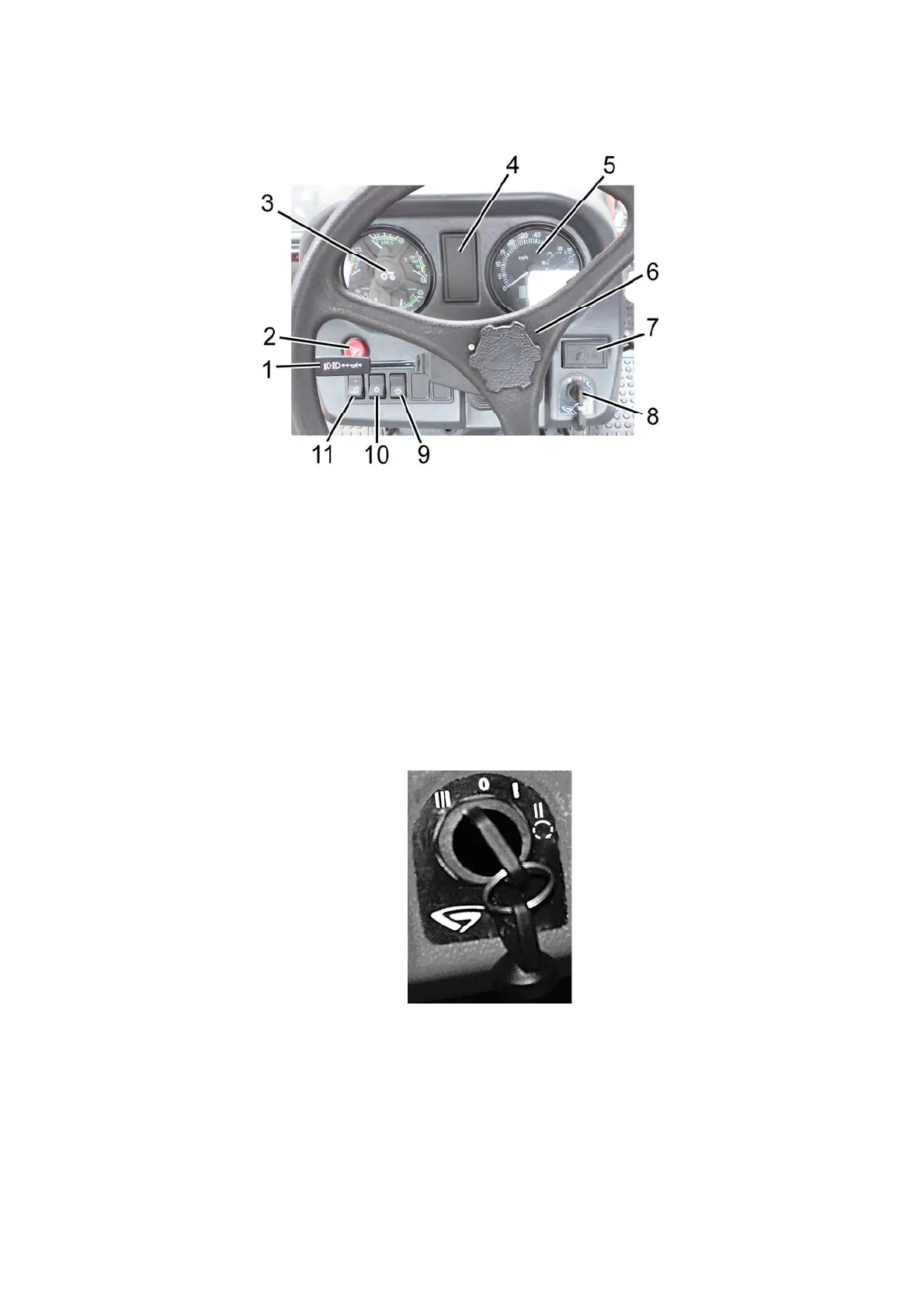

Instruments and controls, located in tractor cabin are shown in figure 2.24.1.
1 – multifunctional underwheel switch; 2 – emergency flashing switch; 3 – combina-
tion of instruments; 4 – pilot lamps unit; 5 – multifunctional indicator unit; 6 – steering
wheel; 7 – multifunctional indicator unit control console; 8 – starter and instruments switch;
9 – windscreen washer; 10 – central light switch; 11 – front working lights (mounted on the
handgrips) switch (if available);
Figure 2.24.1 – Tractor instruments and controls
Starter and instruments switch 8 (figure 2.24.1) has four positions:
- «0» – off;
- «I» – instruments on; pilot lamps unit, heating plugs;
- «II» – starter is on (non-fixed position);
- «III» – radio receiver is on.
Diagram of starter and instruments switch positions is shown in figure 2.24.2 and in
the switch instruction plate.
Figure 2.24.2 – Diagram of starter and instruments switch positions
ATTENTION: REPEATED STARTER SWITCHING ON IS POSSIBLE ONLY AF-
TER THE KEY RETURNING INTO THE POSITION “0” OF THE SWITCH. TO TRANSFER
THE STARTER AND INSTRUMENTS SWITCH INTO THE POSITION “III” IT IS NECES-
SARY TO DEPRESS KEY IN THE POSITION “0” INTO THE SWITCH AND TO TURN IT
COUNTERCLOCKWISE!
