2.19.3 Rear window opening
To open rear window 2 (figure 2.19.3) turn handle 1 upwards (counterclockwise)
and push rear window away. Under the influence of airlifts 3 it will take tilt position.
To close the rear window pull handgrip 4 on until the window is fixed in window ap-
erture, turn handle 1 clockwise until handle detent aligns with bracket forming.
а) window closed b) window open

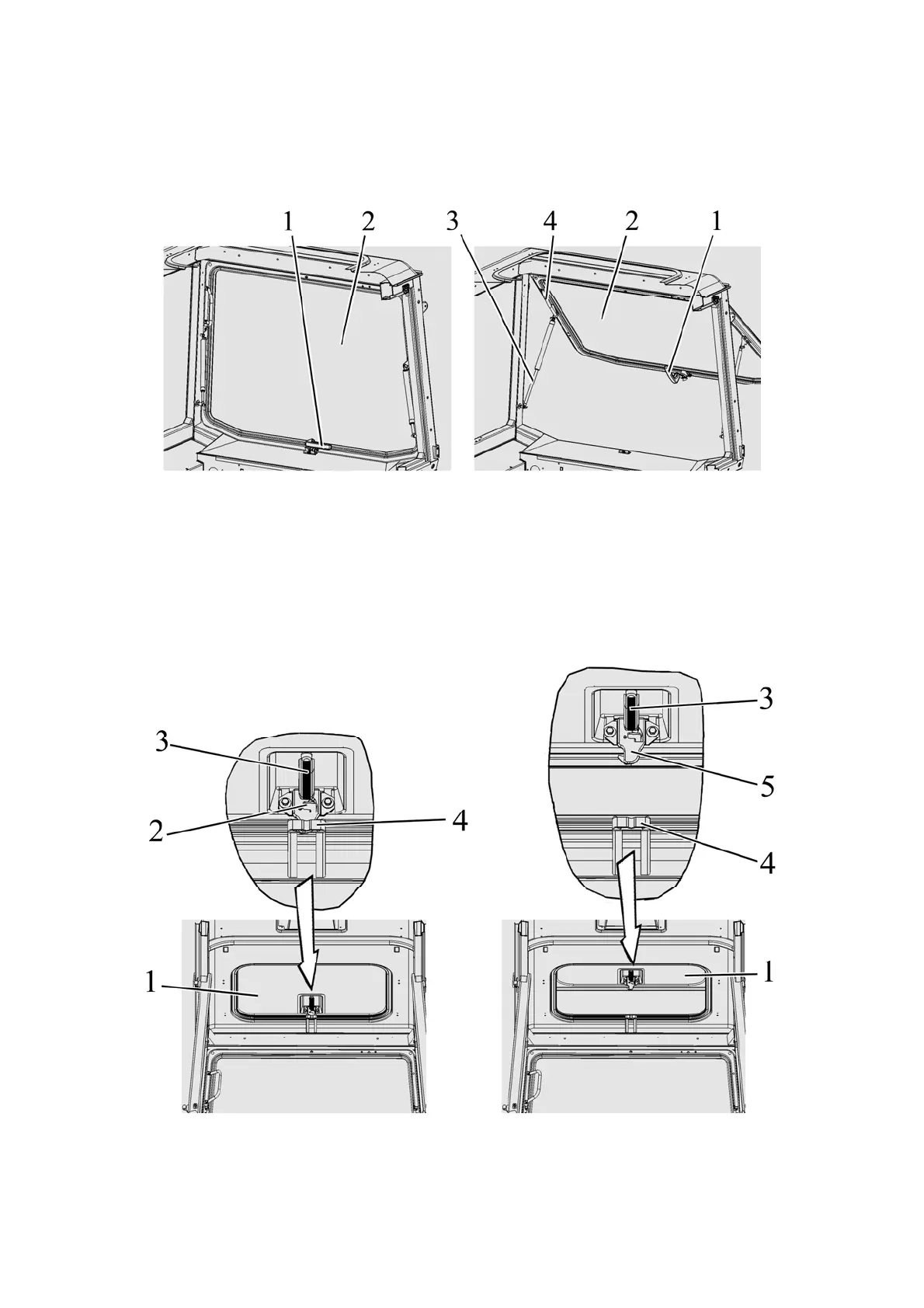

1 – handle; 2 – rear window; 3 – airlift; 4 – handgrip.
Figure 2.19.3 – Rear window opening
2.19.4 Cab roof opening
To open roof 1 (figure 2.19.4) pull hand grip 3 down towards yourself, push detent 2
up and pressing it push hand grip 3 with roof 1 up, until the roof is fixed in opened position.
To close roof 1 pull hand grip 3 down until roof 1 is fixed in a closed position (latch 5
shall be fixed in bracket 4).
а) roof closed b) roof open
1 – roof; 2 – detent; 3 – handgrip; 4 – bracket; 5 – latch.
Figure 2.19.4 – Cab roof opening
