80-0000010B OM
179
3.15.2.5 Adjustment of draft control operating link on tractors with canopy frame or
canopy base on the basis of a small cabin
Carry out adjustment of link 8 of control operation in the following way:
By means of nuts 7 (figure 3.15.11) adjust the length of operation link 8 of the control so
that, when handle 3 is shifted into the rear most position along tractor travel, clearance «Г»
of 11
+5
mm is formed between handle 3 and edge of the groove of sector 1.

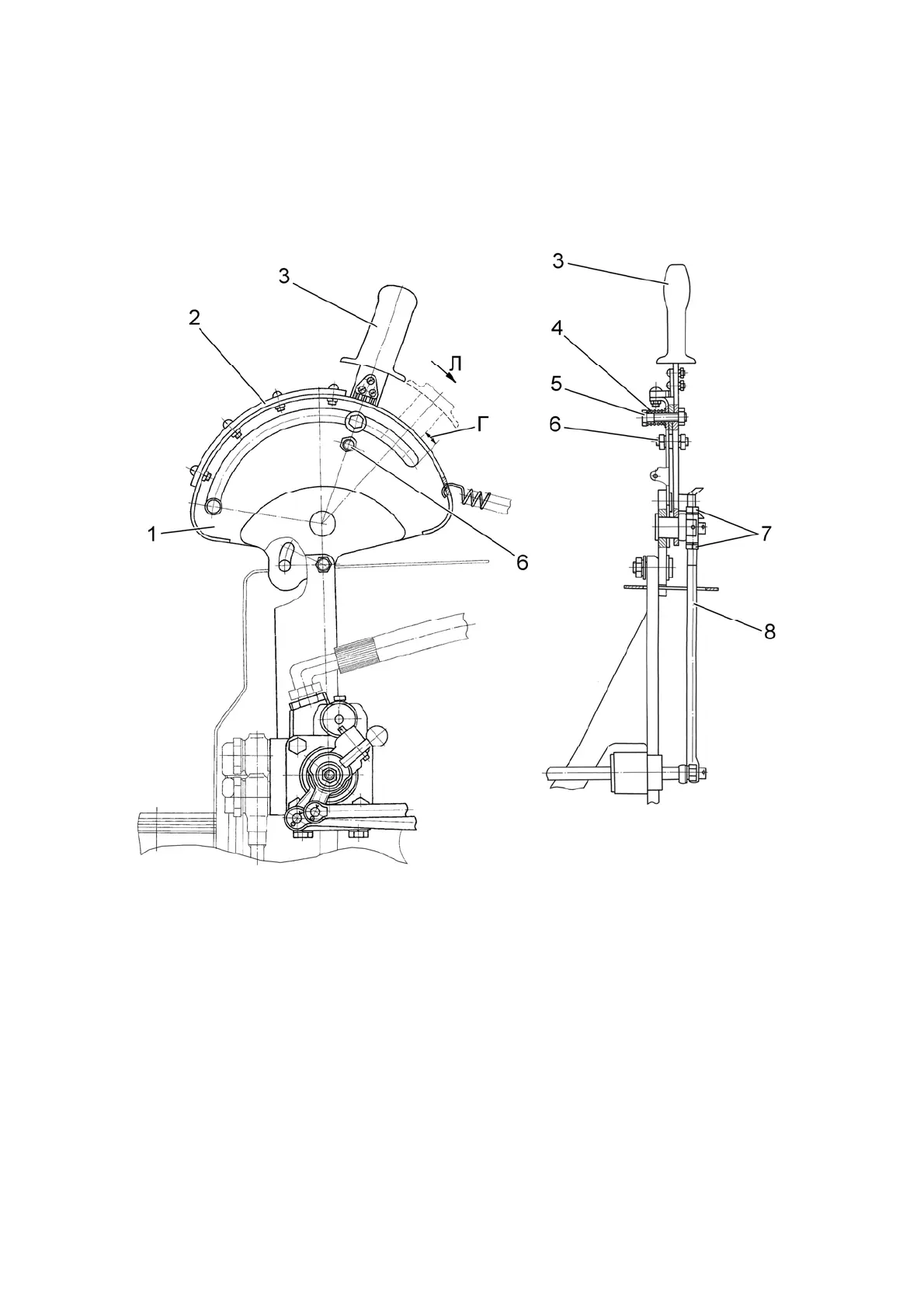

1 – sector; 2 – toothed sector; 3 – handle; 4 – spring; 5 – adjusting bolt; 6 – bolt;
7 – nut; 8 – link.
Figure 3.15.11 – Adjustment of draft control operating link on tractors with canopy
frame or canopy base on the basis of a small cabin.
For a clear fixation of handle 3 in all positions on toothed sector 2, as well as free
mounting on bolt 6 and removal from it, adjust the tension of spring 4 with the help of bolt
5. Shifting of handle 3 from bolt 6 along arrow “Л” should be easy and free, after shifting is
over handle 3 should spontaneously return on bolt 6.
