2.18 Electrical cut-out fuses and relays
2.18.1 General information
Electrical cutout fuses are intended for protection of electrical lines against overloads
and short circuit.
WARNING: TO AVOID BURNING OF TRACTOR WIRING NEVER USE FUSES WITH
CURRENT RATING HIGHER THAN RATING SPECIFIED IN THIS SECTION. IF A FUSE OF-
TEN BURNS OUT, FIND OUT THE CAUSE AND ELIMINATE THE FAULT!
2.18.2 Fuses of the instrument dashboard with cast panel
Three blocks of electrical circuit cutout fuses are built into the instrument dashboard with cast
panel. To access the cutout fuses located in instrument dashboard 1 do screw 2 out (Figure 2.18.1)
and open panel 3.
1 – instrument dashboard; 2 – screw; 3 – panel.
Figure 2.18.1 – Access to fuses, located in the instrument dashboard with cast panel

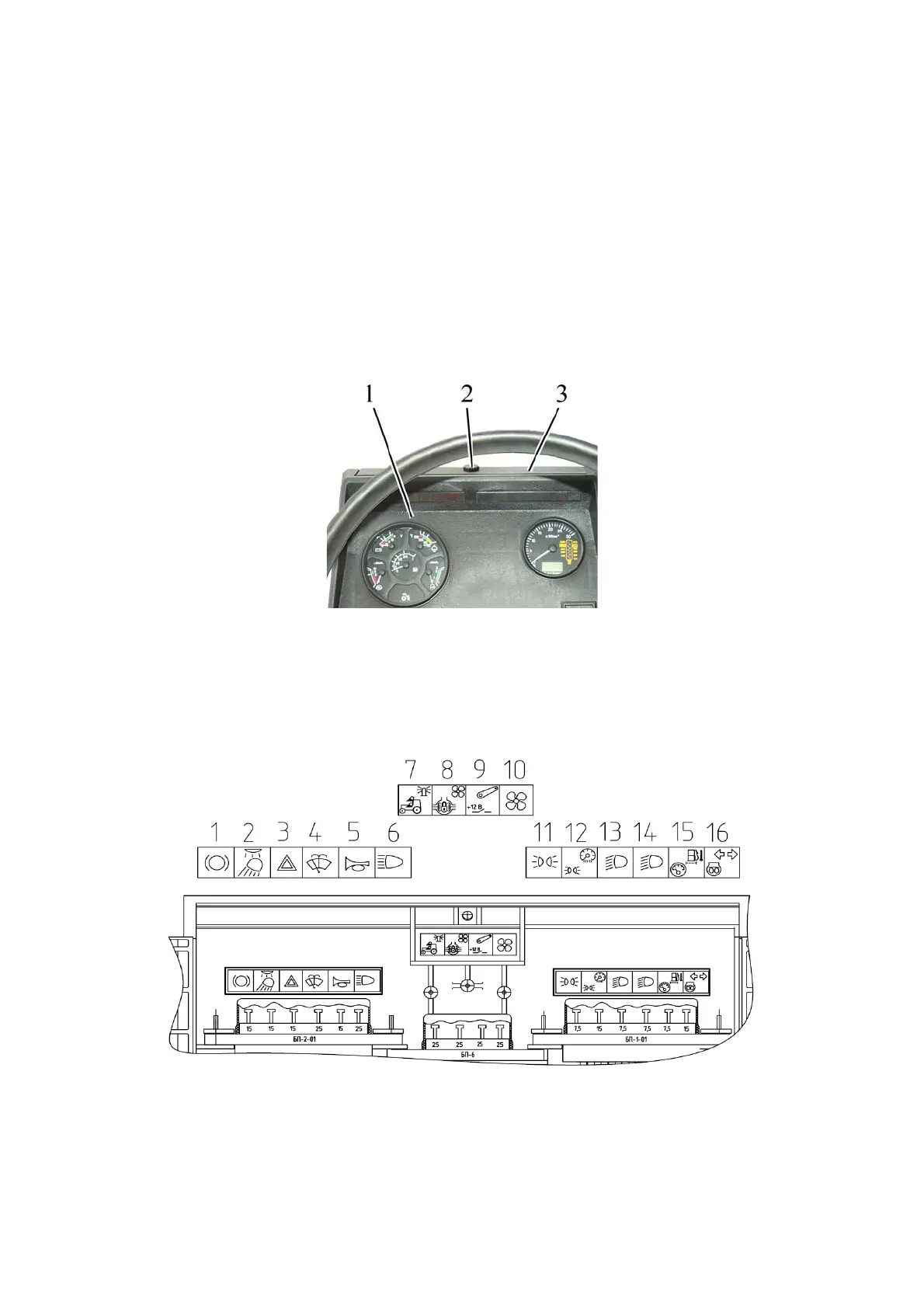

Fuses, located in the instrument dashboard with cast panel are shown in figure
2.18.2
Figure 2.18.2 – Fuses, located in the instrument dashboard with cast panel
