Belarus 820 - Track Formation for Rear Wheels Mounted on Bevel Hubs

80-0000010B OM
230
Check the tightening of wheel retaining nuts and hub retaining bolts after the first
operation hour, after the first eight – ten operation hours and every succeeding 125 opera-
tion hours.
Use Table 4.2.4 and Figure 4.2.6 to determine the track width by measuring dis-
tance А from the semi-axle end to the hub end face.

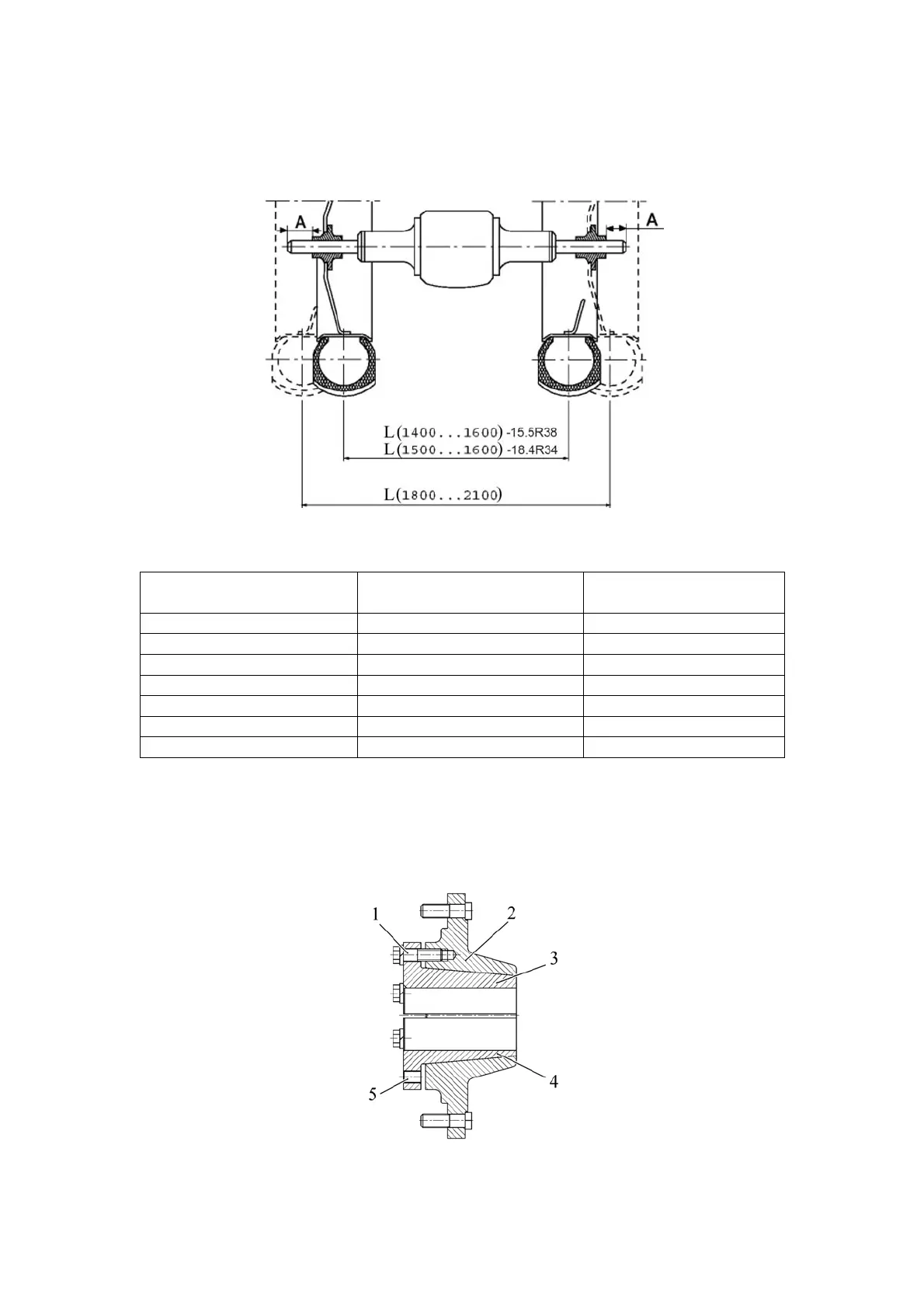

Figure 4.2.6 – Rear wheel track
Table 4.2.4 – Track setting options for rear wheel on terminal hubs
Track width L, mm
Distance А, mm
(
15.5R38
)
Distance А, mm
(
18.4R34
)
1400 100 -
1500 50 50
1600 0 0
1800 164 164
1900 114 114
2000 64 64
2100 14 14
4.2.9.2 Track formation for rear wheels mounted on bevel hubs
By order the tractor rear wheels can be mounted on bevel hub groups which consist
of split conic bushings 3 and 4 (figure 4.2.7) and hub group housing 2.
The bushings are tightened into the hub group housing with six bolts 1 (М20) with a
torque from 360 to 450 Nꞏm, thus clenching the semi-axle.
1 – tie bolts; 2 – hub group housing; 3 – upper bushing; 4 – lower bushing; 5 – dis-
mounting holes.
Figure 4.2.7 – Rear wheel bevel hub
