3.19.6 Mounting and dismounting of canopy frame (canopy base) on the basis of
small cabin.
Canopy frame (canopy base) is installed on the tractor framework through vibration
absorbers 4 (figure 3.19.7).
When dismounting canopy frame (canopy base) it is necessary to:
- remove split pins 1;
- undo nuts 2;
- remove bolts 3;
- remove the canopy frame with an overhead crane with a load capacity of at least
1000 kg, using two eyes 2 (figure 3.19.8a) welded onto upper longitudinal beams 1 of the
canopy frame to secure the chains (wires). If canopy base is installed, use two eyes 2 (fig-
ure 3.19.8b) to secure the chains (wires).

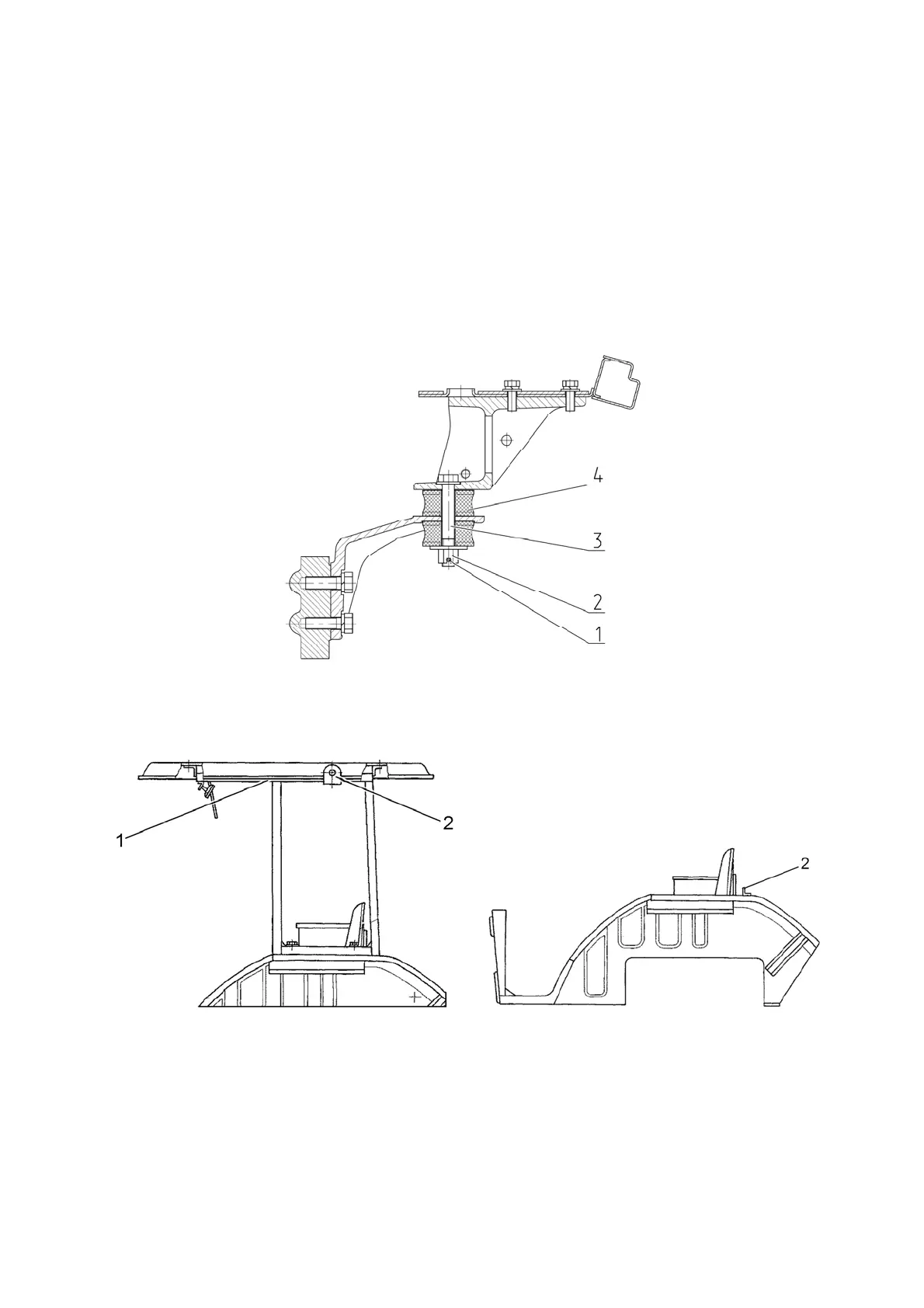

1 – split pin; 2 – nut, 3 – bolt; 4 – vibration absorber.
Figure 3.19.7 – Mounting of cabin on vibration absorbers
a) canopy frame b) canopy base
1 – upper longitudinal beam; 2 – eye.
Figure 3.19.8 – Rigging of canopy frame (canopy base)
ATTENTION: BELARUS-80.1/82.1 TRACTORS WITH A CANOPY FRAME OR
WITH A CANOPY BASE ON THE BASIS OF SMALL CABIN, ARE NOT INTENDED TO
BE EXPORTED TO CUSTOMS UNION COUNTRIES.
