80-0000010B OM
24
2 Controls and instruments
2.1 Layout of controls and instruments of the tractor
Controls and instruments, located in the tractor cabin (universal) are shown in fig-
ures 2.1.1 and 2.1.2.

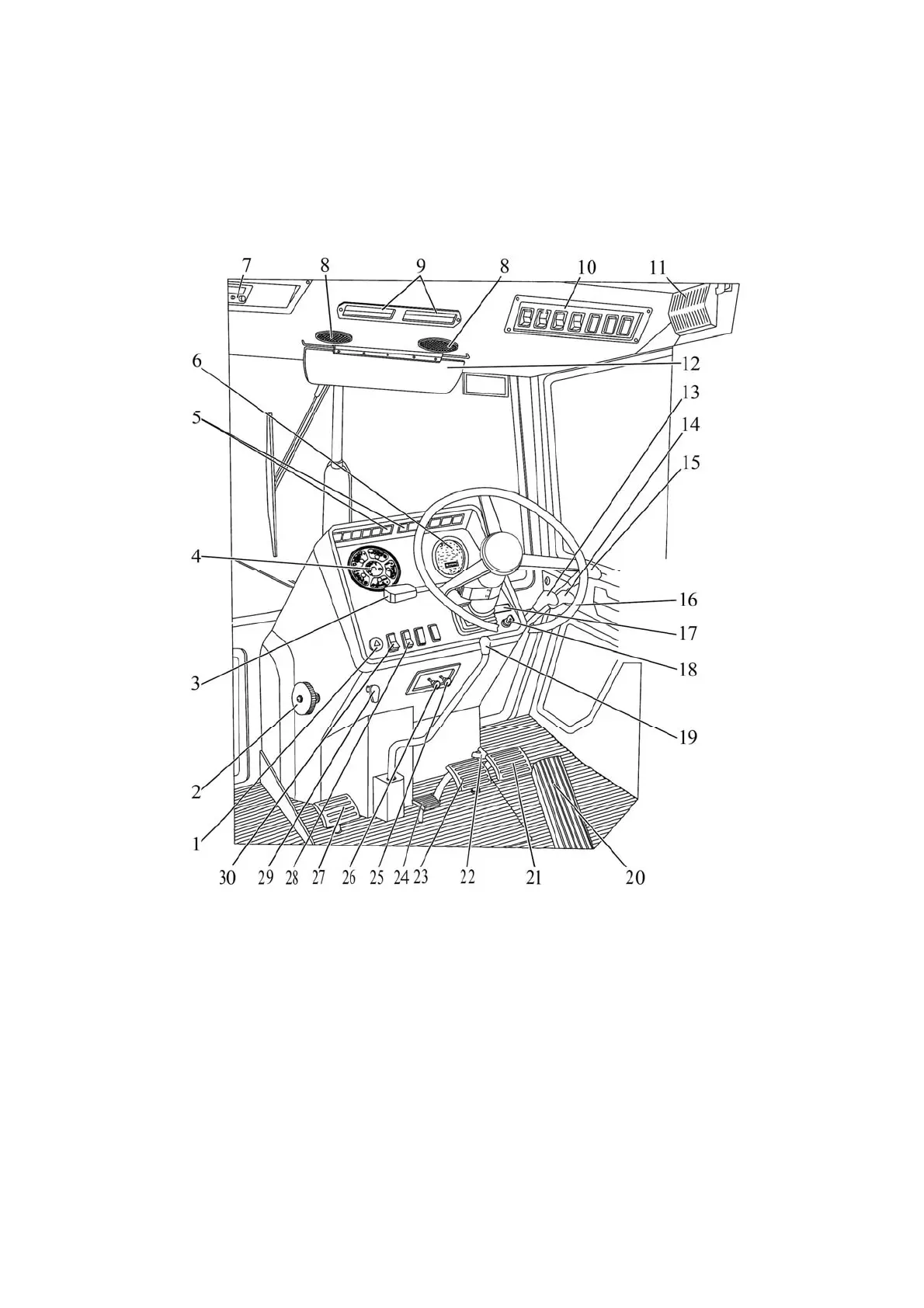

1 – emergency flashing switch; 2 – hand wheel to control engine water radiator wind
shutter; 3 – multifunctional underwheel switch; 4 – combination of instruments; 5 – pilot lamps
unit; 6 – tachospeedometer; 7 – place for radio receiver (car stereo) installation; 8 – deflectors;
9 – recirculation shutters; 10 – key switches unit of upper dashboard; 11 – cab lamp with
switch; 12 – sun visor; 13, 14, 15 – levers to control HLL distributor outlets (remote cylin-
ders); 16 – steering wheel; 17 – tachospeedometer control panel; 18 – starter and instruments
switch; 19 – lever to control gearbox gear reduction unit; 20 – pedal to control fuel supply;
21 – pedal to control right service brake; 22 – connecting plate of brake pedals; 23 – pedal to
control left service brake; 24 – pedal to control rear axle differential lock (with HSC installed);
25 – handle for steering column tilt fixation; 26 – engine stop handle (red color); 27 – clutch
control pedal; 28 – windscreen washer switch; 29 – handle to control rear axle differential lock
(with HPS installed); 30 – central light switch.
Figure 2.1.1 – Layout of tractor instruments and controls
Note – On tractors with canopy frame or canopy base on the basis of a universal
cabin items 7, 8, 9, 10, 11, 12, 28 (figure 2.1.1) are not available.
