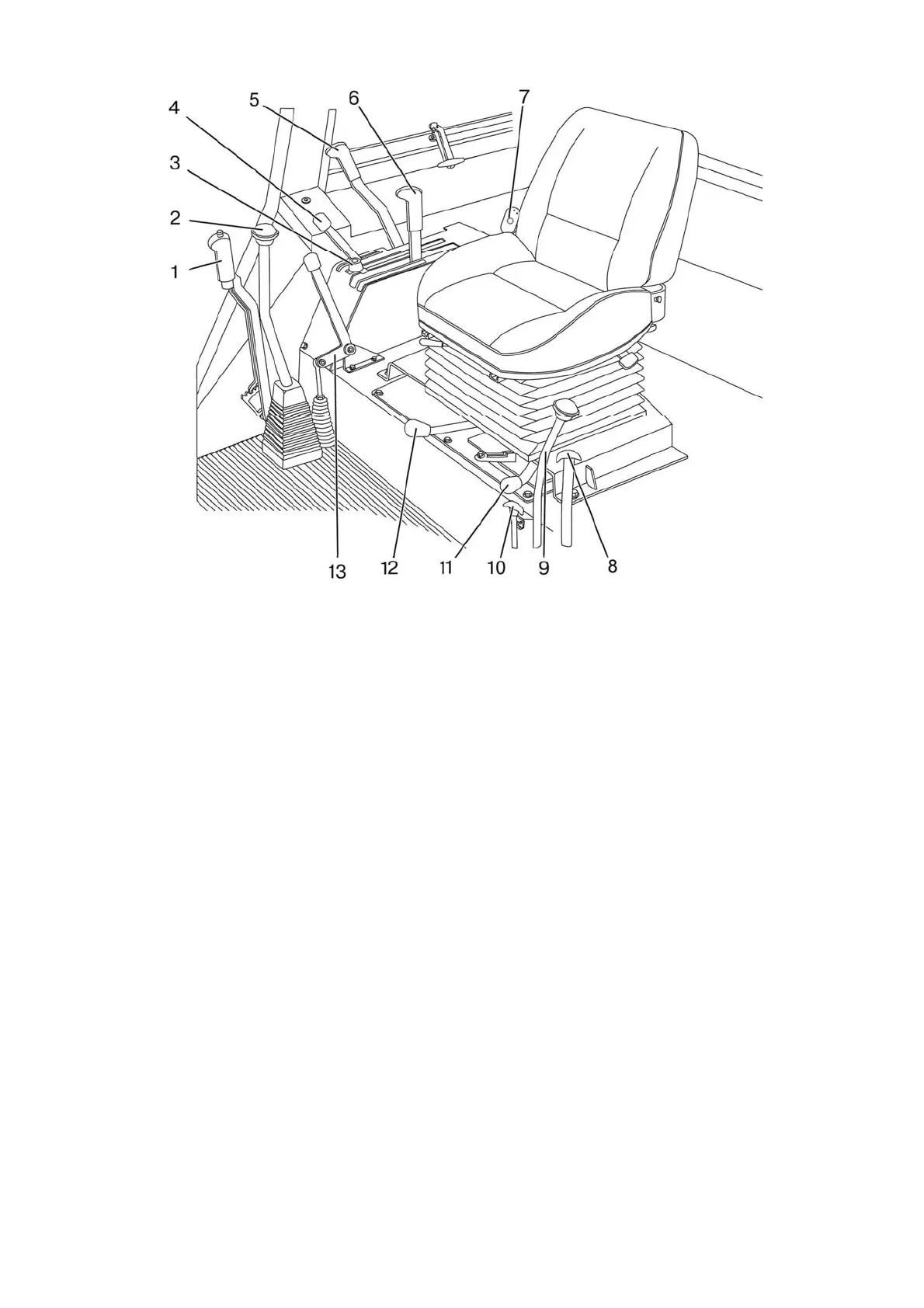

1 – parking brake lever; 2 – gear shifting lever; 3 – stroke limiter of draft control lev-
er; 4 – fuel supply control lever; 5 – PTO control lever; 6 – handle to control draft control
(RLL); 7 – battery disconnect switch; 8 – creeper ranges shift rod (if installed); 9 – creeper
gears shift lever (if installed); 10 – hydraulic hook grips control handle; 11 – lever to shift
PTO from continuous drive to ground-speed drive; 12 – lever for locking linkage mechanism
in lifted position; 13 – lever to control FDA drive.
Figure 2.1.2 – Layout of tractors controls
Against order your tractor can be completed with the following equipment:
- instead of a heater fan only fan can be installed;
- instead of a mechanical gear reduction unit a synchronized gear reduction unit can
be installed;
- instead of synchronized or mechanical gear reduction unit a reverse-reduction gear
can be installed;
- instead of handles to control HLL outlets against order a joystick and a lever to con-
trol HLL outlets can be installed;
- installation of a creeper is possible;
- on tractors “BELARUS-82.1” instead of FDA 72 FDA 822 can be installed;
- on tractors “BELARUS- 80.1/82.1” instead of HSC HPS can be installed.
