Belarus 820 - Switches and Selectors of Instrument Board of Tractors with Canopy Frame or Canopy Base on the Basis of Small Cabin; Gauges and Tachospeedometer of Tractors with Canopy Frame or Canopy Base on the Basis of a Small Cabin

80-0000010B OM
77
ATTENTION: TRACTORS “BELARUS-80.1/82.1” WITH CANOPY FRAME OR TANE
BASE ON THE BASIS OF A SMALL CABIN ARE NOT INTENDED FOR SUPPLIES IN THE
COUNTRIES OF CUSTOMS UNION.
2.28.2 Switches and selectors of the instrument dashboard of tractors with canopy
frame or canopy base on the basis of small cabin

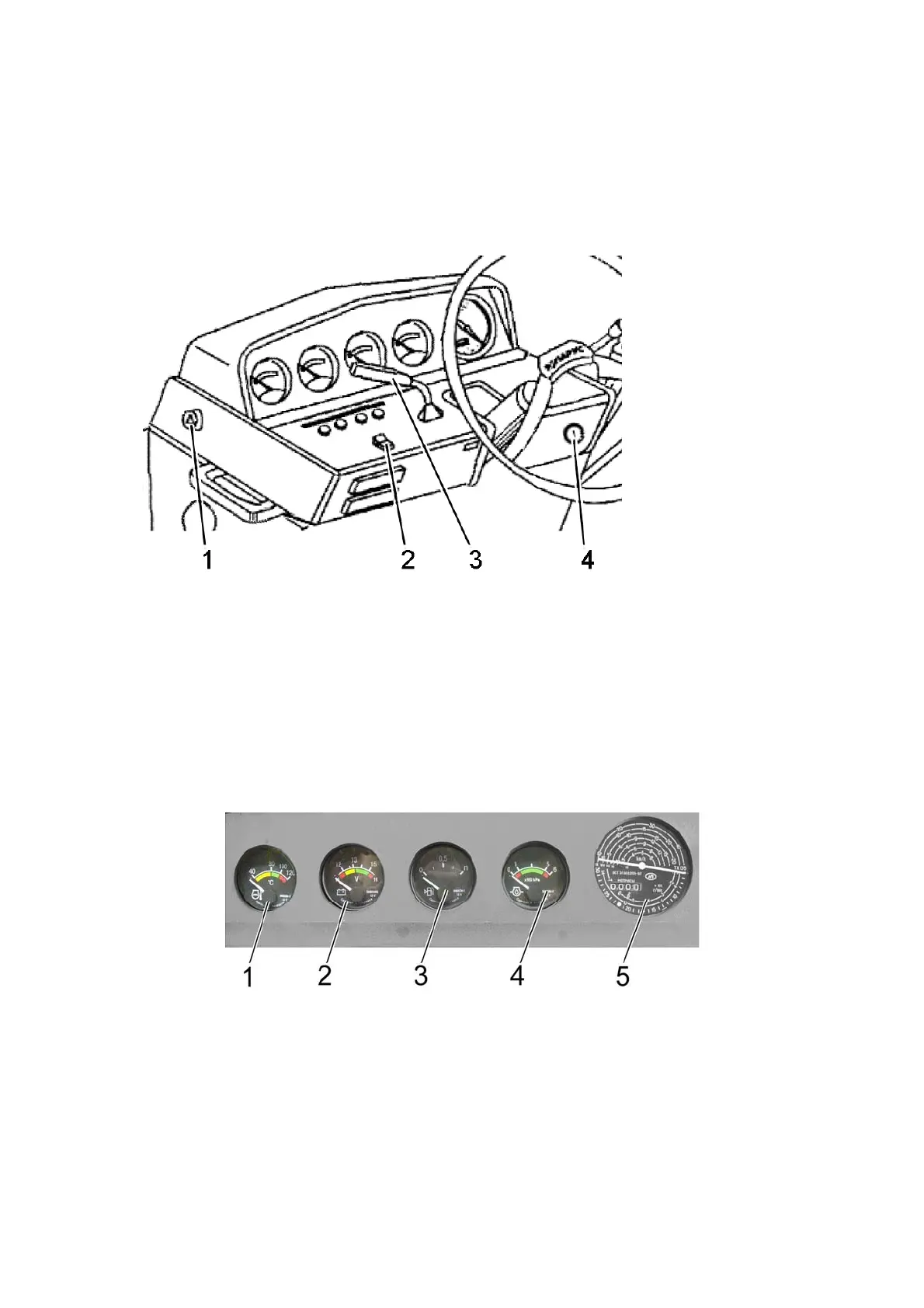

Switches and selectors of the instrument board are shown in figure 2.28.2
1 – emergency light flashing switch; 2 – central light switch; 3 – multifunctional un-
derwheel switch; 4 – starter and instruments switch.
Figure 2.28.2 – Switches and selectors of the instrument dashboard.
Description and operation principle of switches and selectors, indicated in figure 2.28.2, are
similar to switches and selectors of tractors with a universal cabin and are given in subsection 2.2
“Switches of the instrument dashboard”.
2.28.3 Gauges and tachospeedometer of tractors with canopy frame or canopy
base on the basis of a small cabin
1 – engine coolant temperature indicator; 2 – voltage indicator; 3 – fuel level in tank
indicator; 4 – indicator of oil pressure in the engine lubrication system; 5 – tachospeedom-
eter.
Figure 2.28.3 – Gauges and tachospeedometer
2.28.3.1 Engine coolant temperature indicator 1 (figure 2.28.3) has three areas:
- working – from 80 to 100С (green color);
- information – from 40 to 80С (yellow color);
- emergency – from 100 to 120С (red color).
