2.28 Distinctive features of instruments and controls of tractors “BELARUS-
80.1/82.1” with canopy frame or canopy base on the basis of a small cabin
2.28.1 Layout of controls and instruments of tractors with canopy frame and canopy base
on the basis of small cabin

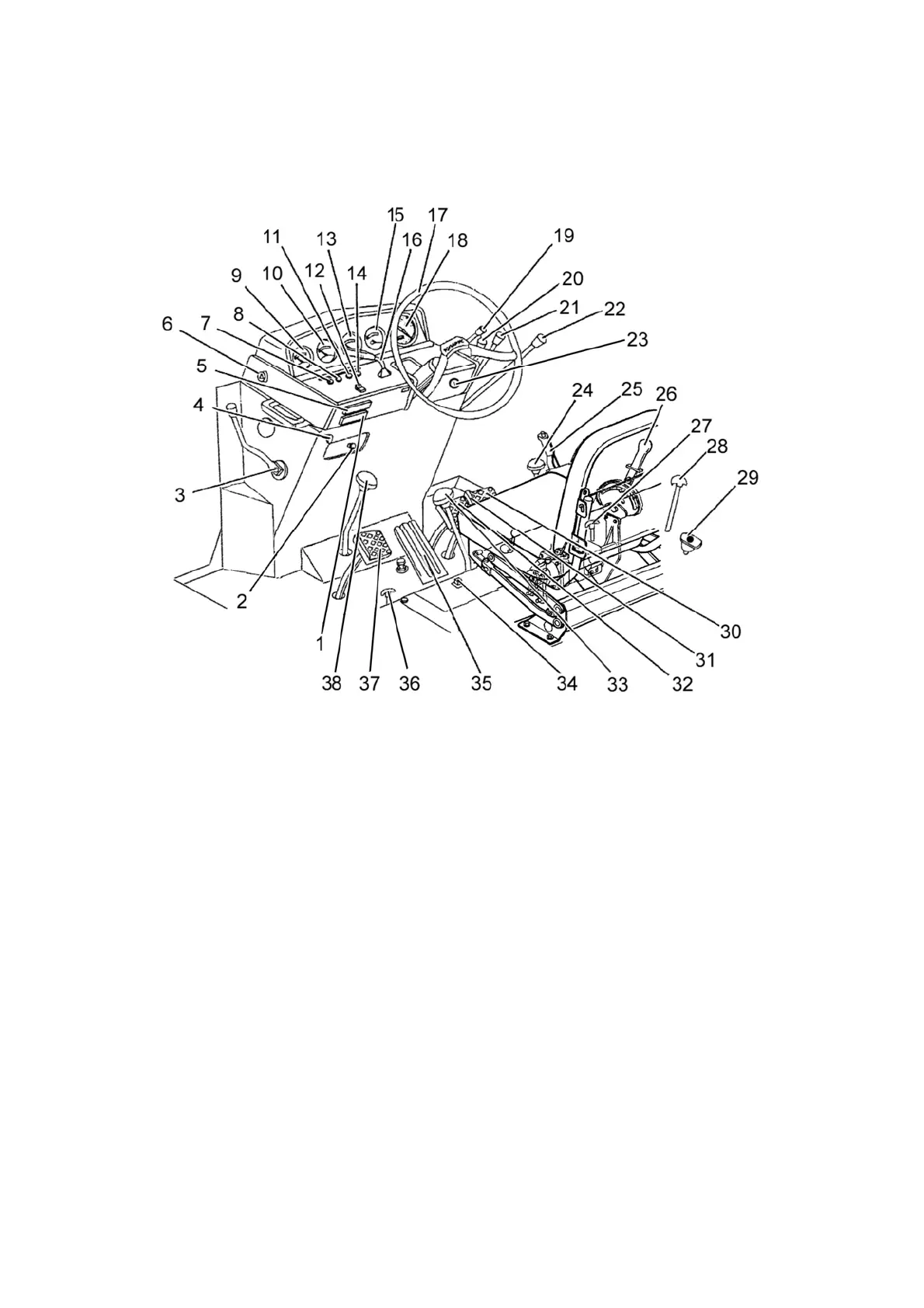

Controls and instruments located in the tractor cabin, are shown in figure 2.28.1
1 – lower block of cut-out fuses; 2 – engine stop handle; 3 – fuel feed control lever;
4 – handle to control differential lock; 5 – upper block of cut-out fuses; 6 – emergency flasher
switch; 7 – warning lamp of emergency oil pressure in the engine lubrication system (red col-
or); 8 – warning lamp of air filter clogging (red color); 9 – engine coolant temperature indicator;
10 – voltage indicator; 11 – pilot lamp-indicator of turn indicators (green color); 12 – central light
switch; 13 – fuel level in tanks indicator; 14 – pilot lamp-indicator of upper beam (blue color);
15 – oil pressure in the engine indicator; 16 – multifunctional underwheel switch; 17 – steer-
ing wheel; 18 – tachospeedometer; 19 – lock handle of tilt angle position of the steering column;
20, 21 – handles to control the HLL distributor outlets (remote cylinders); 22 – handle to control the
distributor (Р80-3/4-111(222), РП70-1221.1С) outlet or RLL (Р80-3/1-222, РП70-890.1) control;
23 – starter and instruments switch; 24 – PTO control lever; 25 – parking brake lever; 26 – handle
to operate draft control (RLL); 27 – lever to control FDA drive; 28 – lever to lock linkage mecha-
nism in lifted position; 29 – “ground” switch; 30 – right service brake control pedal; 31 – brake pe-
dal connecting plate; 32 – left service brake control pedal; 33 – gear shifting lever; 34 – arm to shift
PTO (continuous/ground-speed); 35 – fuel feed control pedal; 36 – handle to control hydraulic
hook grips; 37 – clutch control pedal; 38 – control lever of gearbox gear reduction unit.
Figure 2.28.1 – Controls layout of tractors with canopy frame or canopy base on the
basis of a small cabin
Note: Description and operation principle of instruments and controls, which are not indicated in
subsection 2.28, are similar to the controls of tractors with a universal cabin and are given in the previous
subsections.
