Belarus 820 - Page 240

80-0000010B OM
240

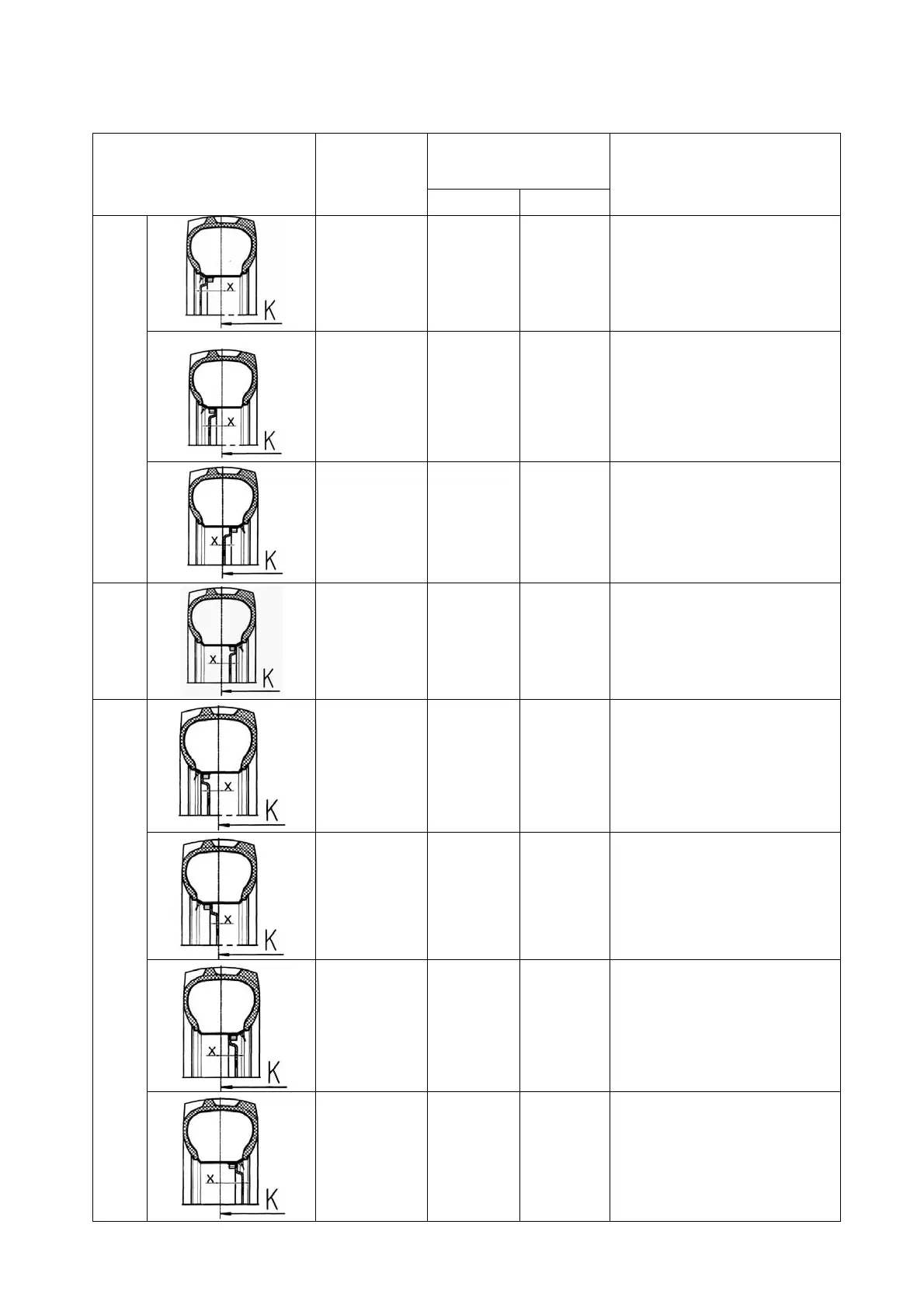

Table 4.2.8 – Changing front wheel track of tractor with FDA 822-2300020-02/04 in-
stalled
Variants of mounting the
plate and the rim
Disk offset
Х, mm
Tractor trac
k
К, mm
(
t
y
re 360/70R24
)
Description of mounting
method
Short beam Long beam
Standard plate mounting with rim dis-
placement
+140 1415 1535
Main position. The inner
surface of the plate mates
with the gear group flange,
and the disk is located
from the outer side of the
wheel support
+90 1515 1635
Ex-works condition.
The rim is displaced relat-
ing to the plate. The inner
surface of the support ma-
tes with the plate.
-18 1735 1855
The rim is turned by 180°.
The plate mates with the
support inner surface.
-68 1835 1955
The rim is turned by 180°.
The plate mates with the
support outer surface.
Displacement of the plate and the rim
+56 1585 1705
The plate mates with the
support outer surface.
+6 1685 1805
The plate mates with the
support inner surface.
-102 1900 2020
The rim is turned by 180°.
The plate mates with the
support inner surface.
-152 2000 2120
The rim is turned by 180°.
The plate mates with the
support outer surface.
