80-0000010B OM
298

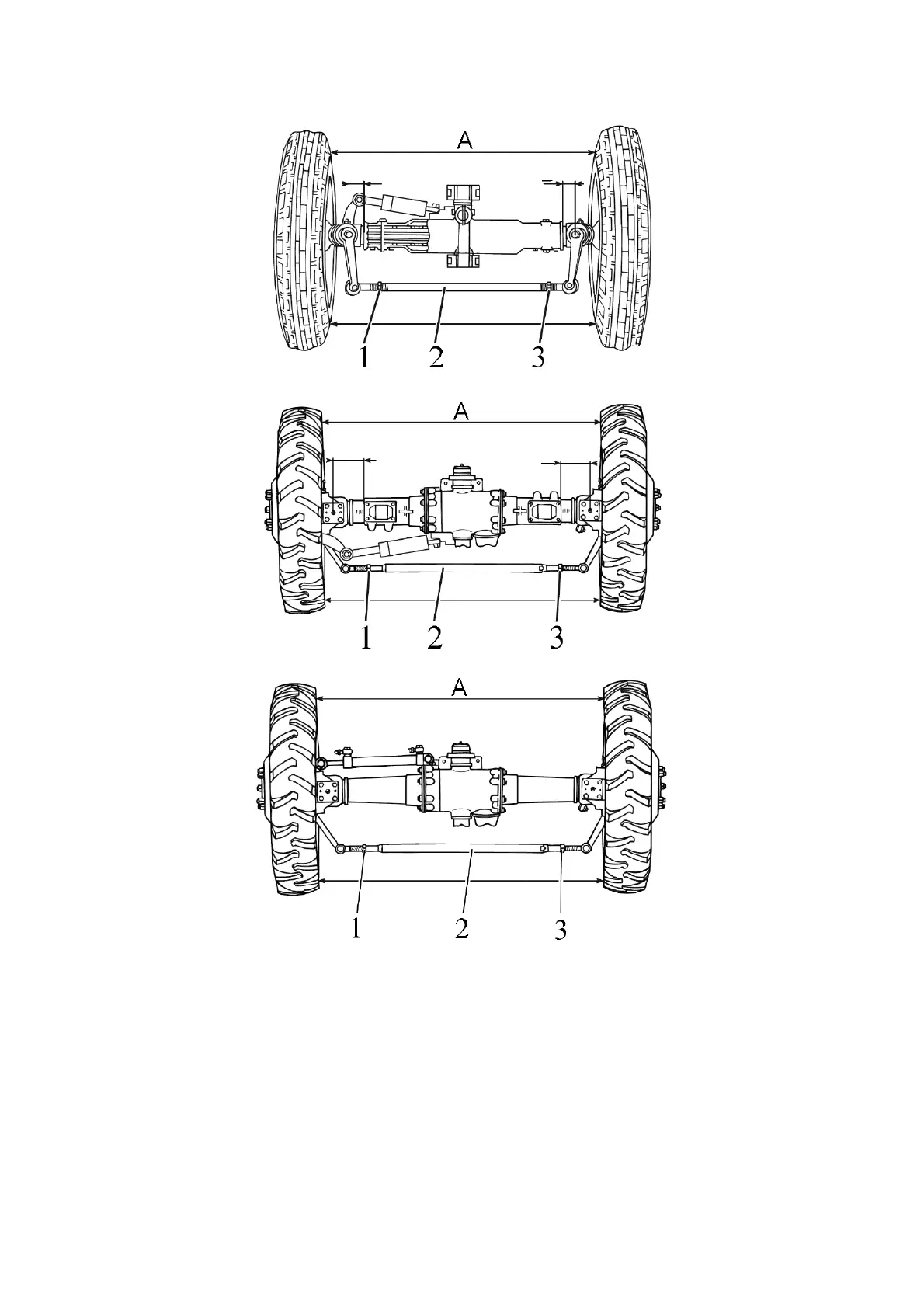

6.4.3.4.2 Check / adjustment of front wheels’ toe-in on tractors with HSC
a) for tractors with non-driving front axle
b) for tractors with FDA (with bevel wheel gear groups)
c) for tractors with FDA (with planetary-spur wheel gear groups)
1, 3 – lock nut; 2 – adjusting tube of steering link.
Figure 6.4.17 – Diagram of front wheels’ toe-in adjustment
Adjustment is carried out as follows:
1. Set the necessary tyre pressure according to subsection 4.2.8 “Selecting of opti-
mal inner pressure in tyres depending on operational conditions and load on tractor axles,
instructions for use of tyres” of section 4 “Intended use of tractor”.
2. Set the front wheels in straightforward position by way of driving the tractor
straight ahead for at least 3 meters along the horizontal level ground with a hard surface
and then stopping. Engage the parking break to avoid tractor movement.
B
B
B
B
C
C
C
