80-0000010B OM
42

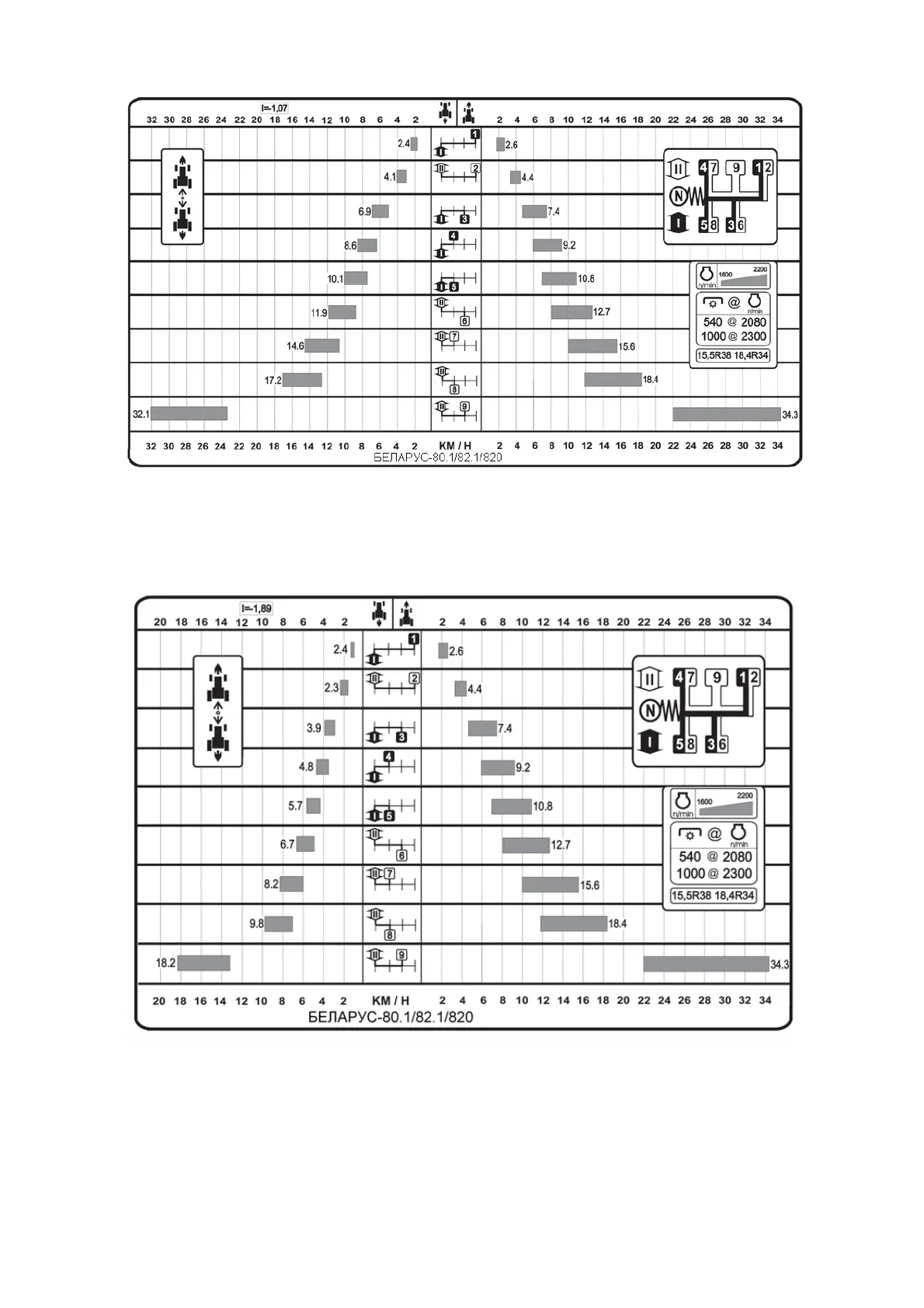

Figure 2.13.4 The velocity diagram of tractors “BELARUS-80.1/82.1” on rear tyres
15.5R38 and “BELARUS-820” on rear tyres 18.4R34(F-11), equipped with the gearbox with
reverse-reduction gear (gear ratio 1,07)
The velocity diagram table of tractors “BELARUS-80.1/82.1/820” equipped with
the gearbox with reverse-reduction gear (gear ratio 1,89) is mounted on the right glass of the
cabin and is shown in figure 2.13.5.
Figure 2.13.5 The velocity diagram of tractors “BELARUS- 80.1/82.1” on rear tyres
15.5R38 and “BELARUS-820” on rear tires 18.4R34(F-11), equipped with the gearbox with
reverse-reduction gear (gear ratio 1,89)
Upon request the mechanical creeper MHU-05 (МХУ-05) can be installed on your tractor or
the hydraulic creeper GHU-05 (ГХУ-05), which allows to reach additional low gears of forward
movement and of reverse. The peculiarities of tractor with a creeper are given in subsec-
tion 2.27 “Creeper control”.
