ENGINE COMPARTMENTS

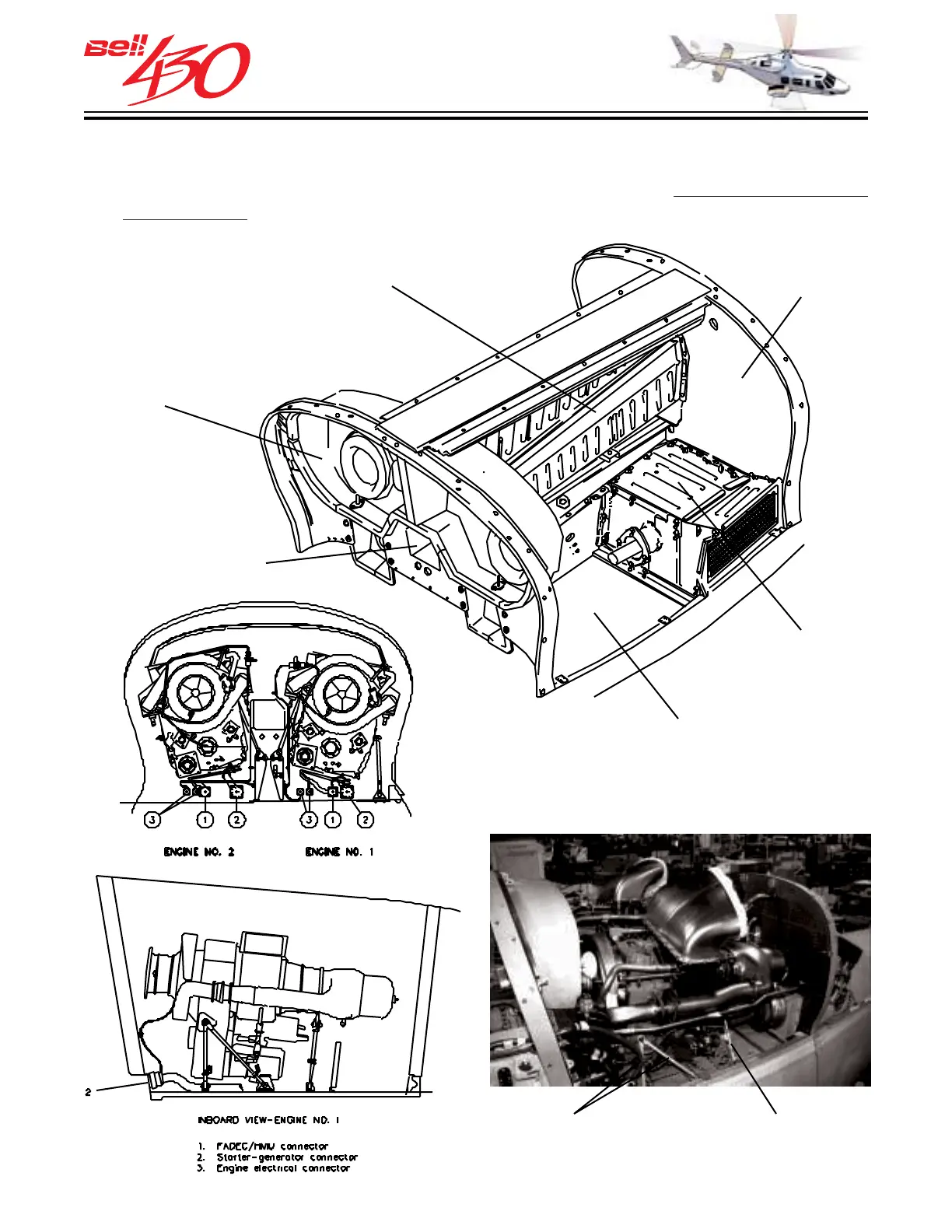

The engine compartments are located on top of the aft fuselage section. Each engine
is attached by three stainless steel bipod mounts, which feature
replaceable bearings
and master shims for proper alignment. Each forward bipod pair supports one engine
gearbox, while the aft bipods support their respective engines' turbine to combustor
flange.
AFT FIREWALLCENTER FIREWALL
FORWARD FIREWALL
TAIL ROTOR DRIVE
TUNNEL
OIL COOLER
BLOWER
COMPARTMENT
ENGINE DECK
AFT BIPOD
NO. 1 ENG
OUTBOARD
FWD. BIPOD
