PRODUCT DATA JANUARY 2003

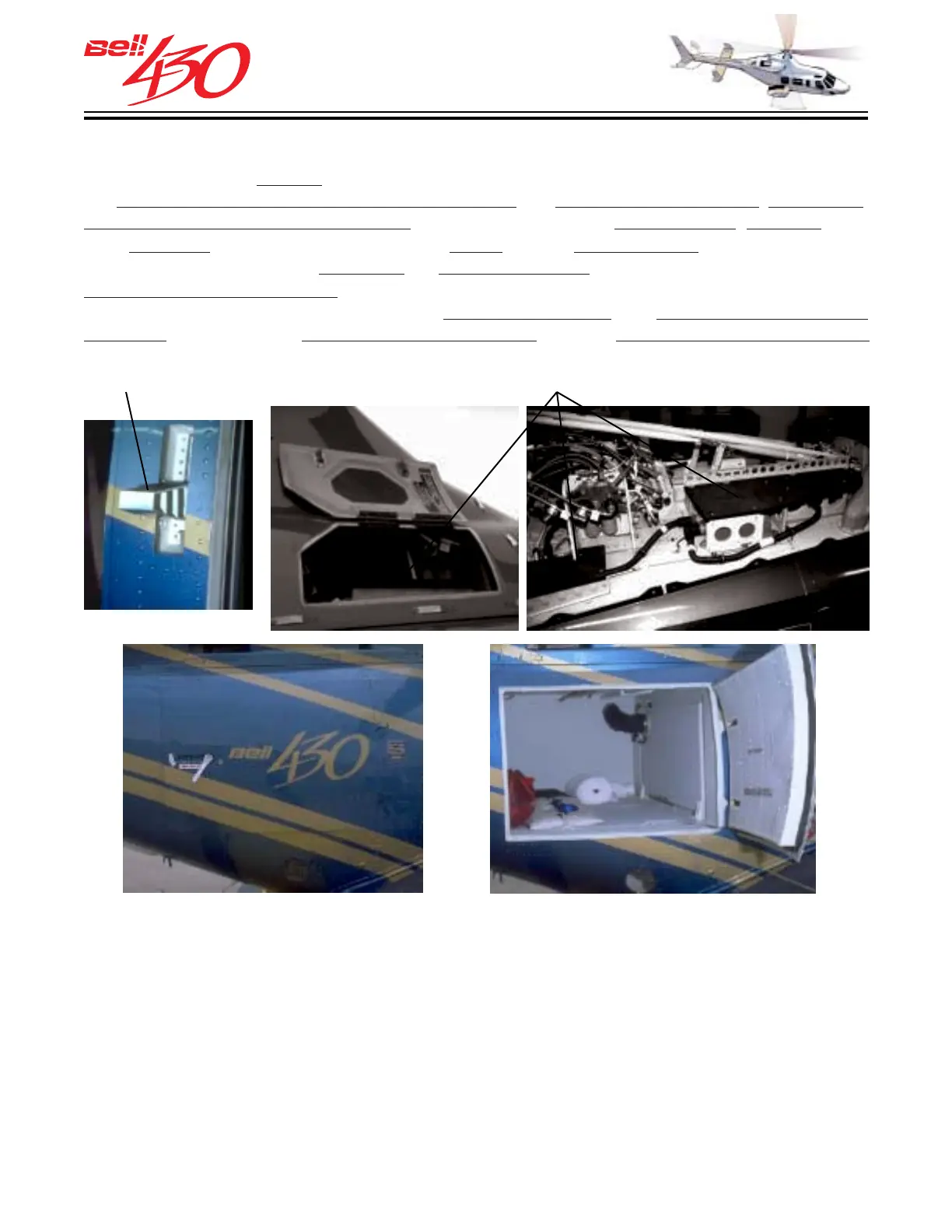

The roof of the cabin includes a space between the main longitudinal beams to attach
the transmission pylon mounts. The bottom of the transmission may be accessed through
a removable closeout panel in the headliner. Maintenance platforms are located on
the cabin roof just above each passenger door, and may be reached by way of the wing
surface and convenient fold out steps located between the cabin windows. A kick in
step is found aft of each rear cabin window for easy access to the engine compartments.
The large baggage area has an external door on the right side of the helicopter just
behind the wing. It has a handle and keyed lock which are identical to those on the
cabin doors. There is a hinged / removable partition at the front of the baggage
compartment which may be lifted up and locked in position, or removed when large
cargo is transported.
SIDE STEP WORK PLATFORMS
AFT FUSELAGE
The aft fuselage is spliced to the forward fuselage at the interface bulkhead. It includes
the
rear passenger seat /main fuel cell enclosure, the baggage compartment, aft electric,
and lower equipment compartment, and mounts for the transmission, engines, and
their cowlings, along with mounts for the wings and the aft cross tube of the skid landing
gear. The fuel cells are
enclosed by fiberglass faced honeycomb panels and are
surrounded and protected by a high strength box type rollover bulkhead. The aft rollover
bulkhead incorporates mounts for the
aft pylon supports, the forward engine firewall
and deck, along with the aft wing attach hard points, and the aft cross tube attach fittings.
