PRODUCT DATA JANUARY 2003

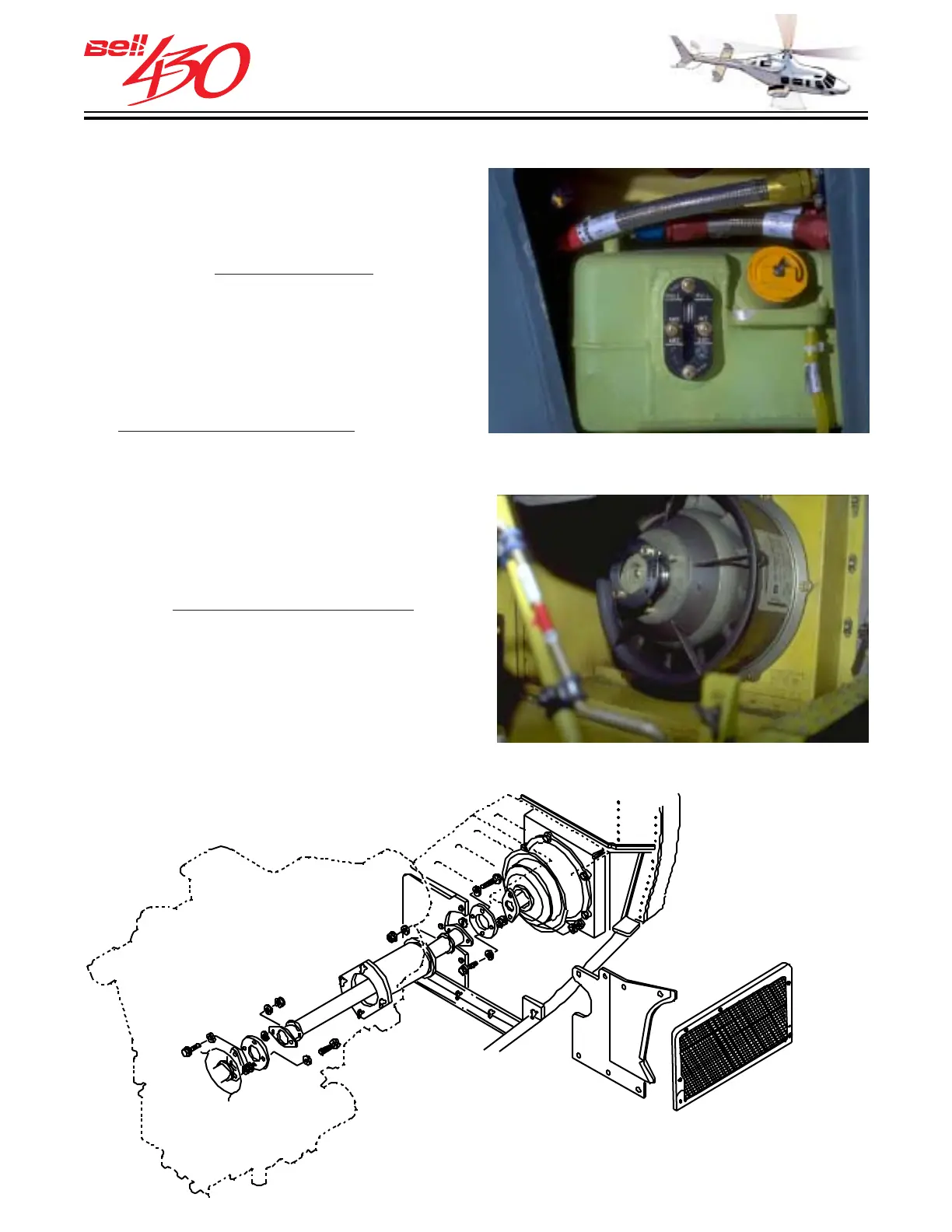

The oil cooler blowers are mounted at the
aft end of
each engine compartment. Each
has its' own inlet for cooling air. The high-
speed blowers are driven from the rear main
power take off of each engine. The blowers
are isolated from the engine compartment
by their own firewalls.
OIL COOLER BLOWER
OIL TANKS
The engine oil tanks are located on the front
side of the forward firewall, one on each
side, just below the engine air inlets. Each
tank has a fluid level indicator and filler
cap which are
easily accessible through a
hinged panel, for inspection and servicing.
Each system has a capacity of 6.44 quarts
(6.09 liters). A temperature bulb and
pressure transducer in each oil subsystem
provides information to the IIDS. An oil
pressure switch on each engine activates
the
warning/caution indicator of the IIDS.
