PRODUCT DATA JANUARY 2003
The Dual Pilot IFR with Single AFCS/
KFC500 configuration consists of a
completely integrated, digital, three-axis
(pitch, roll, and yaw) dual electronic
channel flight control system, with yaw
damper,
coupled Flight Director, and a four
tube Electronic Flight Instrument System
(EFIS). The Single AFCS installation
replaces the Attitude Indicator and HSI with
four four inch EFS-40 displays, and then
adds the KFC-500 Flight Control System.
System components and architecture are

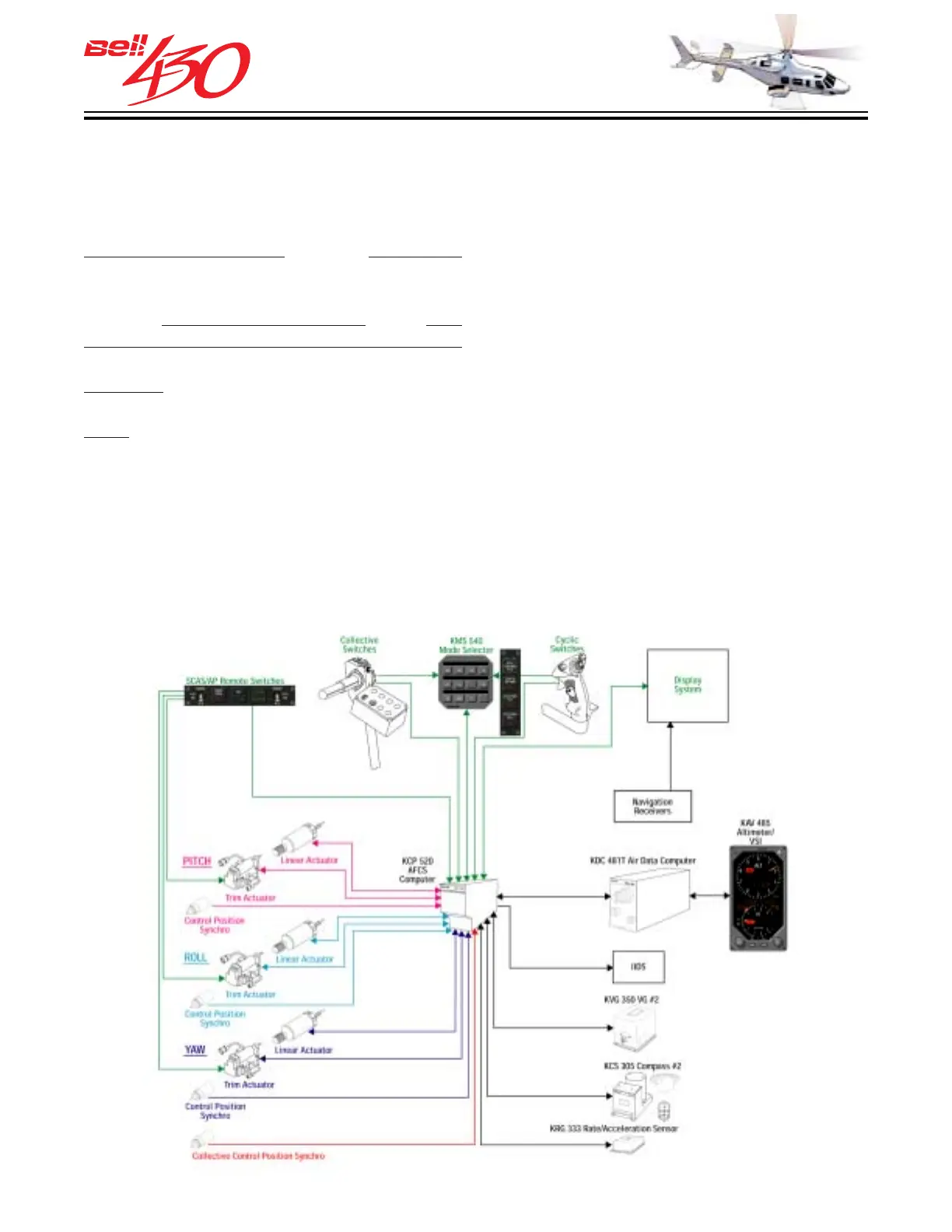

shown in the block diagram below. Detailed
system description and operational
information may be found in the attached
document; link(KFC500PG-single.PDF.)
DUAL PILOT IFR with Single AFCS/KFC500
EFS-40 (FOUR TUBE) with Flight Director
System Components
KFC 500 Flight Controls
KCP 520 Flight Computer
KLA 575 Linear Actuators
KSA 572 Trim Actuators
KRG 333 Accelerometer/Rate Gyro
Position Transducers
KAD 480 Air Data System
Iron Gyros - 4 Tube EFIS
Operating Parameters:
3-Axis: Pitch, Roll and Yaw
SCAS Engage on ground
Autopilot engage above 50 knots
Modes: HDG, NAV, APR, ALT HOLD/SELECT,
VS, IAS, VNAV
