PRODUCT DATA JANUARY 2003

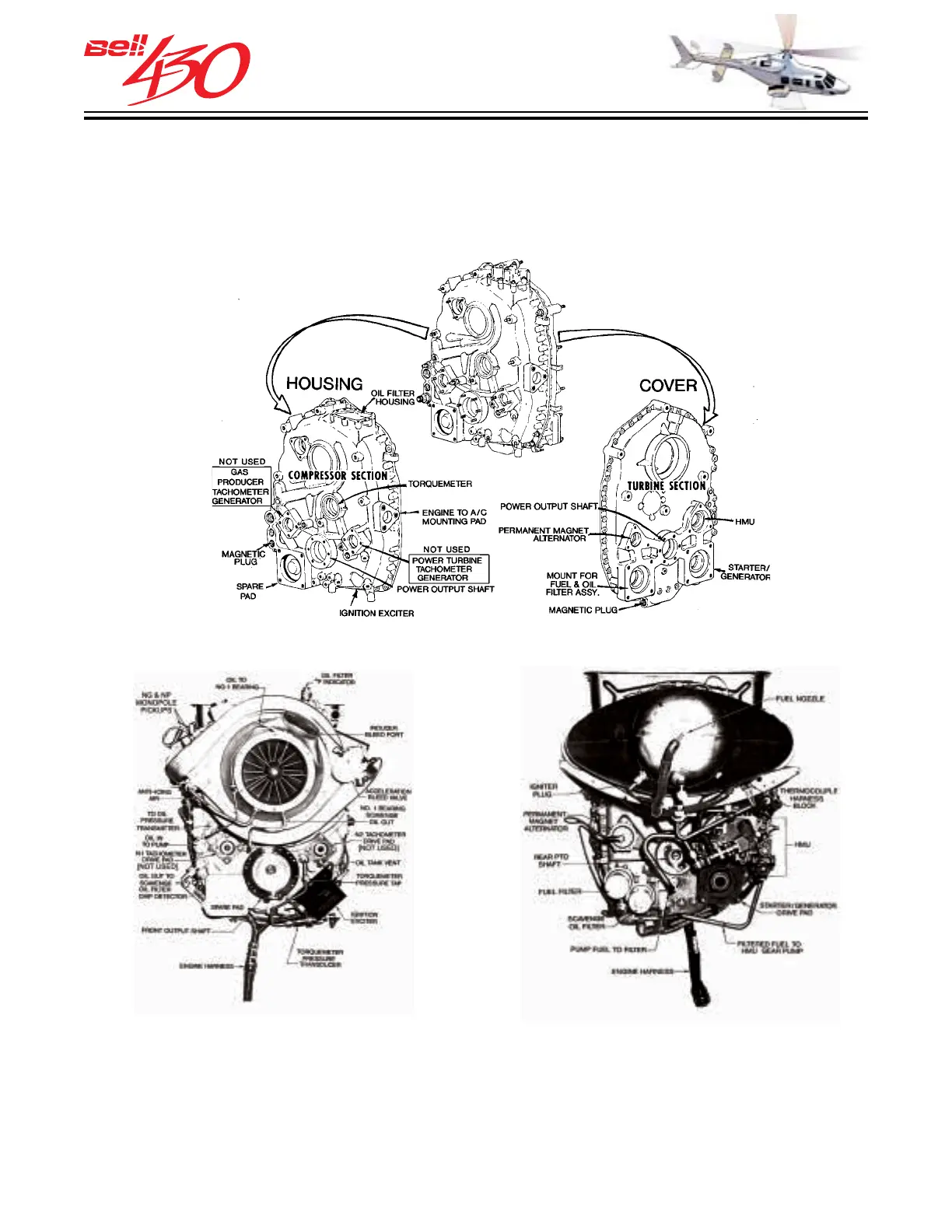

ACCESSORY GEARBOX SECTION
The accessory gearbox section includes a gearbox housing (FRONT or COMPRESSOR
side), a gearbox cover (REAR or TURBINE side), gas producer gear train, power
turbine gear train, oil pump assembly, oil filter, and the necessary oil tubes to provide
pressure and scavenge oil for the system.
