PRODUCT DATA JANUARY 2003
ENGINE OIL SYSTEM
A separate and independent oil system is
installed for each engine. Each system is
comprised of a cooler, an oil tank, two
engine chip detectors, and an engine
mounted oil filter. Cooling of engine oil is
accomplished by two engine driven axial
blowers.

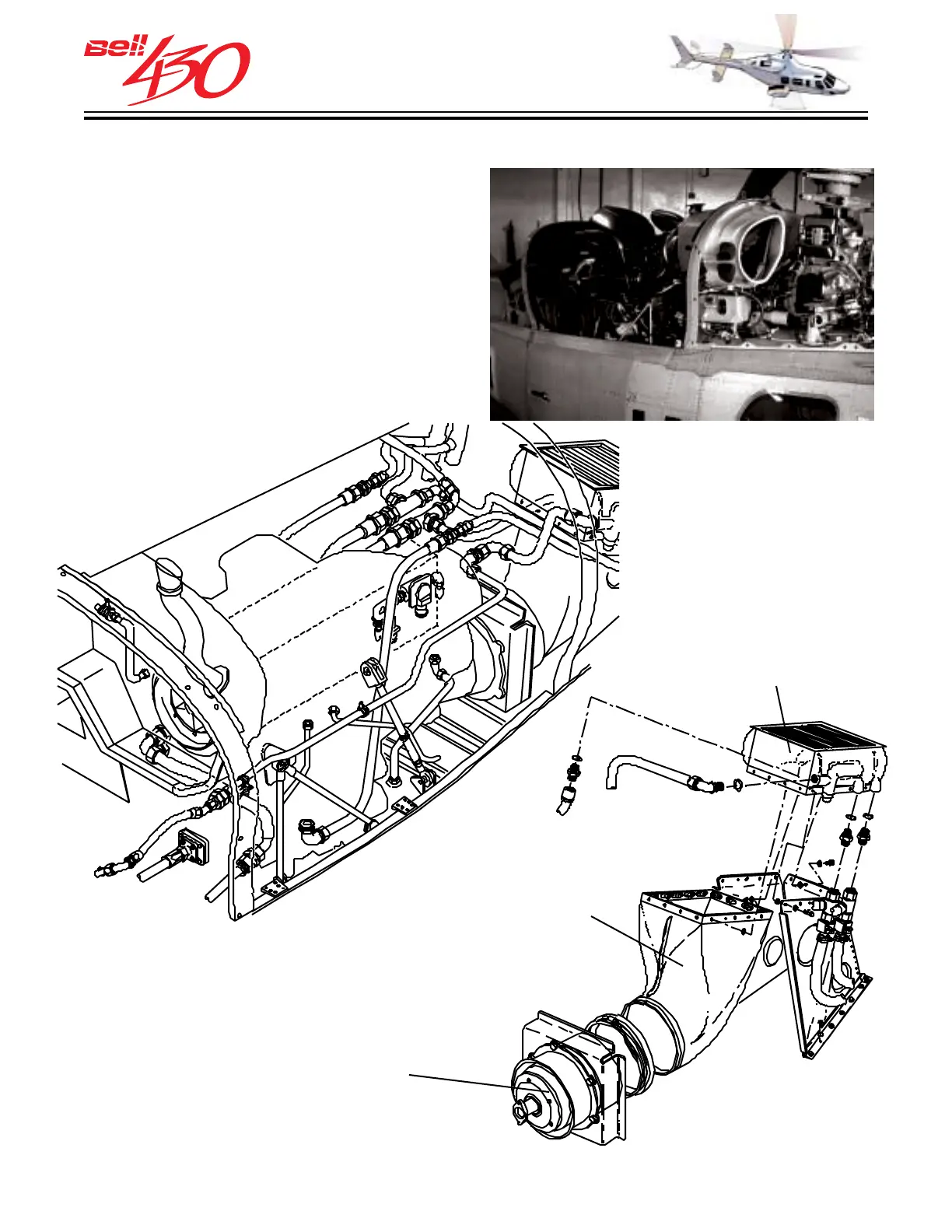

HEAT
EXCHANGER
TRANSITION
DUCT
SHAFT
DRIVEN
BLOWER
EACH ENGINE
HAS INDEPENDENT
OIL SYSTEMS
