PRODUCT DATA JANUARY 2003
1. Input pinion gear (2)
2. Outboard gear assembly (2)
3. Freewheeling clutch (2)
4. Spiral bevel collector gear
5. Collector gear shaft
6. Tail rotor drive gear
7. Oil pump drive gear
8. Sun gear
9. Pinion gear (6)
10. Ring gear
11. Planetary carrier
12. Main rotor mast
13. Hydraulic pump drive (2)

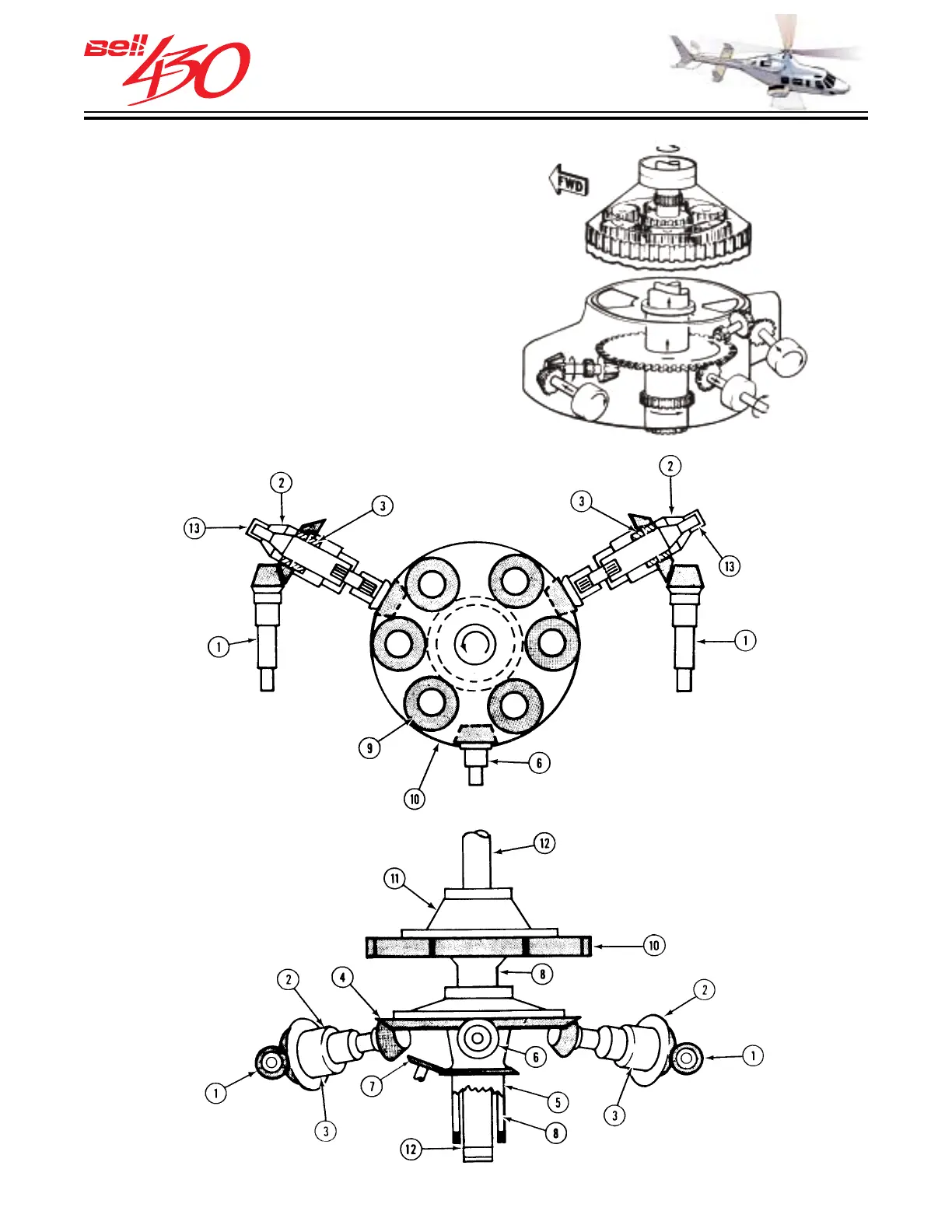

TRANSMISSION SCHEMATIC
