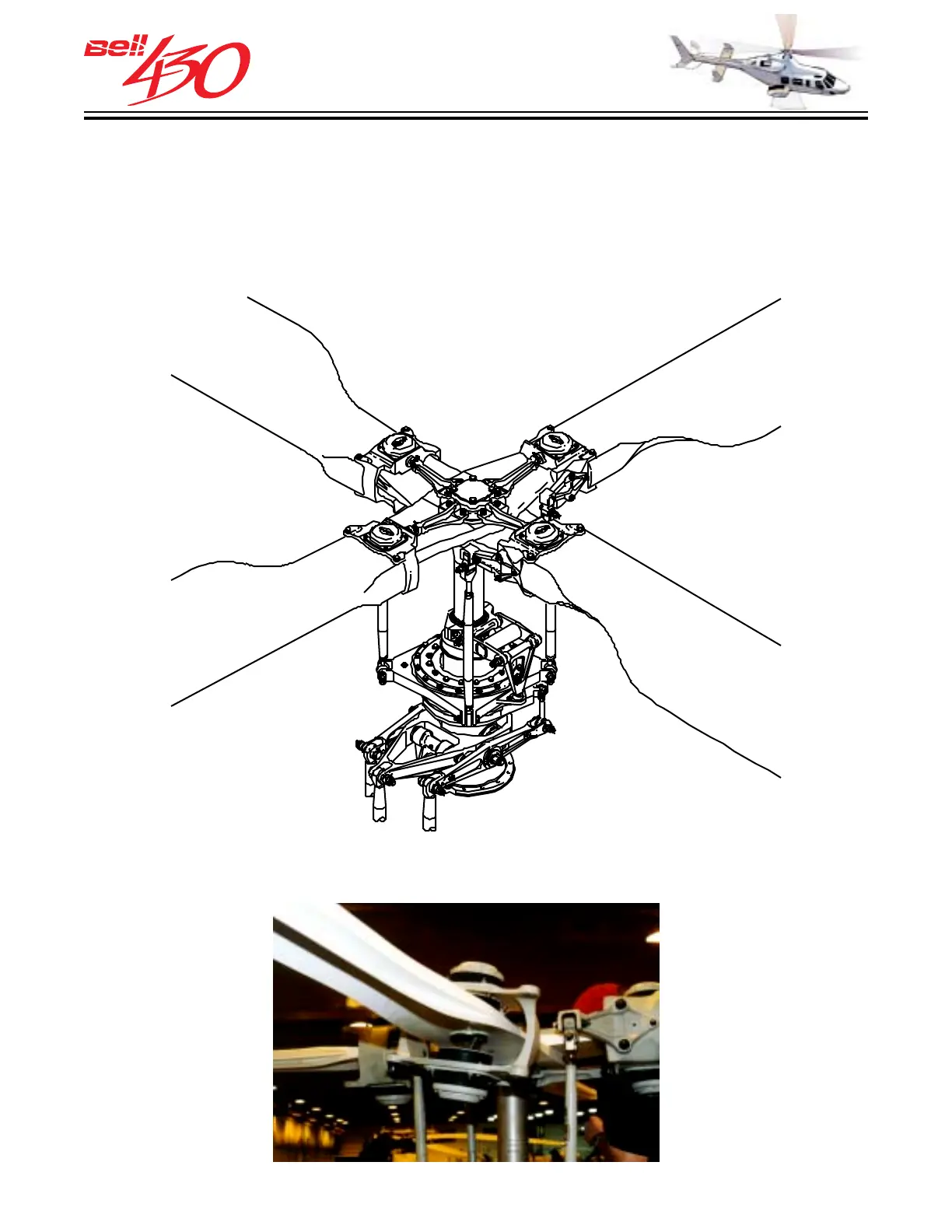

Coning and flapping stops are provided to prevent yoke damage in gusty wind conditions.
Anti-fretting pads and coatings are used to improve durability. The pair of yokes are
bolted to an integral flange on the mast. This arrangement is simple and makes it easier
to maintain the quality of the ride.
FLANGED MAST
STACKED YOKES - PITCH CHANGE ADAPTER &
PITCH HORN
