PRODUCT DATA JANUARY 2003

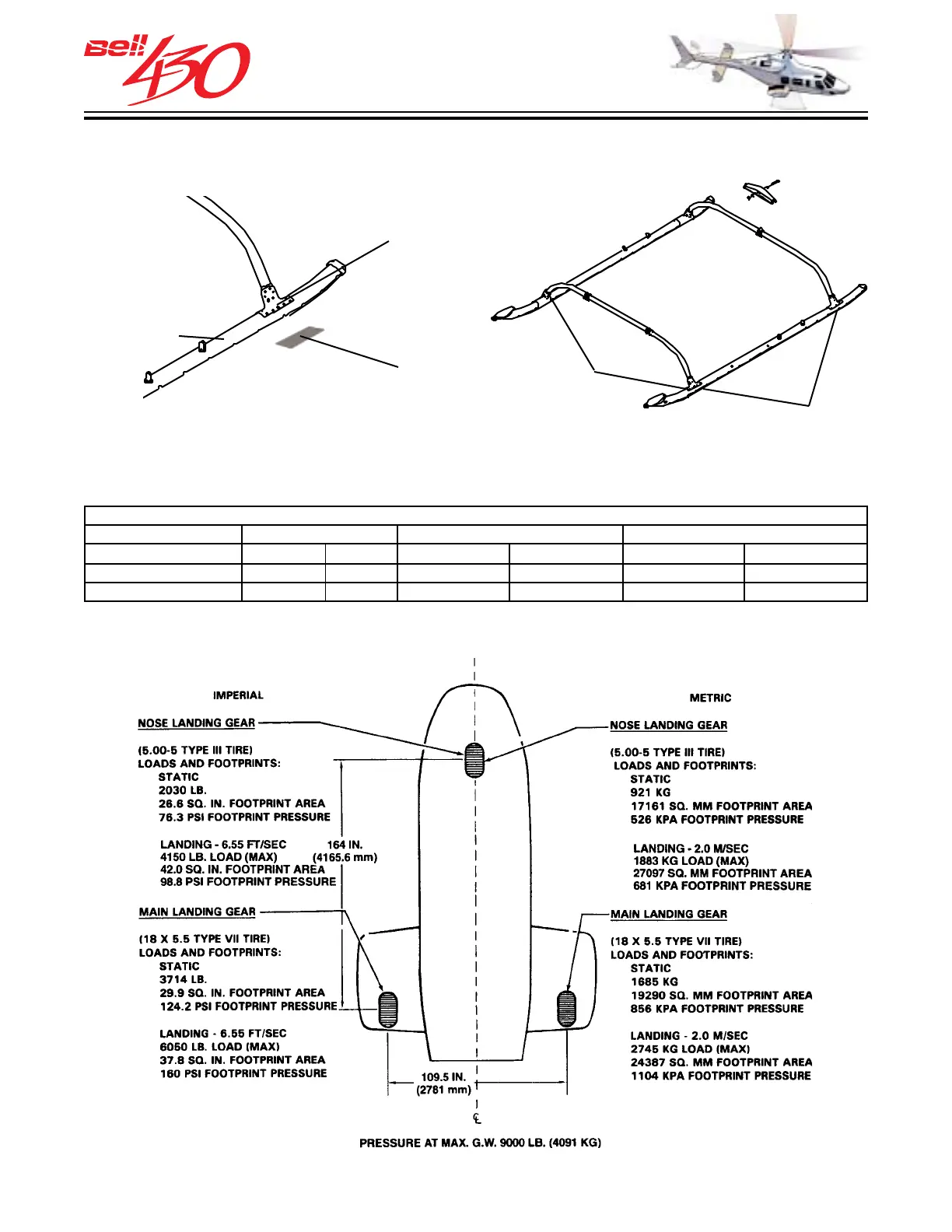

SKID GEAR STATIC LOADING
4 INCHES
102 MILIMETERS
DIAMETER
8 INCHES
203 MILIMETERS
LENGTH
100 INCHES
2.54 METERS
CONTACT AREA
D/2 X 1½ L =
24 SQ. INCHES
155 SQ. CENTIMETERS
101 INCHES
2.57 METERS
SKID LA NDING GEAR STATIC LOA DING
MAX GROSS WEIGHT LOADING CONTACT AREA CONTA CT PRESSURE
9000 LB/4082 KG FORWARD AFT FORWARD AFT FORWARD AFT
ENGLISH 2688 LBS 6312 LBS 48 SQ. INCHES 48 SQ . INCHES 56 PSI 132 PSI
METRIC 1219 KG 2863 KG 310 SQ . CM. 310 SQ. CM. 3.9 4 KG/S Q. CM. 9.28 KG/SQ . CM.
HELIPORT LOADING DATA
WHEEL GEAR STATIC LOADING
