PRODUCT DATA JANUARY 2003
W/C/A MESSAGES
COMPOSITE PAGE DATA
[UPPER DATA BOX]
WARNING CAUTION ANNUNCIATOR
DISPLAY
[UPPER DIGITAL DATA ROW-FROM LEFT TO
RIGHT]
1. NO. 1 & NO. 2 ENG OIL PRESS [PSI]
2. LEFT & RIGHT FUEL QTY [LBS]
3. OPTIONAL AUX FUEL [LBS]
4. TRANSMISSION OIL PRESS [PSI]
[LOWER GRAPHIC DATA ROW-LEFT TO RIGHT]
1. ENGINE ONE NP
The WARNING, CAUTION, and ADVISORY
messages available for all display pages
will be described as a GROUP immediately
following the descriptions of the SYSTEM
data displays.

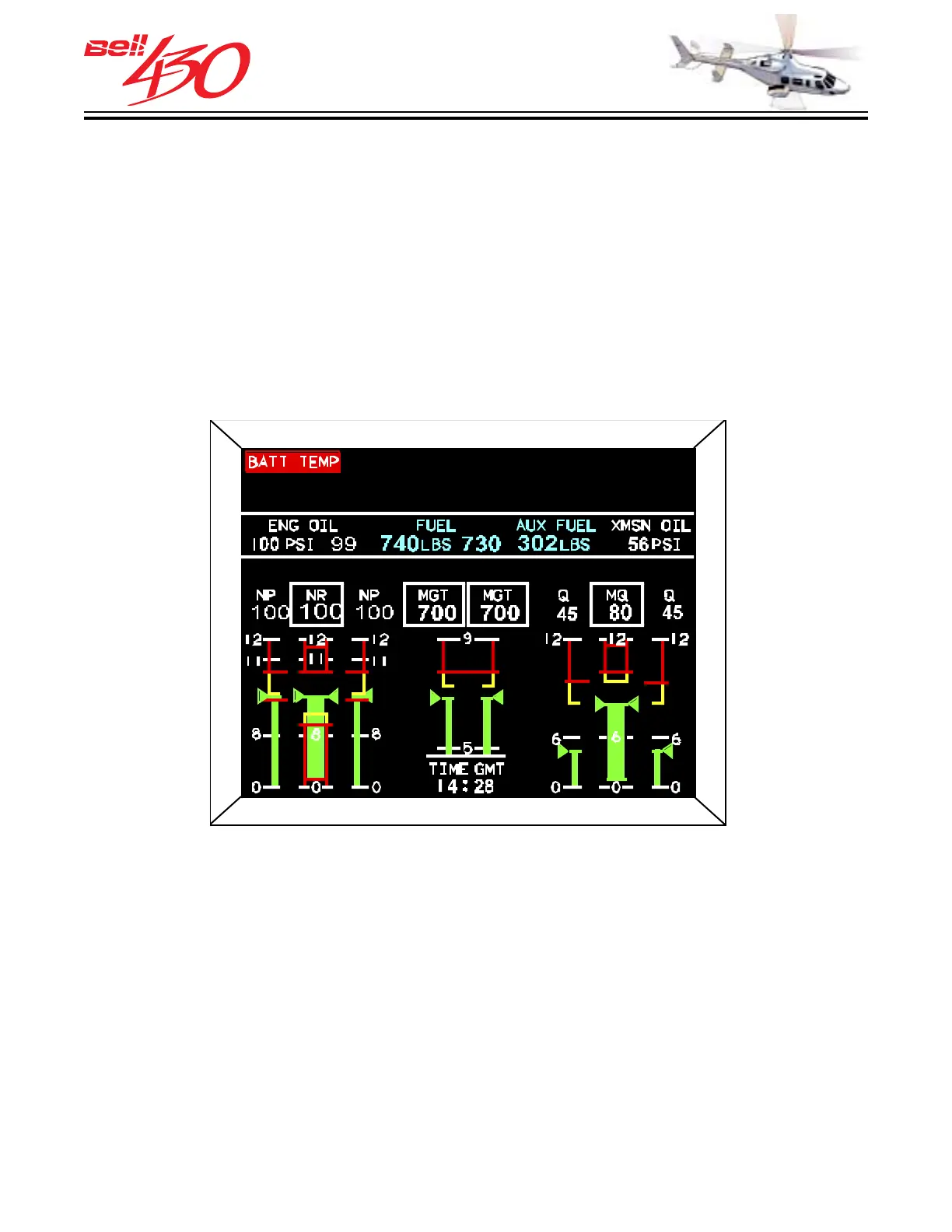

COMPOSITE PAGE
This display page format is provided in the
event one of the dual LCD displays should
fail. The data shown is a condensed
version of that found on the PRIMARY
DISPLAY PAGE , along with Engine Oil
Pressures, Transmission Oil Pressure, Fuel
Quantity (Aux Fuel), and Clock [presented
as digital only indications]
2. ROTOR RPM
3. ENGINE TWO NP
4. ENGINE ONE MGT [W/DIGITAL NO. 1 NG]
5. ENGINE TWO MGT [W/DIGITAL NO. 2 NG]
6. ENGINE ONE TORQUE
7. ROTOR TORQUE
8. ENGINE TWO TORQUE
[DIGITAL INDICATIONS AND ADVISORY
TEXT APPEARS ABOVE THE RESPECTIVE
COLUMN]
[BOTTOM DIGITAL DATA ROW]
1. CLOCK
