BELL HELICOPTER BELL 430 - EXTERIOR DIMENSIONS [ SKID GEAR]; MINIMUM HANGAR SPACE

246
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003

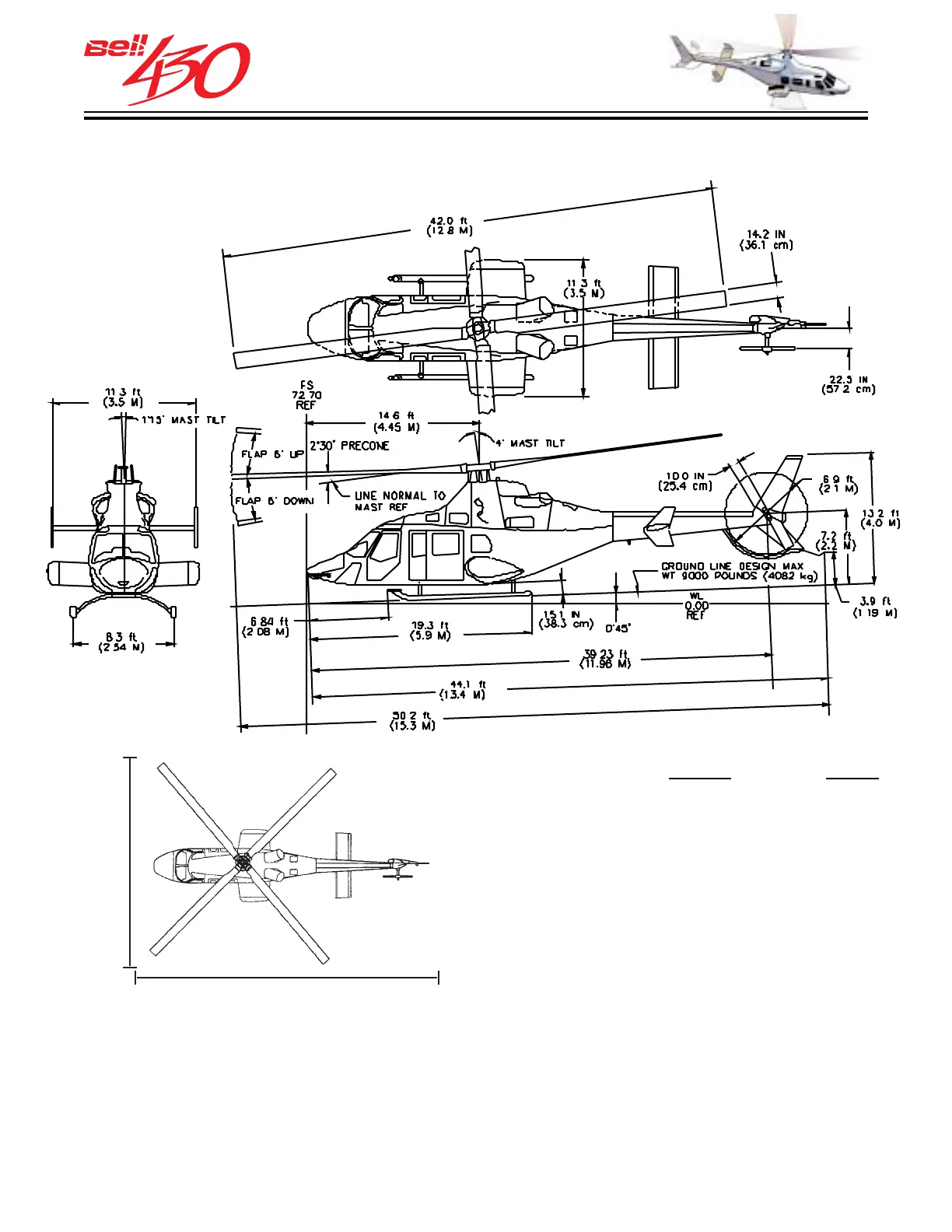

EXTERIOR DIMENSIONS [ SKID GEAR]
feet (meters)
TAIL
SKID
44.6 FEET
(13.6 METERS)
BLADE
TIPS
MINIMUM HANGAR SPACE*
30.9 FT X 44.6 FT
[ 9.4 M X 13.6 M ]
*ALLOWANCE SHOULD BE MADE FOR HIGH SKID
GEAR AND / OR GROUND WHEELS AND DOOR LIP
WHEN CONSIDERING HANGAR DOOR WIDTH AND
HEIGHT
30.9 FEET
(9.4 METERS)
DIMENSIONS ARE APPROXIMATE
[DIMENSIO NS ARE RO UNDED TO THE NEXT HIG HE ST TENTH FOOT(METER)]
ENGLISH METRIC
OVERALL HEIGHT
STANDARD SKIDS 13.2 FT 4.0 M
HIGH SKIDS 14.2 FT 4.3 M
OVERALL LENGTH
FUSELAGE 44.1 FT 13.5 M
ROTOR TURNING 50.2 FT 15.3 M
ROTOR IN "X" 44.6 FT 13.6 M
MAXIMUM WIDTH
FUSELAGE 11.3 FT 3.5 M
ROTOR TURNING 42.0 FT 12.8 M
ROTOR IN "X" 30.9 FT 9.4 M
MAIN ROTOR DIAMETER 42.0 FT 12.8 M
MAIN ROTOR CHORD 14.2 IN 0.361 M
NUMBER OF BLADES 4 4
TAIL ROTOR DIAMETER 6.9 FT 2.1 M
TAIL ROTOR CH ORD 10.0 IN 0.254 M
NUMBER OF BLADES 2 2
