BELL HELICOPTER BELL 430 - ELASTOMERIC DAMPERS & SHEAR RESTRAINTS; ELASTOMERIC DAMPERS; PITCH CHANGE ADAPTER; SHEAR RESTRAINTS

144
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003

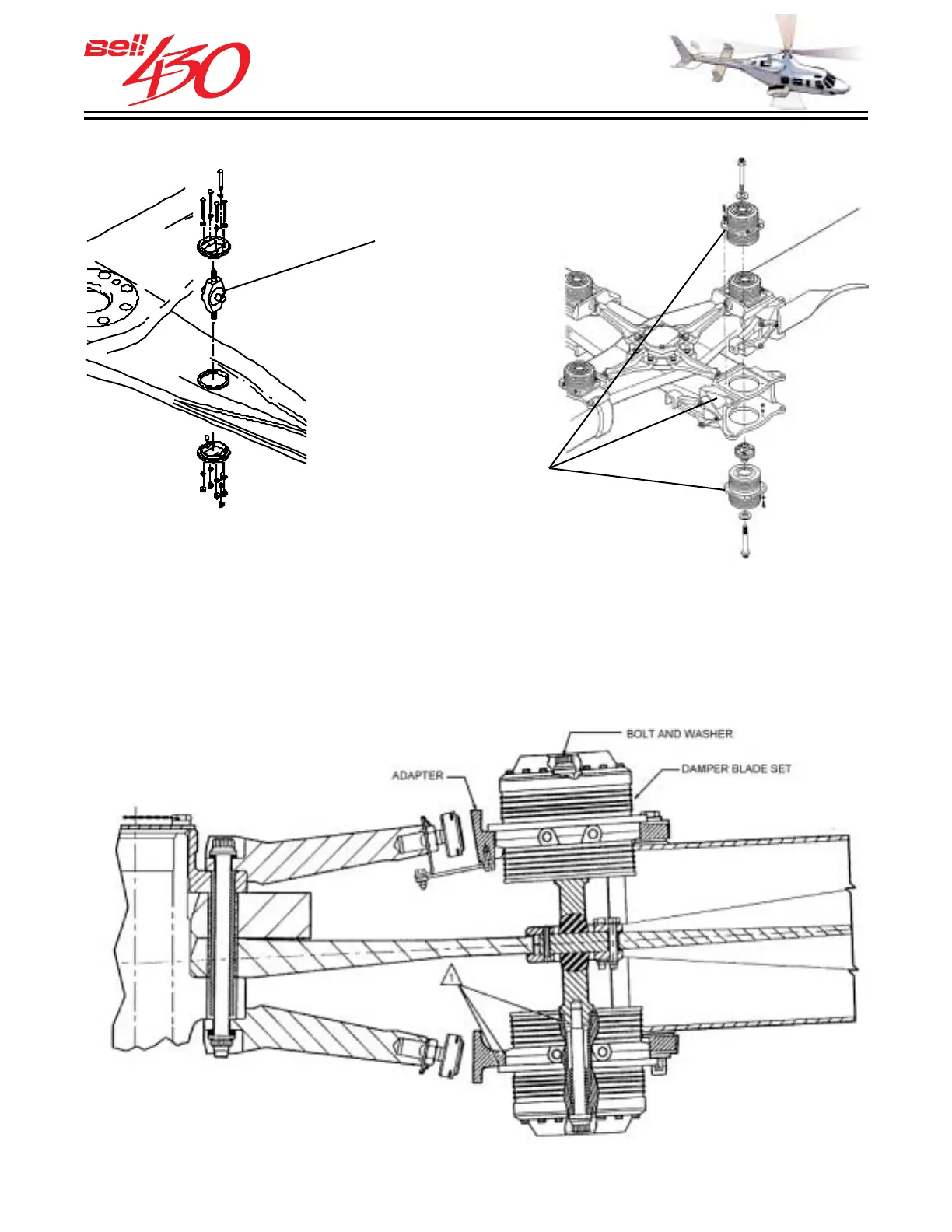

A pitch change adapter at the inboard end of each yoke houses an elastomeric shear
restraint and two elastomeric lead-lag dampers. Lord has designed the elastomeric
components for on-condition replacement and a 5000 hour fatigue life. Dampers can
be replaced without disconnecting the pitch links or removing the blades. No measurement
or shimming is required.
SHEAR RESTRAINT
PITCH CHANGE
ADAPTER &
LEAD /LAG
DAMPERS
ELASTOMERIC DAMPERS & SHEAR RESTRAINTS
YOKE / PITCH CHANGE ADAPTER / SHEAR RESTRAINT CROSS SECTION
