PRODUCT DATA JANUARY 2003

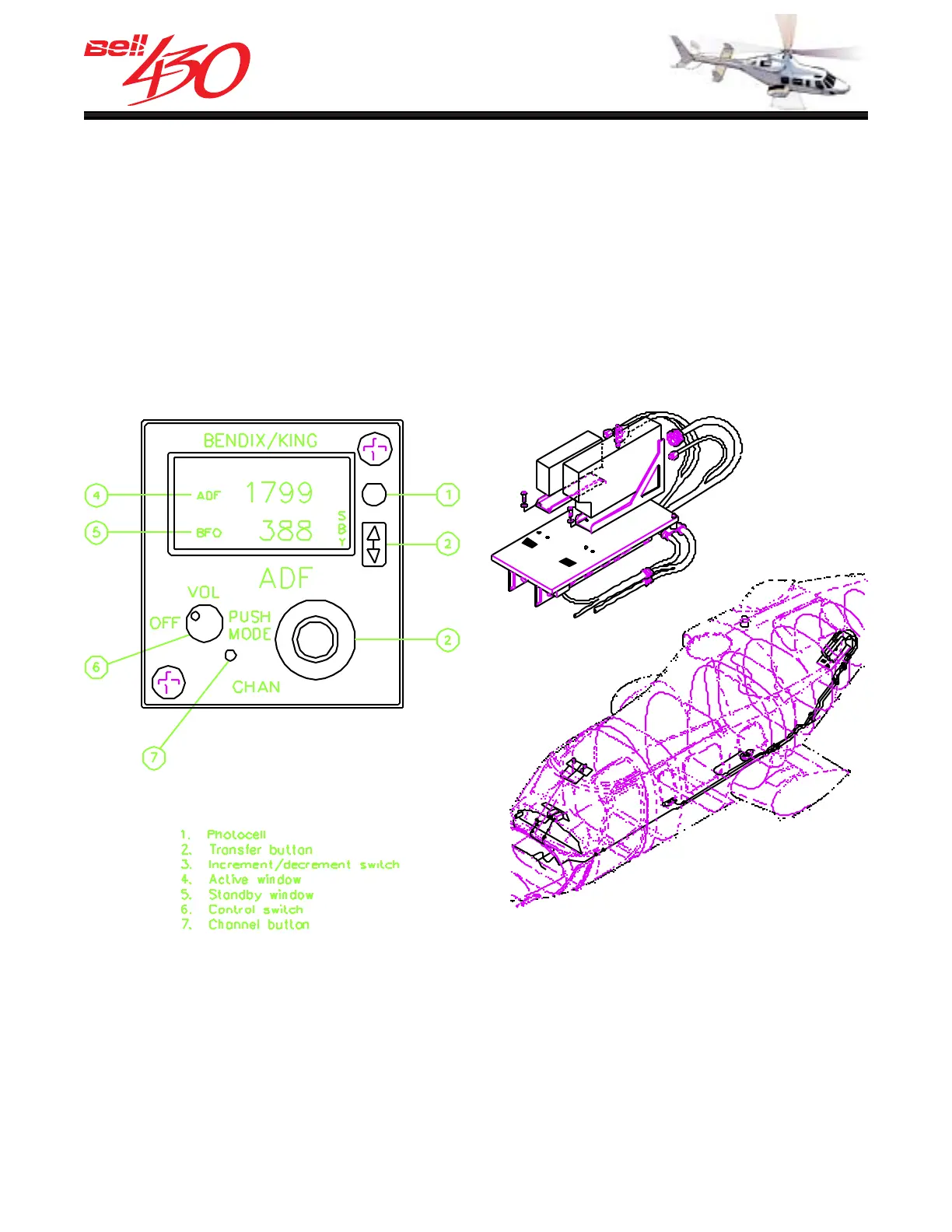

The Automatic Direction Finder (ADF), King KDF-806, supplies magnetic bearing
information on the tuned station to the bearing pointer of the HSI. It also provides ADF
audio to the Intercommunication System (ICS) headset when the ADF switch is in the
ON position. The kit consists of the remote mounted receiver, the control panel, the
mounting rack, a combined loop and sensing antenna. The control panel is located at
the top of the instrument panel. The antenna is on the helicopters' belly.
AUTOMATIC DIRECTION FINDER
