PRODUCT DATA JANUARY 2003

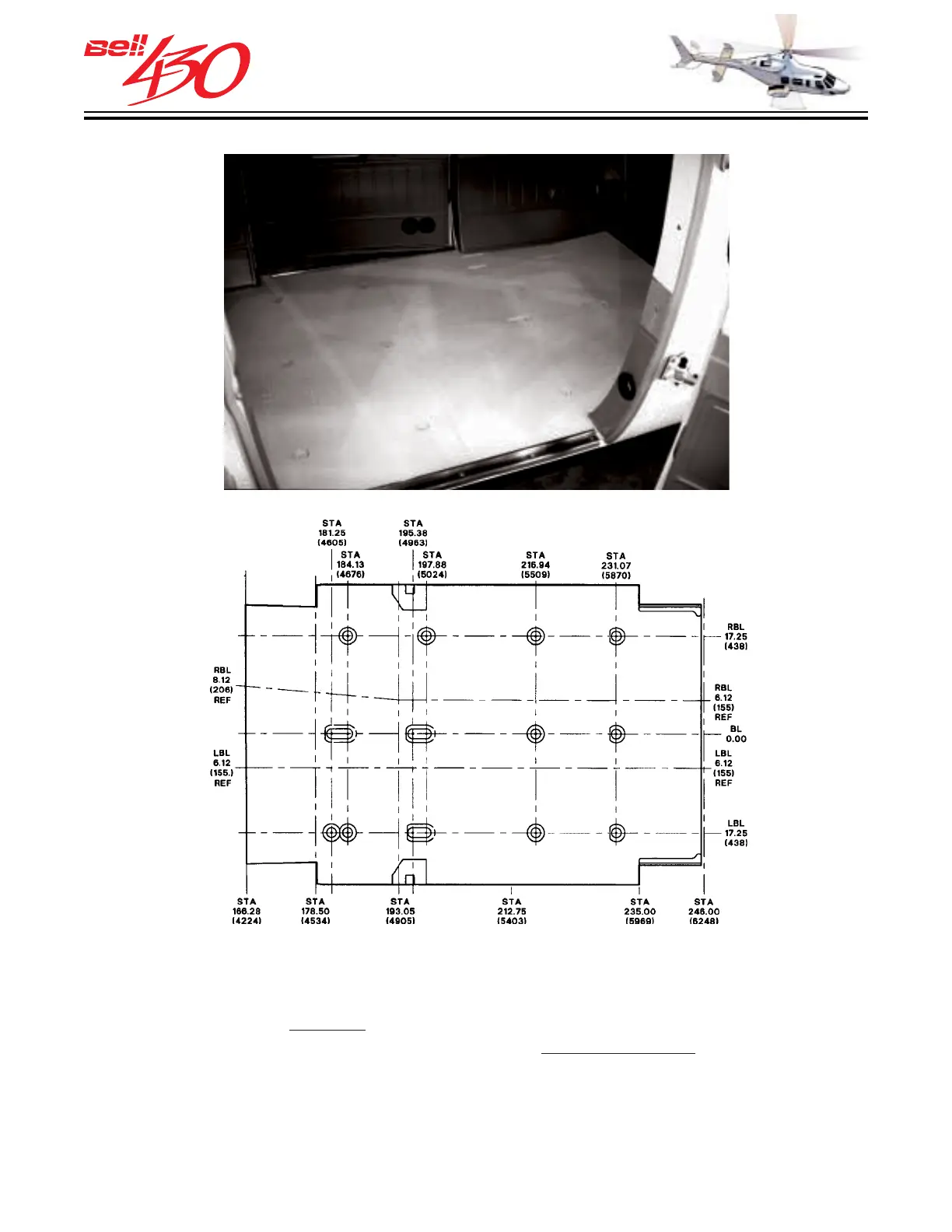

Seat attachment fittings in the floor of the cabin may be used to secure cargo when
the seats are removed. There are 16 recessed studs imbedded in the floor panels,
which provide for the various seat configurations. They accept attachment of either the
seat frame collets or
optional stud adapters which may be fitted with cargo tie down
rings. Each of the recessed studs is stressed for ultimate loading of 2155 kilograms
(4750 pounds) vertical, and 700 kilograms (1545 pounds) horizontal. The normal
floor loading limit is 488 kilograms / meter² (100 pounds / foot²), with a maximum
floor load of 930 kilograms (2050 pounds). The rear bench maximum load is 272 kilograms
(600 pounds).
INTERNAL SEAT /CARGO TIE DOWN FITTINGS
