PRODUCT DATA JANUARY 2003
The Basic Dual Pilot IFR factory
configuration consists of a digital,
three-
axis (pitch, roll, and yaw), dual electronic
channel flight control system, with yaw
damper. System components and

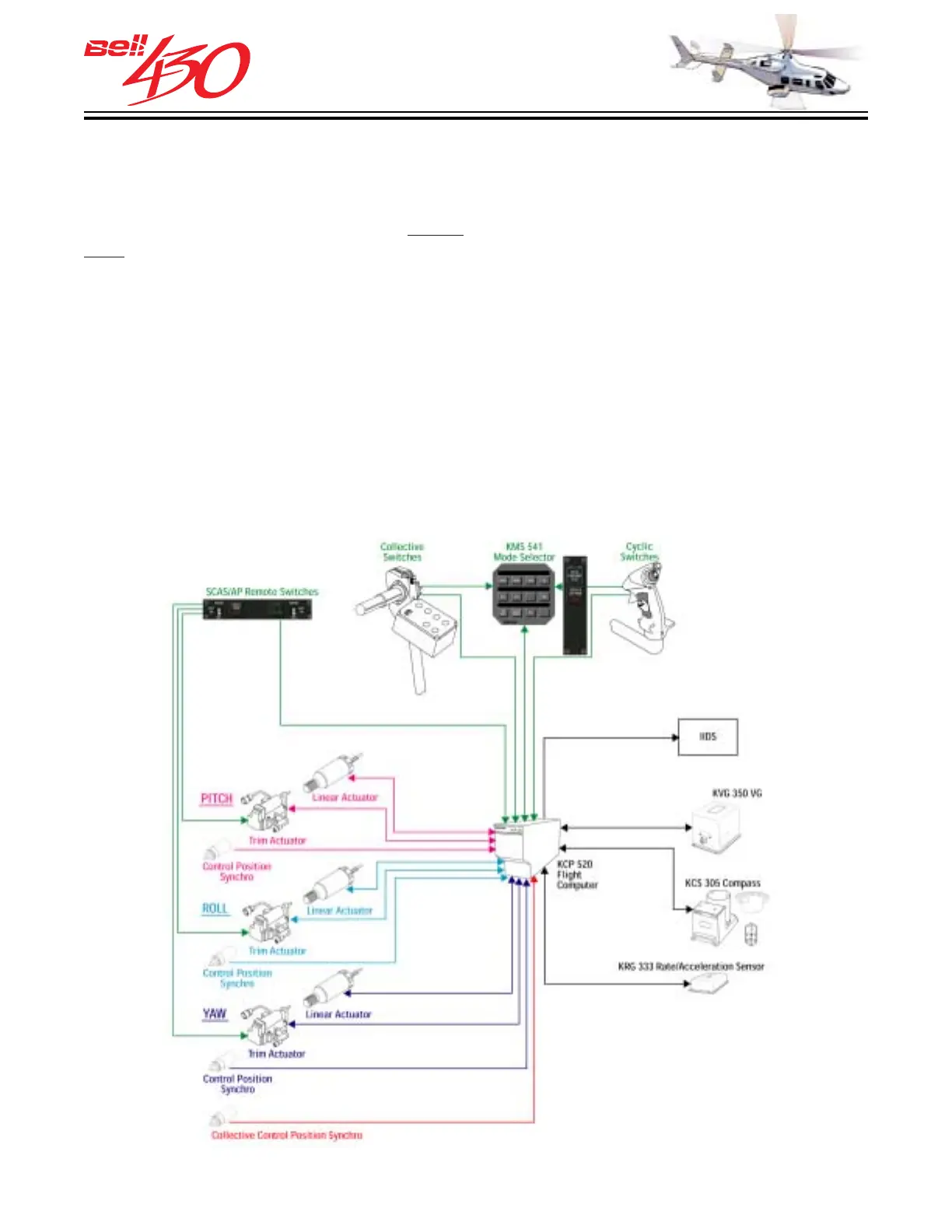

architecture are shown in the block diagram
below. Detailed system description and
operational information may be found in
the attached document; link(KFC500PG-
single.PDF.)
DUAL PILOT IFR with BASIC SCAS/ATT
with E/M Instruments -No Flight Director
System Components
KFC 500 Flight Controls
KCP 520 Flight Computer
KLA 575 Linear Actuators
KSA 572 Trim Actuators
KRG 333 Accelerometer/Rate Gyro
Position Transducers
Iron Gyros - Electromechanical Instruments
Operating Parameters:
3-Axis: Pitch, Roll and Yaw
SCAS Engage on ground
Autopilot engage above 50 knots
Modes: Attitude Hold
