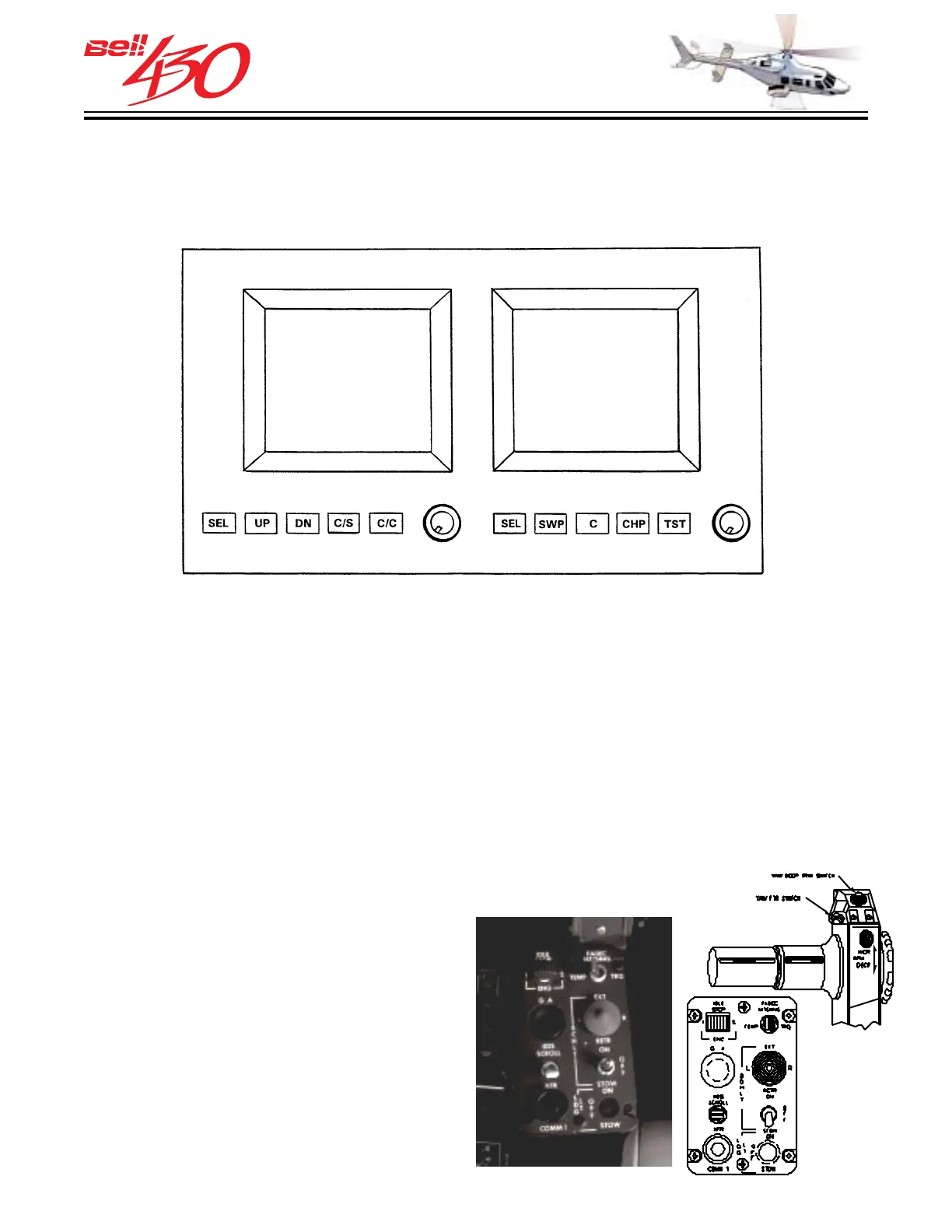

The IIDS unit front bezel provides function keys and function identification to allow
flight and ground personnel system interaction. Left and right rotary knobs provide
individual brightness control for each side of the IIDS unit.
LEFT SIDE CONTROLS
1. “SEL” - SELECTS THE VARIOUS
SECONDARY SCREEN FORMATS.
2. “UP” - SCROLLS UP THE WARNING/
CAUTION/ADVISORY WINDOW.
3. “DN” - SCROLLS DOWN THE WARNING/
CAUTION/ADVISORY WINDOW.
4. “C/S” - SELECTS THE CLOCK DISPLAY
MODES.
5. “C/C” - CONTROLS THE CLOCK ET AND
ETD.
RIGHT SIDE CONTROLS
6. “SEL” - SELECTS THE VARIOUS
SECONDARY SCREEN FORMATS.
7. “SWP” - SWAPS THE PRIMARY AND
SECONDARY SCREEN
8. “C” - SELECTS THE COMPOSITE
SCREEN FORMATS.
9. “CHP” - TRIGGERS THE CHIP FUZZ
BURNER OUTPUT.
10. “TST” - PILOT INITIATED BIT.
IIDS OPERATION FEATURES-DISPLAY CONTROLS
PILOT SCROLL CONTROL
In addition to the bezel mounted controls,
the pilot's collective control box has an IIDS
SCROLL button which permits the pilot to
advance through the secondary page
formats without releasing the primary flight
controls.
