PRODUCT DATA JANUARY 2003

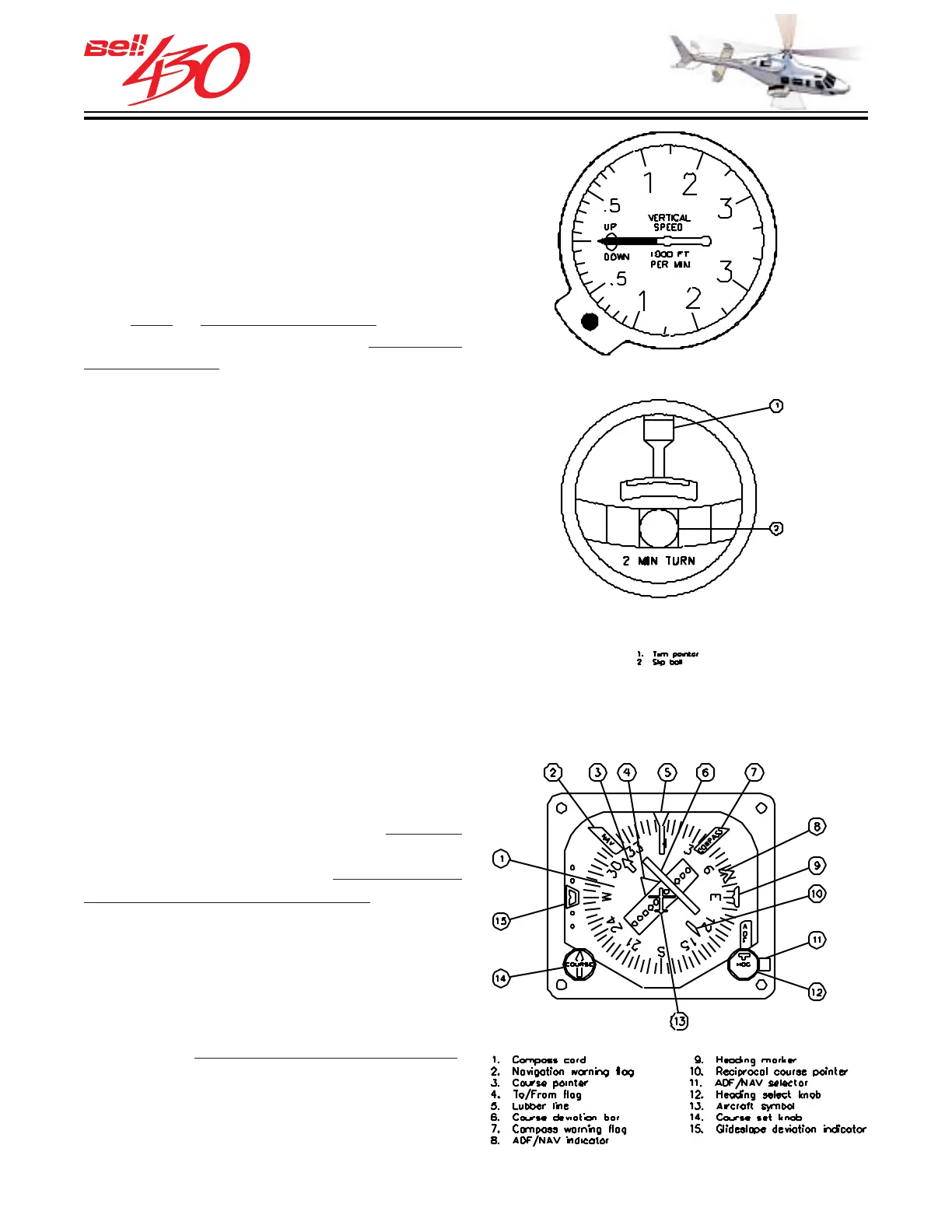

The HSI provides a display of the gyro
stabilized magnetic heading of the
helicopter. When connected to
optional
VOR / ILS, ADF, and GPS navigation
receivers this instrument
combines the
functions of multiple indicators to display
bearing to / from, selected course, and
course / localizer / glideslope deviation.
The King KPI-552B is driven by the remote
mounted King KCS-305 Gyrocompass
System, located in the aft avionics
compartment. Two adjustment knobs are
used to set
desired heading and course.
Warning flags (NAV, GS, & HDG) appear
to indicate unreliable navigation signal or
gyro failure.
HORIZONTAL SITUATION INDICATOR (HSI)
NAVIGATION INDICATORS
The vertical speed indicator is a standard
3-inch instrument which shows the rate of
climb or descent by sensing the rate of
atmospheric pressure change. Information
is shown in feet per minute (fpm) on a scale
from
zero to plus or minus 3500 fpm. The
indicator incorporates a
sensitive
accelerometer to provide instantaneous
vertical speed indication.
VERTICAL SPEED
The standard 2-inch turn and slip indicator
is a 28 Volt DC powered self contained
gyroscopic instrument which has an
indicating needle to show the rate of turn
of the helicopter, along with fluid dampened
ball which shows turn coordination [trim].
TURN & SLIP
