The cyclic grip has a two-position radio "trigger" switch on it's forward face. The first
detent activates the
intercom, while the second activates the VHF communications
transmitter. Space is provided on the grip for additional switches used to control optional
equipment. A friction adjustment control, located at the cyclic's base, allows the
pilot to
set the desired amount of control resistance.

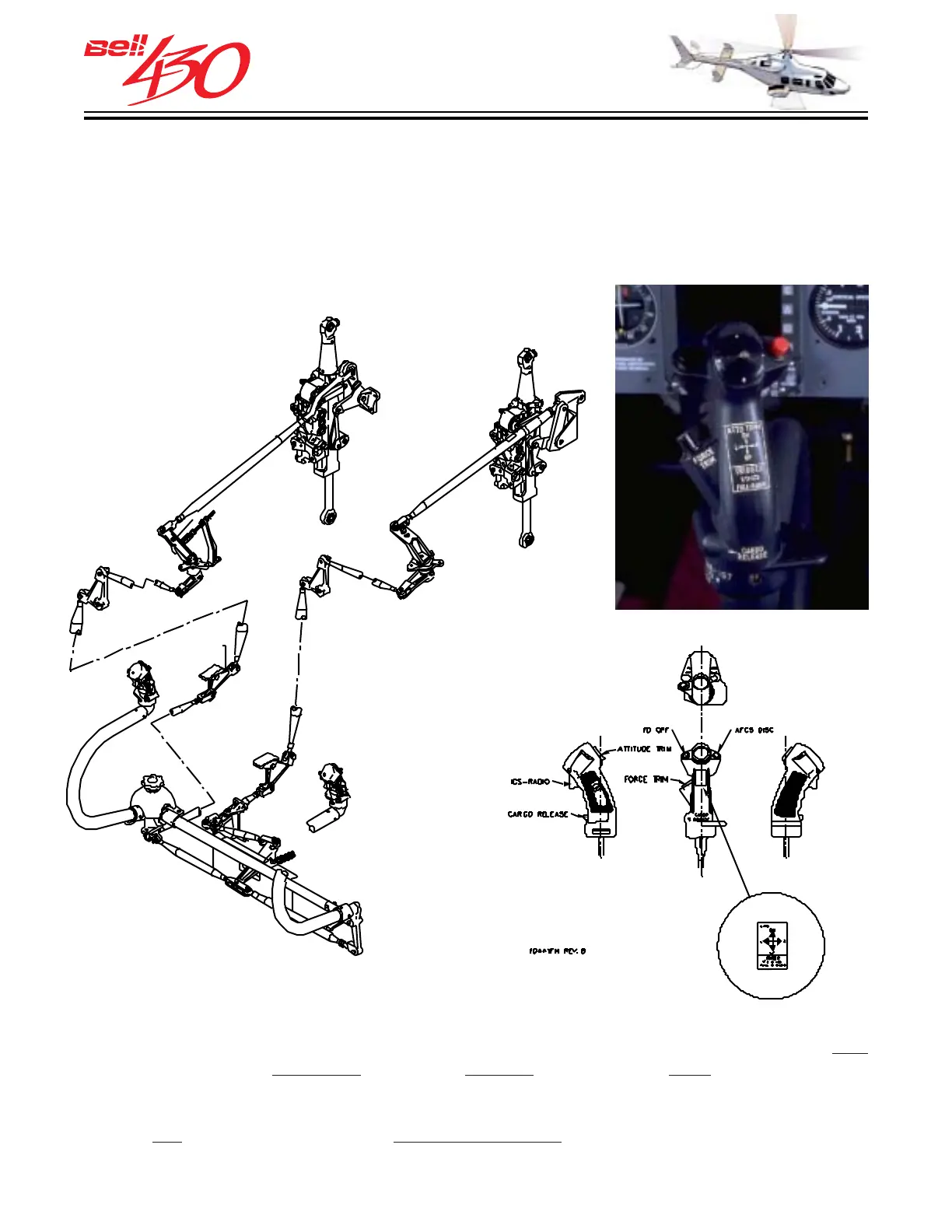

CYCLIC STICK GRIP
The cyclic control stick attaches to the floor, directly in front of the pilot's seat. A
direct linkage beneath the floor separates fore and aft, and lateral inputs, and transmits
them through the vertical control tunnel to the respective servo actuators. Provisions
to connect the optional dual/copilot control kit are standard.
CYCLIC CONTROL SYSTEM
