PRODUCT DATA JANUARY 2003

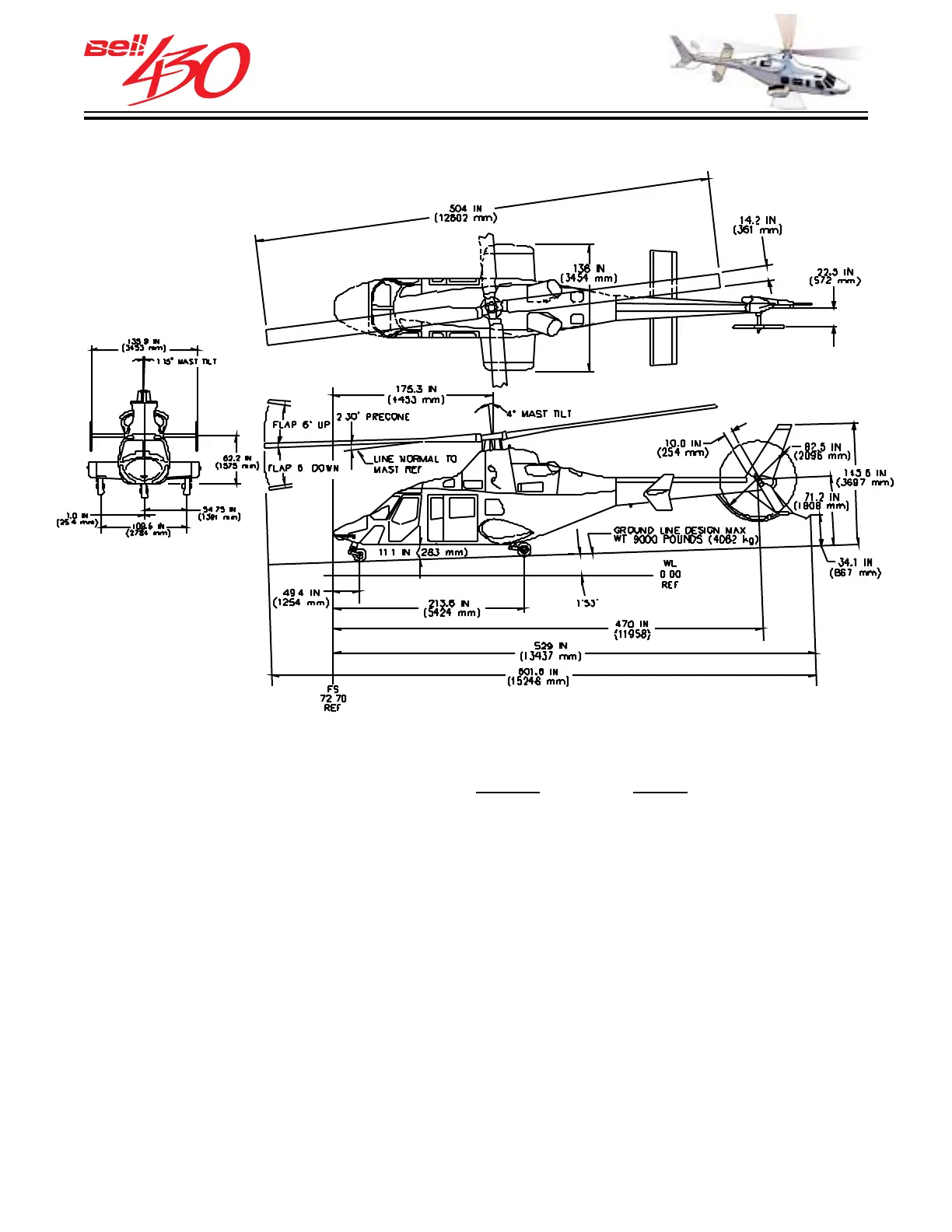

EXTERIOR DIMENSIONS [RETRACTABLE WHEELS]
DIMENSIONS ARE APPROXIMATE
DIMENSIONS ARE ROUNDED TO THE NEXT HIGHEST TENTH FOOT
METER
ENGLISH METRIC
OVERALL HEIGHT 12.2 FT 3.7 M
OVERALL LENGTH
FUSELAGE 44.1 FT 13.5 M
ROTOR TURNING 50.2 FT 15.3 M
ROTOR IN "X" 44.6 M 13.6 M
MAXIMU M WIDTH
FUSELAGE 11.3 FT 3.5 M
ROTOR TURNING 42.0 FT 12.8 M
ROT OR IN "X" 30.9 FT 9.4 M
MAIN ROTOR DIAMETER 42.0 FT 12.8 M
MAIN ROTOR CHORD 14.2 IN 0.361 M
NUMBER OF BLADES 4 4
TAIL ROTOR DIAMETER 6.9 FT 2.1 M
TAIL ROTOR CHORD 10.0 IN 0.254 M
NUMBER OF BLADES 2 2
feet (meters)
