PRODUCT DATA JANUARY 2003
The first two turbine stages are coupled to the compressor, and also power the gas
producer gear train. At 100 % RPM they rotate at 51,000 RPM. The gas producer support
contains a protective energy containment ring, which
surrounds the first stage gas
producer turbine wheel. The energy ring guards against damage from ballistic fragments
in the event of a turbine wheel failure.

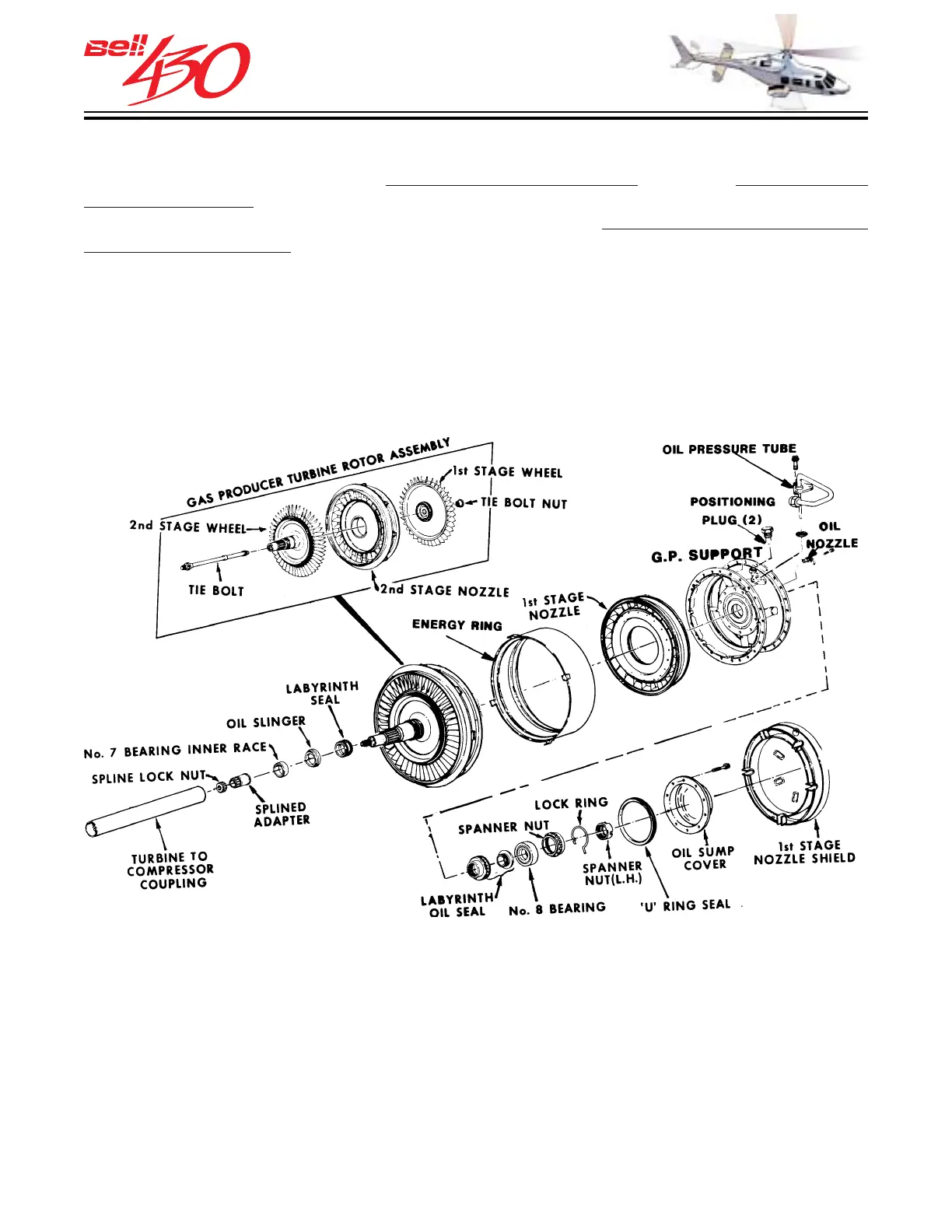

GAS PRODUCER TURBINE (NG)
