BELL HELICOPTER BELL 430 - GAS PRODUCER GEARING; accessory drive train; gas producer gearing

91
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003

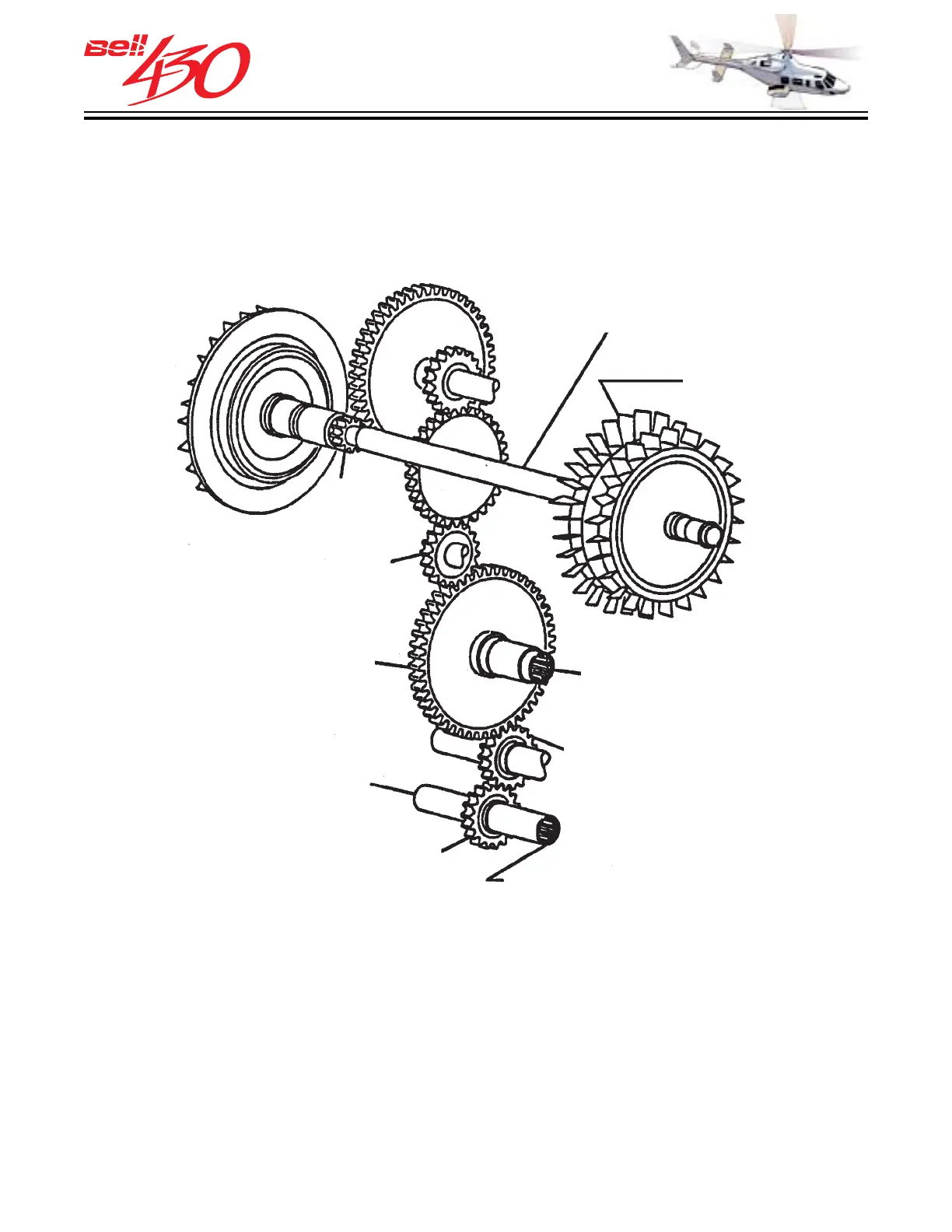

1. SPUR ADAPTOR GEARSHAFT
2. SPUR CENTRIFUGAL BREATHER GEARSHAFT
3. SPUR IDLER GEARSHAFT
4. SPUR IDLER GEARSHAFT
5. SPUR HYDRO MECHANICAL UNIT & OIL PUMP & NG TACH GEARSHAFT
6. GENERATOR IDLER GEAR
7. STARTER GENERATOR GEARSHAFT
1
4
5
7
2
3
TURBINE TO
COMPRESSOR
COUPLING
SPARE
STARTER / GENERATOR
DRIVE
6
DRIVES FADEC H.M.U.
& ENGINE OIL PUMP
& NG TACHOMETER
GAS PRODUCER GEARING
The accessory drive train is powered by the gas producer turbine. It drives / is driven
by the starter / generator, and provides power for the engine fuel pump,
hydromechanical unit and the engine oil pump.
[ LEFT IS FORWARD ]
