PRODUCT DATA JANUARY 2003

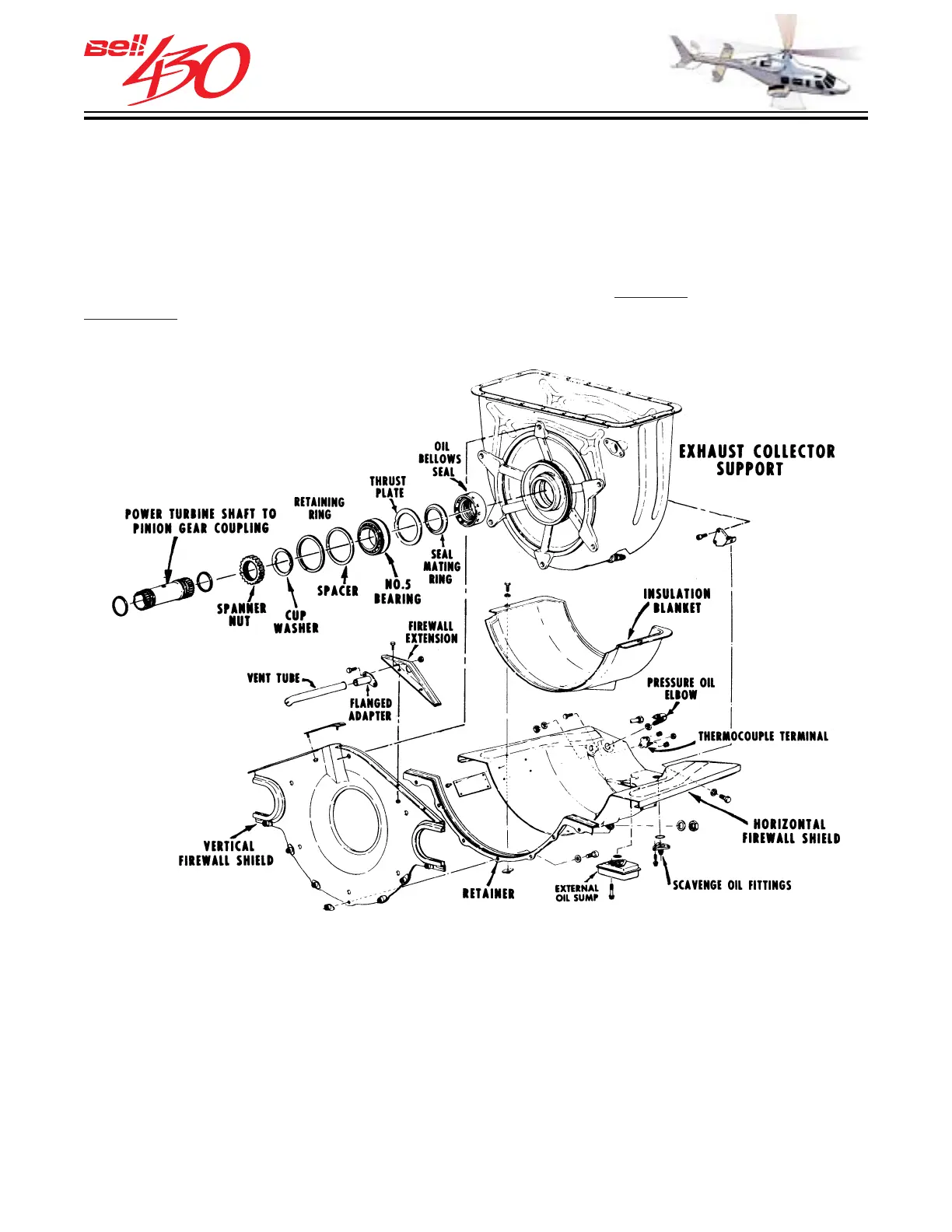

The exhaust collector section is fabricated of high temperature resistant stainless
steel formed sheets and castings. The exhaust collector support holds the aft portions
of the engine and is attached to the accessory gearbox cover with six studs. The exhaust
collector duct incorporates a center tube and power turbine shaft shield which protects
the power turbine shaft from the exhaust gas. The duct has a single rectangular outlet
at its' top, which supports the exhaust ejector stack. The
vertical firewall shield and
horizontal firewall shield and insulation blanket protect accessories from radiant
heat.
EXHAUST COLLECTOR SECTION
