225
THIS IS AN UNCONTROLLED DOCUMENT.
THIS ELECTRONIC DOCUMENT MAY HAVE BEEN SUPERCEDED.
THE MOST CURRENT DOCUMENT INFORMATION IS AVAILABLE
FROM YOUR BELL HELICOPTER TEXTRON REPRESENTATIVE.
PRODUCT DATA JANUARY 2003
Operating procedures and limitations are
found in the FAA Approved Rororcraft Flight
Manual Supplement BHT-430-FMS-31.
The Lucas Aerospace hoist does not have
any duty-cycle (down-up operations)
limitations. It is the responsibility of the
aircraft operator to seek and receive
approval from the appropriate regulatory
agency to conduct Class D-Rotorcraft/Load
operations (Human External Load).
The weight increase with the provisions
only installed is 12.9 kilograms (28.4
pounds). The weight increase for the hoist
equipment installed is 68.9 kilograms
(152.0 pounds). The weight increase for
the skid guard installed is 0.4 kilograms
(0.8 pounds).

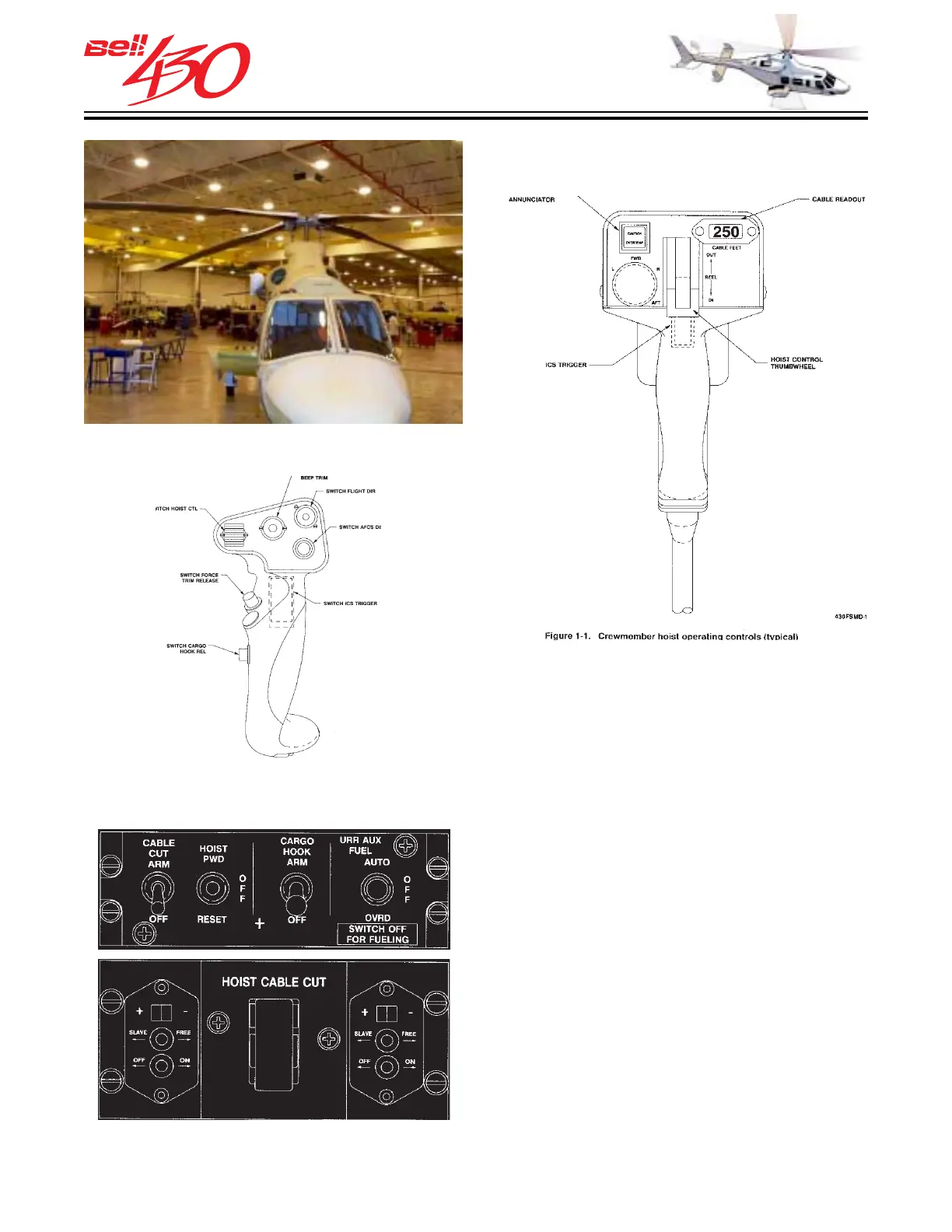

CREWMEMBER'S CONTROL PENDANT
PEDESTAL HOILS CONTROL PANELS
PILOT'S CYCLIC HOIST CONTROL
