CHECKING/EDITING THE CONFIGURATION
Each remote amplifier in a project has an RCM-24 (Remote Control Module) installed. A PCI/USB-CAN-Interface can be
used to connect the CAN-Interface of an RCM-24 to the PC. Existing RCM-24 modules are configured in the
Configuration Window. When using a PCI-CAN-Interface or USB-CAN-Interface, the window needs to be opened via the
menu item "RCM-24 | Configuration via CAN Hardware".

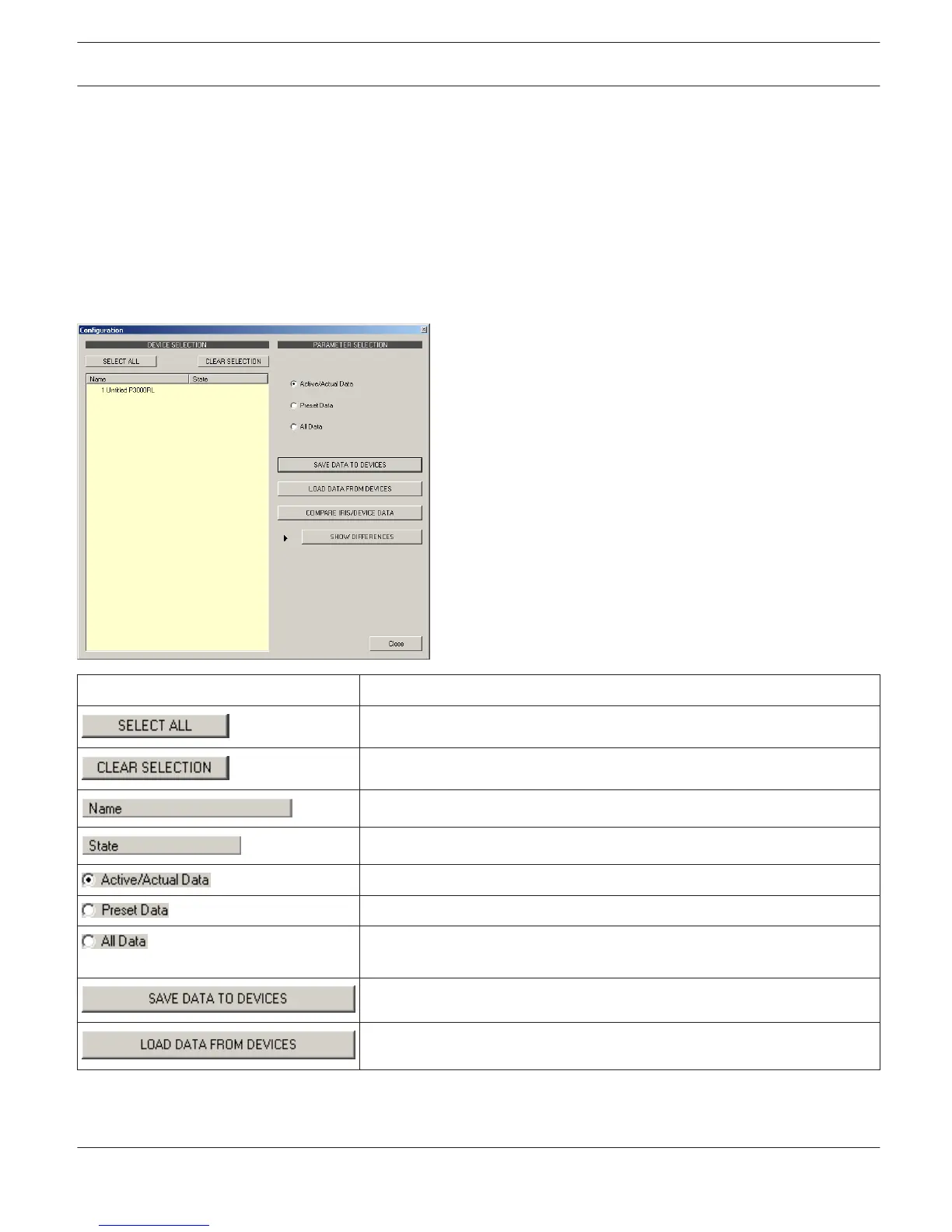

Devices to be configured can be chosen in the left side of the window while the right side of the window selects the
data to be viewed during the configuration procedure.
Element Description
All devices in the list are selected for configuration.
Resets the current selection of devices to be configured.
Name of the device.
The current status of the device.
Only the settings of (a) RCM-24 module(s) will be shown.
Only the presets of (a) RCM-24 module(s) will be shown.
All parameters, i.e. settings and presets, of (a) RCM-24 module(s) will be
shown.
Writes the selected parameters into the RCM-24 module(s).
Reads the selected parameters out of the RCM-24 module(s).
IRIS-Net REMOTE AMPLIFIER | en 103
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
