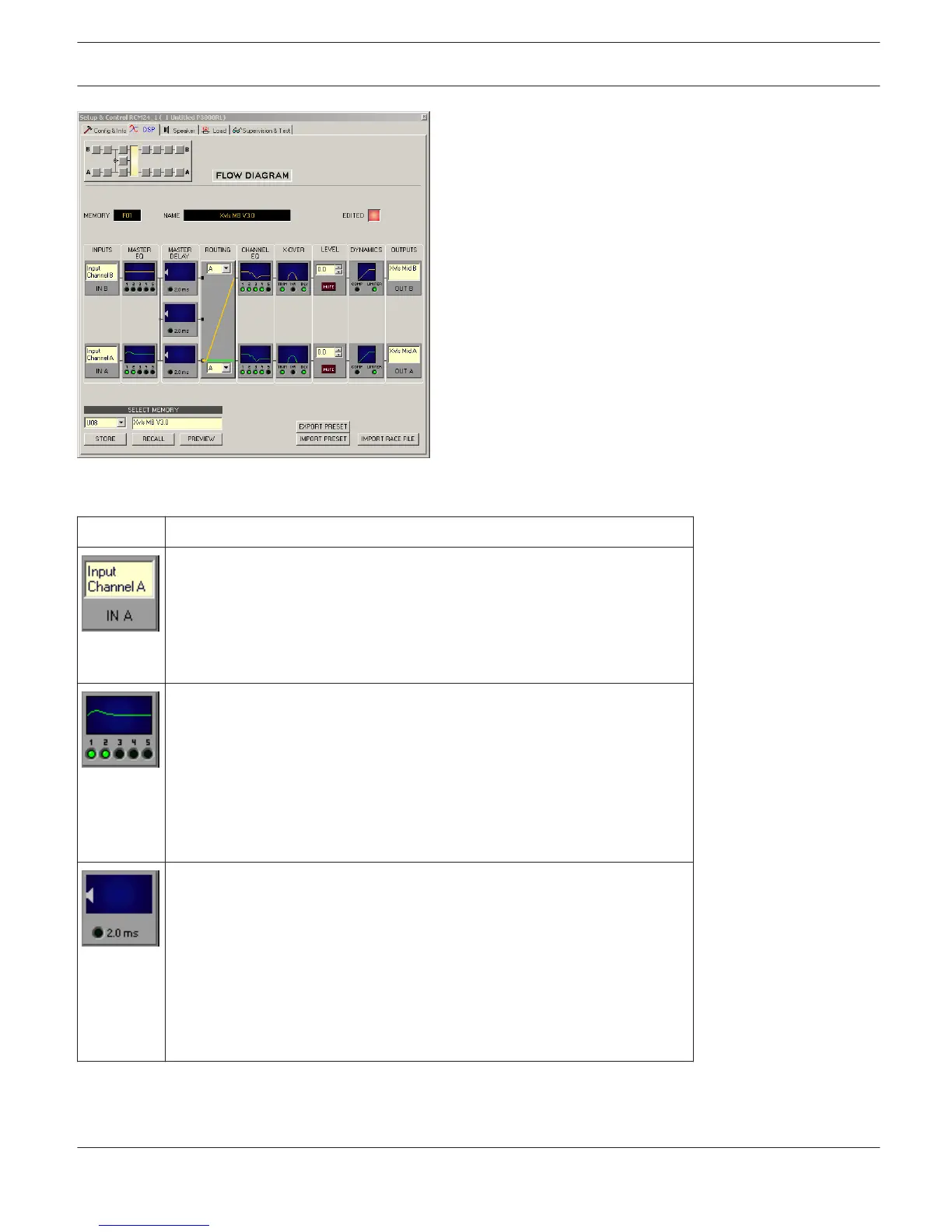

Function Blocks
Element
Description
Input Block:
The text field allows specifying a name for the corresponding input channel.
A click with the right mouse button onto IN A or IN B opens the Copy & Paste
menu, which allows copying all parameters of the corresponding input
channel (Master EQ, Master Delay) to any other input channel within the
same project.
Master EQ Block:
The Master EQ block displays the 5 Master EQs of the corresponding input
channel. The 5 LEDs indicate which EQ-bands are being used while the
graph shows the frequency response of the Master EQ block. A single click
with the left mouse button onto this block opens the MASTER EQ page.
Clicking with the right mouse button opens the Copy & Paste menu, which
allows copying all parameters of the corresponding EQ block to any other EQ
block within the same project.
Master Delay Block:
This displays the Master Delay of the input channels. The corresponding LED
signals whether a delay has been programmed or not. The delay-value is
displayed together with the measurement unit next to the LED. The graph
shows the approximate usage of delay memory capacity. A single click with
the left mouse button onto this block opens the MASTER DELAY page.
Clicking with the right mouse button opens the Copy & Paste menu, which
allows copying all parameters of the corresponding Master Delay block to
any other Master Delay block within the same project.
