Tab Description
Config & Info This page provides information about the amplifier and allows making several basic settings as well
as programming control functions.
DSP The DSP page provides an overview plus access to all DSP functions (Filter, Delay, X-Over, and
Dynamics) of the amplifier.
Speaker This page allows loading and displaying speaker data.
Load This page provides access to several settings for impedance/load monitoring and impedance
testing.
Supervision &
Test
This page allows configuring monitoring and surveillance functions and setting the test tone
generator.
Single Channel Group Dialog (DSPUI)
The Single Channel Group Dialog (for RCM-24 remote amplifiers) is used for linearization and secure operation of a
single loudspeaker. An equalizer, a crossover and a compressor/limiter are presented in separate window. This allows
comfortably adjusting all the specific settings that are necessary for the operation of a single loudspeaker chassis (or
individual way of a loudspeaker system) in a separate window. All settings/parameters can be saved in configuration
files (Speaker Settings). Pre-defined configuration files (Speaker Settings) are available for loudspeakers from Electro-
Voice and DYNACORD . The Single Channel Group Dialog can be accessed via a Group or a Push Button. In the
properties of the respective element you have to select the setting "DSPUI" in the dropdown field "Dialog opened by
Double Click". The channels of the RCM-24 Remote Amplifiers to be controlled have to be linked to the Push Button or
the Group via the menu item "Administrate Connection" of the corresponding contextual menu. The two tabs "DSP"

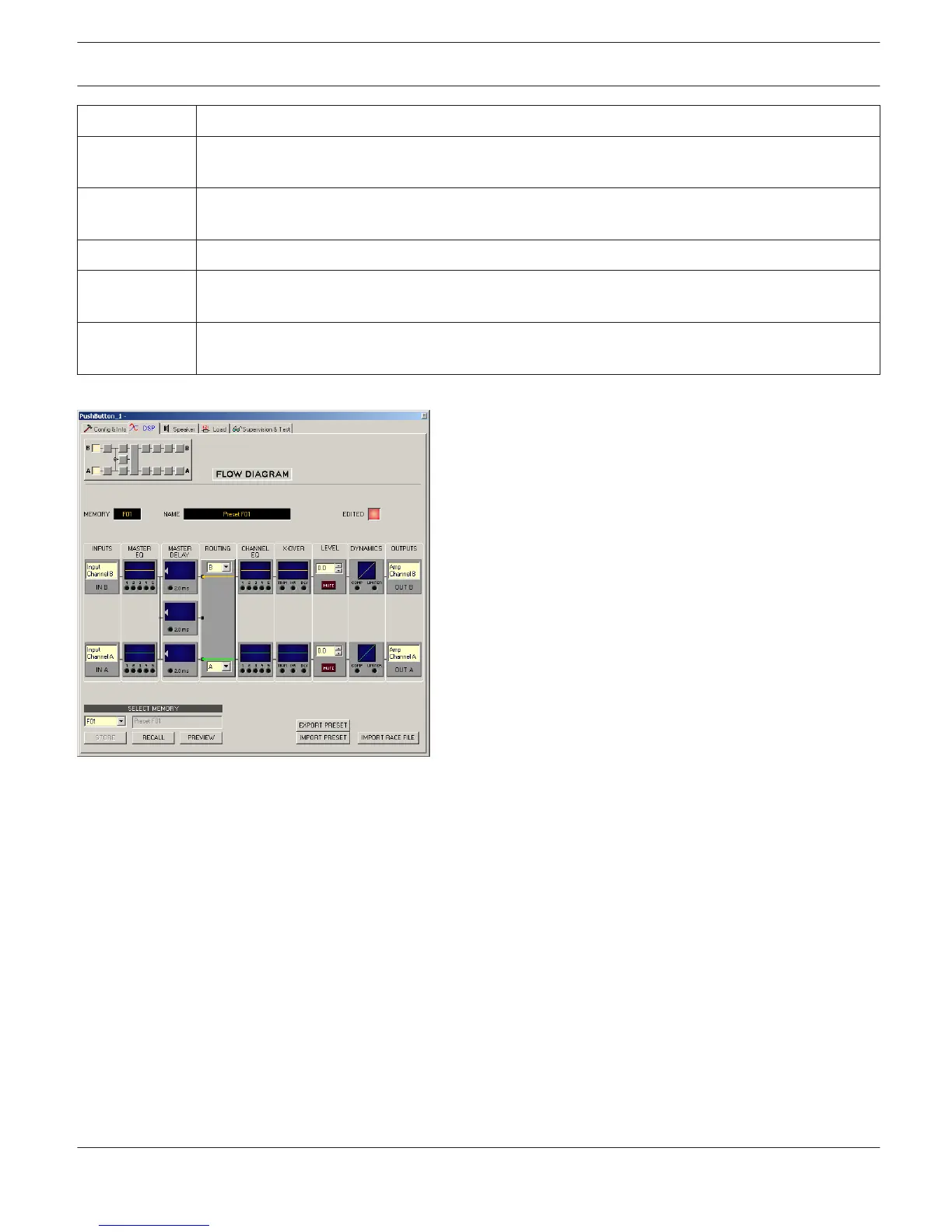

and "Speaker" can be found in the main window of the Single Channel Group Dialog. The DSP tab provides access to
the flow diagram to make all necessary settings.
