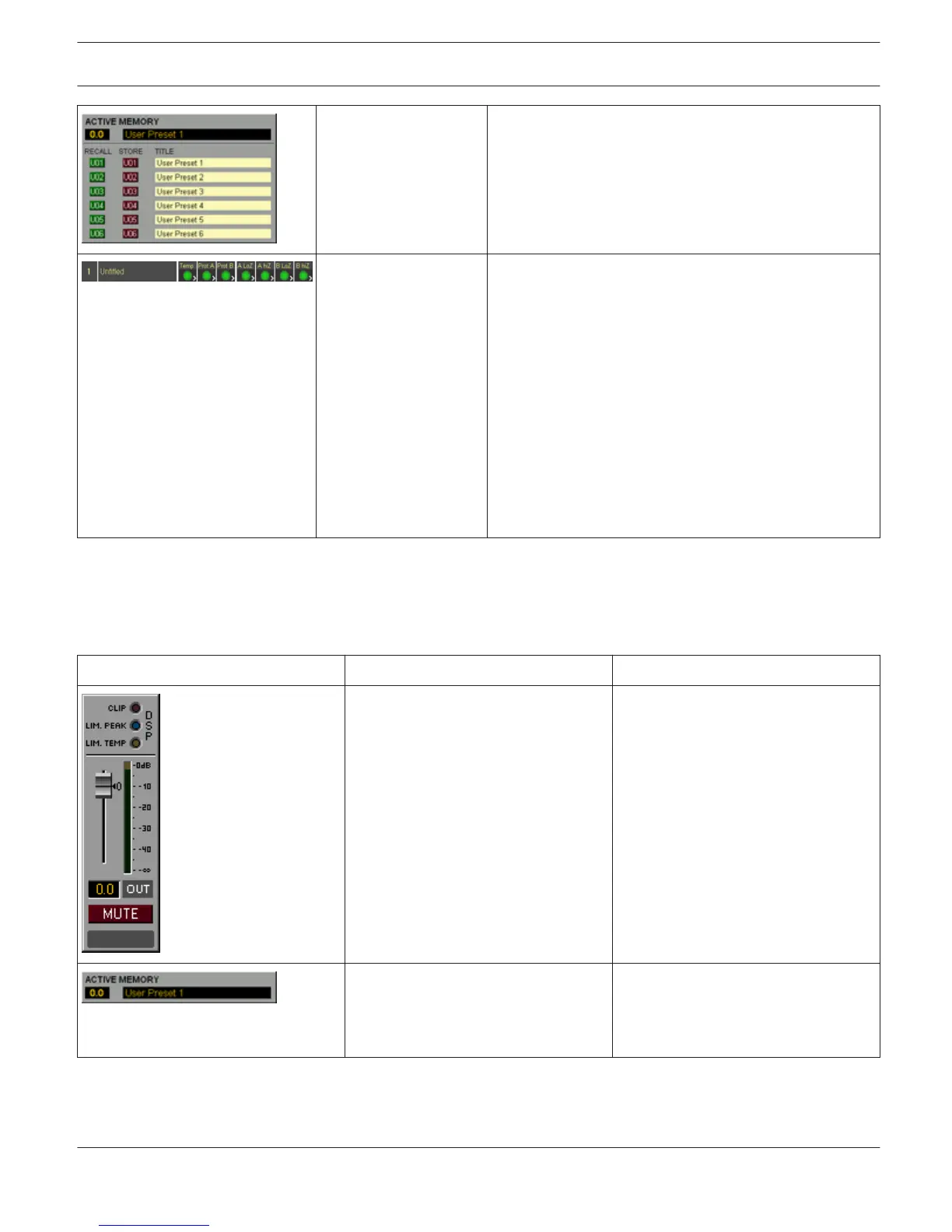

RCM-26_Memory_Panel
_04
Load user memory presets 1...6 or save to user memory
1...6. Number and name of the currently active user
memory is being indicated. Editing preset title is
possible. Possible Connections: RCM-26-Amp.
RCM-26_Supervision_Fl
ags_01
CAN address and name of amplifier is indicated. The
Temp LED lights red when temperature of the the
amplifier is to high. Otherwise, the LED lights green. The
Prot A/B LED lights red when amp channel A or channel
B is in Protection mode. Otherwise, the LED lights
green. The A/B LoZ LED lights red at the occurrence of
the load at the amplifier's output is to low (a shorted
line). Otherwise, the LED lights green. The A/B hiZ LED
lights red at the occurrence of the load at the amplifier's
output is to high (a open line). Otherwise, the LED lights
green. The white arrow buttons opens the Supervision &
Test or Load dialog of the amplifier. Possible
Connections: RCM-26-Amp.
RCM-28 User Controls
Following sets of connections are used in following table:
– RCM-28-Amp: TG-5, TG-7, H2500, H5000
– RCM-28-Amp-Channel: TG-5.ChA, TG-5.ChB, TG-7.ChA, TG-7.ChB, H2500.ChA, H2500.ChB, H5000.ChA, H5000.ChB
Name Description
RCM-28_Group_Panel_01 These three LEDs indicate clipping
(CLIP) or whether the peak limiter
(LIM. PEAK) or the TEMP limiter (LIM.
TEMP) of the DSP is active. Fader and
MUTE buttons for controlling and LED
bar graph meter for monitoring the
amp’s output channel. Clicking onto
the ”0” marking resets the fader to 0
dB. Possible Connections: RCM-28-
Amp-Channel.
RCM-28_Memory_Display_01 Number and name of the currently
active factory/user/owner memory is
being indicated. Possible
Connections: RCM-28-Amp.
IRIS-Net IRIS-Net | en 30
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
