Adding Graphics

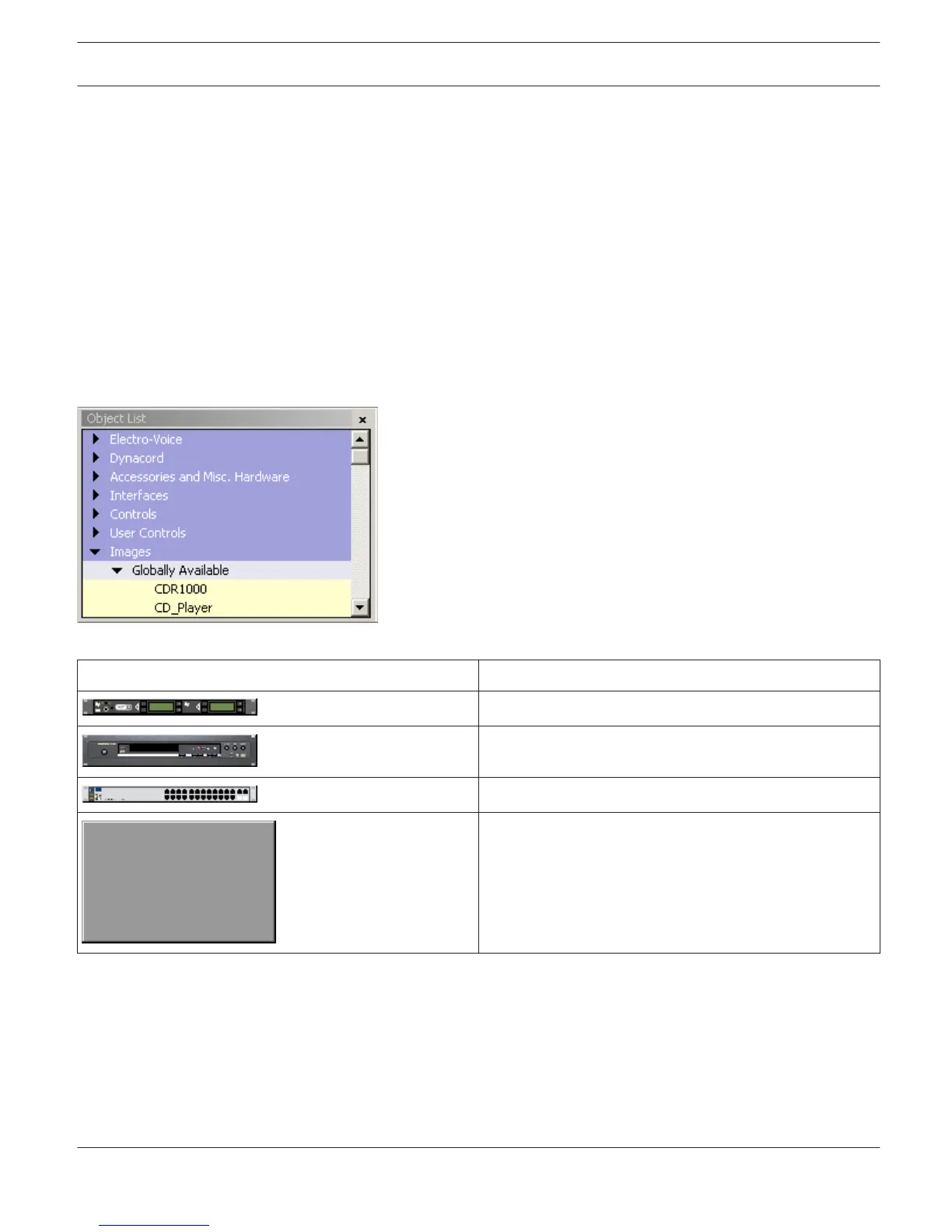

IRIS-Net graphics are available from the Bitmaps category in the Objects List and from the separate Bitmaps window.
The window opens when selecting the Add Bitmap command in the IRIS-Net Configuration menu or by using the
contextual menu in the IRIS-Net worksheet. The list is divided into two categories. The category Locally Used lists all
Bitmaps that are being utilized in the project that is currently open. The category Globally Available lists all Bitmaps,
which are stored in the IRIS-Net Bitmaps Folder.
Using custom designed bitmap graphics (in file format bmp, jpg or png) within IRIS-Net projects along with the ones
that come with the software package is possible. The color RGB=255,0,255 (HTML=ff00ff) is reserved for defining
areas within bitmap graphics that appear transparent within IRIS-Net (e.g. Rack_15HU). You can copy new Bitmaps into
IRISNet’s Bitmaps Folder or you can add a new graphic to the IRIS-Net worksheet using Drag & Drop. Just select the
desired file in the Windows Explorer and drag it over into the worksheet.
Name
CDR1000
CD_Player
HP Procurve Switch 2626
Panel_grey_166x105
