TOUCH PANELS
TPI-5
TPI-5 Device
First, create a TPI-5 Device in your IRIS-Net project, by selecting it from the Object List in the category Accessories and
Misc. Hardware > Touchpanels. Alternatively select and drag and drop it to the worksheet from the window Accessories
and Misc. Hardware > Touchpanels.

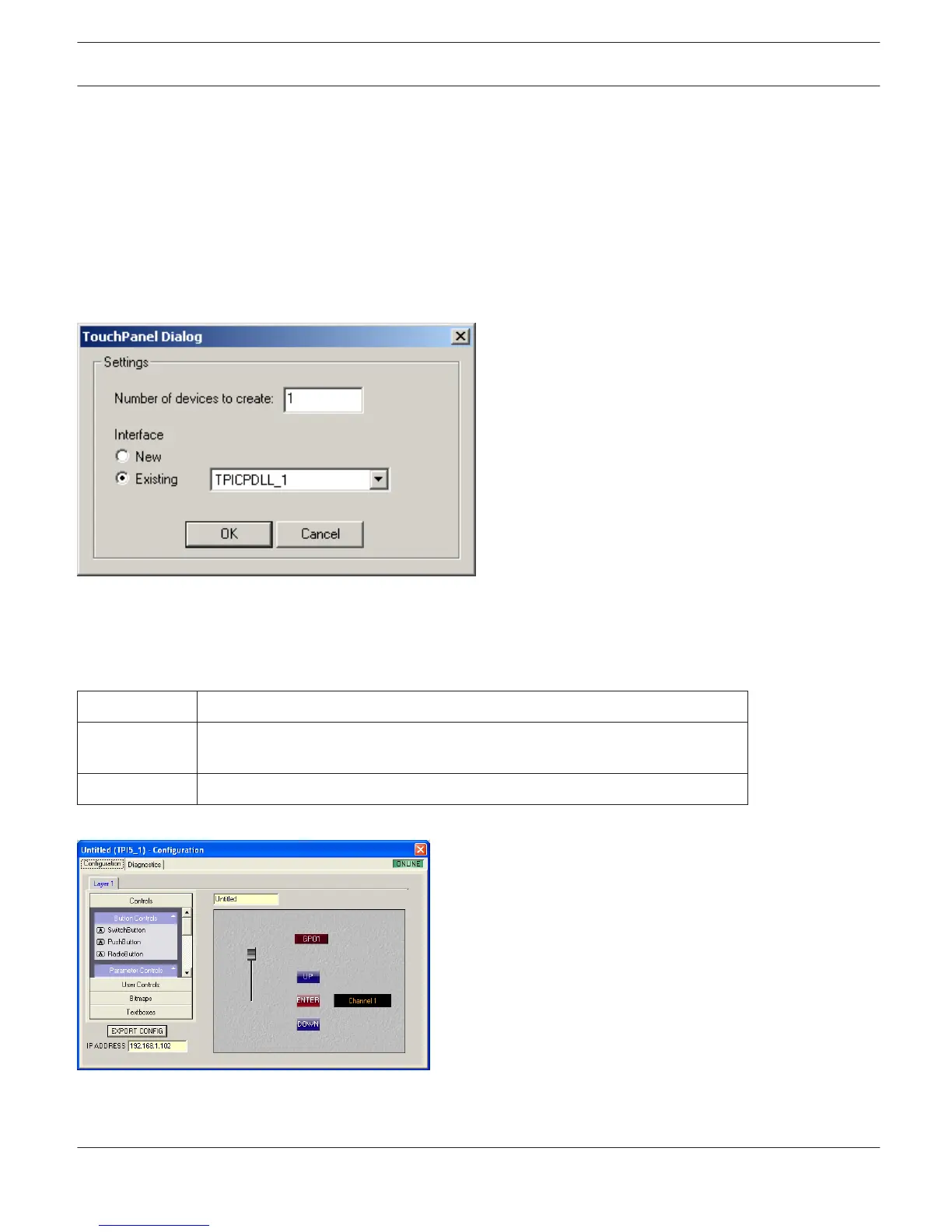

The following dialog appears:
Please enter the number of devices and the Communication Interface and confirm with the OK button. After that one or
several TPI-5 Devices appear on the worksheet. The TPI-5 devices can be selected and placed in the worksheet. By
right clicking on a TPI-5 Device > Configuration you get to the Configuration Dialog.
TPI-5 Configuration Dialog
Dialog Description
Configuration In this dialog the graphical user interface of the TPI-5 can be designed. Several
standard IRIS-Net Controls like e.g. Switch Button, Fader or LED are available.
Diagnostics On this page different fault states are shown.
IRIS-Net TOUCH PANELS | en 529
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
