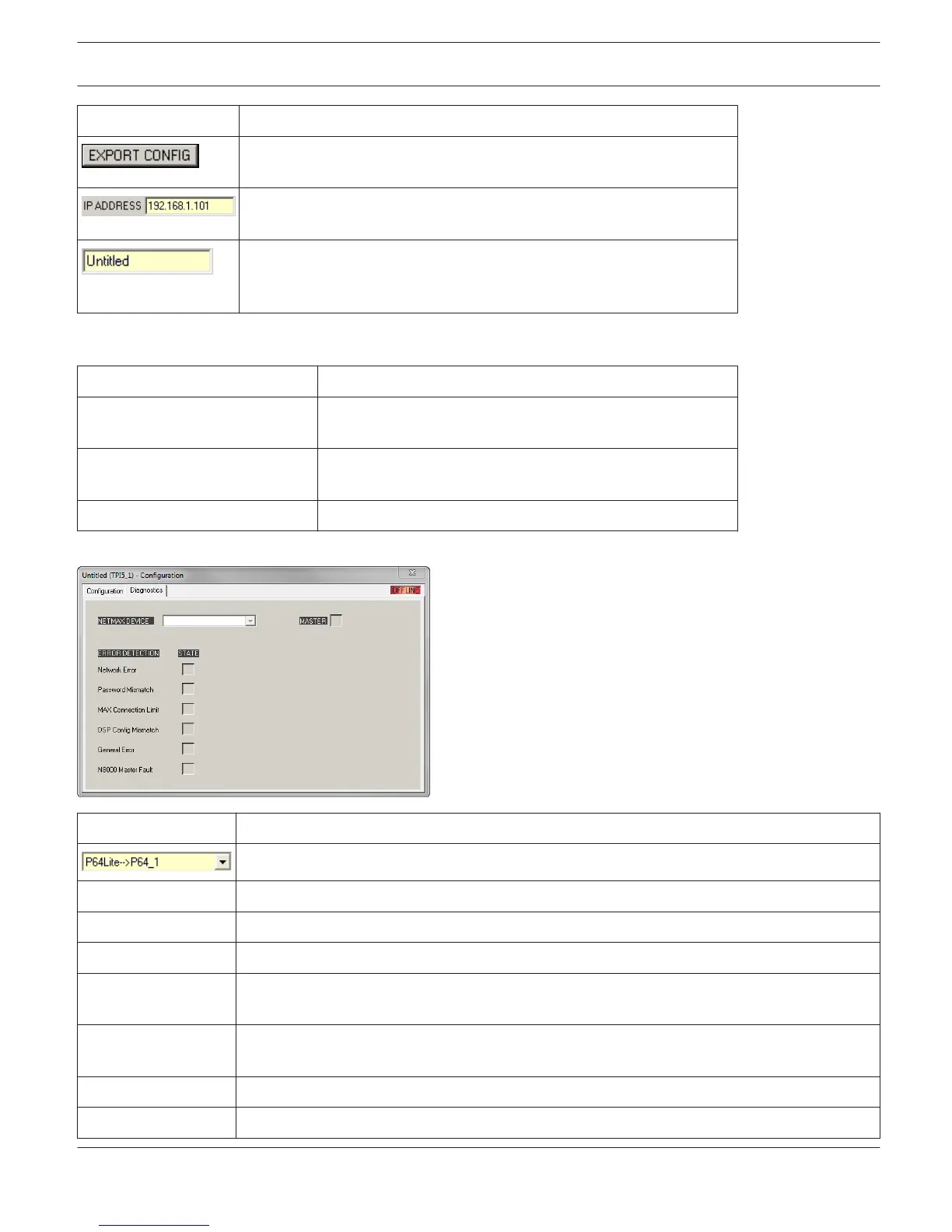

Element Description
By clicking this button, the graphical user interface will be exported as a
project file (*ds)
Enter here the IP address matching the hardware IP address. The
default IP address of the TPI-5 is 192.168.1.102.
A name can be assigned to each touch panel to specify its use or
position. Click on the yellow entry field and enter the desired name.
Press Return on the keyboard to acknowledge the entered name.
Following properties can be used for advanced configuration of the TPI-5:
Property Description
Brightness Allows adjusting the display brightness (0 = dark, 100 =
bright)
Layer after screensaver active Select the layer to be shown after activation of the
screensaver.
Startup layer Select the layer to be shown after power-on of the TPI-5.
Element Description
Select one of the Electro-Voice NetMax N8000 or DYNACORD P 64 operated by the TPI-5.
MASTER Master-Fault-Flag for all N8000 / P 64 used on the TPI-5 and the TPI-5 itself.
Network Error Network Error between a TPI-5 and a connected N8000 / P 64.
Password Mismatch If the password is wrong the TPI-5 can not connect to a N8000 / P 64.
MAX Connection
Limit
If too many users are connected to the N8000 / P64, the TPI-5 can not connect to the N8000 /
P64.
DSP Config Mismatch If the DSP structure saved in the TPI-5 is not identical with the DSP Structure of the N8000 /
P64, then the TPI-5 can't go online with the N8000 / P 64.
General Error General Error in the TPI-5.
N8000 Master Fault The Master Fault Flag of a N8000 / P64, which is connected to the TPI-5, is active.
IRIS-Net TOUCH PANELS | en 530
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
