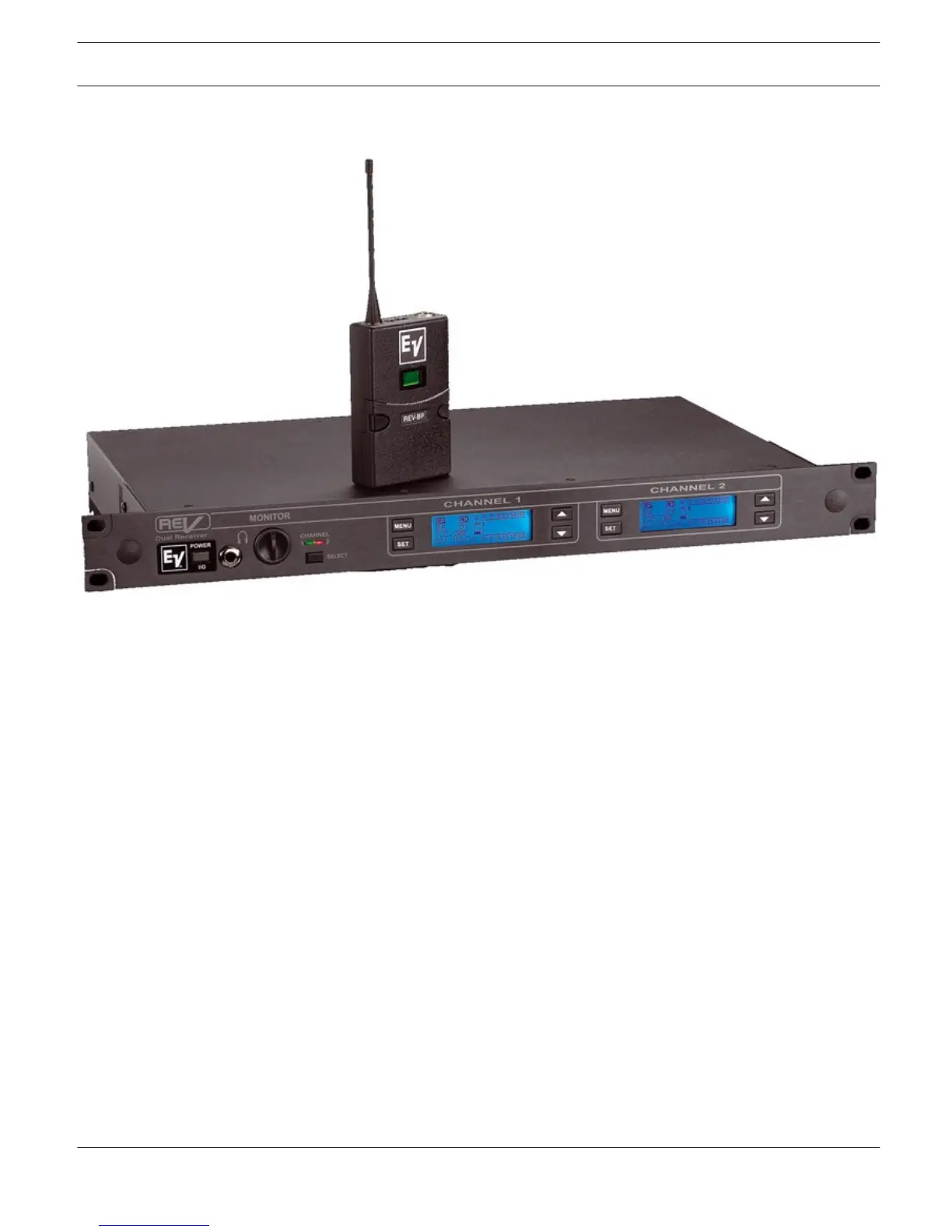

REV WIRELESS MICROPHONE SYSTEM
Introduction
The REV Wireless Microphone system combines frequency agility and ease of use like no other. The REV transmitters
and receivers operate over a 24 MHz bandwidth in the UHF portion of the spectrum. The high quality audio circuitry
and advanced Radio Frequency (RF) signal processing offer broadcast quality signal-to-noise and audio clarity.
The system features include:
Advanced ClearScan technology for selecting clear channels and inter-modulation free groups
– 960 Radio Channels, user programmable or factory installed
– LCD Displays for ease of viewing
– Patented DSP Phase Diversity System
– CAN Bus Port for computer monitor, control, and updating (connection via UCC1 USB-CAN Converter)
– Adjustable Unbalanced Line Level 1/4 inch output jack
– Adjustable Balanced Microphone Line Level XLR output jack
– Front Panel Power ON/OFF Switch
– Permanent Flash Memory for frequency/system storage
– Front Panel Software Control of Squelch and Audio Output settings
– Combination Squelch (Amplitude and Tone) system prevents false squelch
– Lockout feature to prevent accidental channel changes
– Sound Check mode to speed walk testing and provide tangible results
– Backlit LCD displays on transmitters for easy adjustment on dark stages
– "Smart" battery feature in the 9V transmitters means there is no wrong orientation
– Interchangeable heads on the handheld transmitters
– Cast magnesium case on the bodypack transmitter
IRIS-Net
REV WIRELESS MICROPHONE SYSTEM | en 307
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
