DSP
The DSP pages provide overview and access to all DSP parameters of an amplifier. Within this window you can use the
Flow Diagram Selector to link to different function groups.

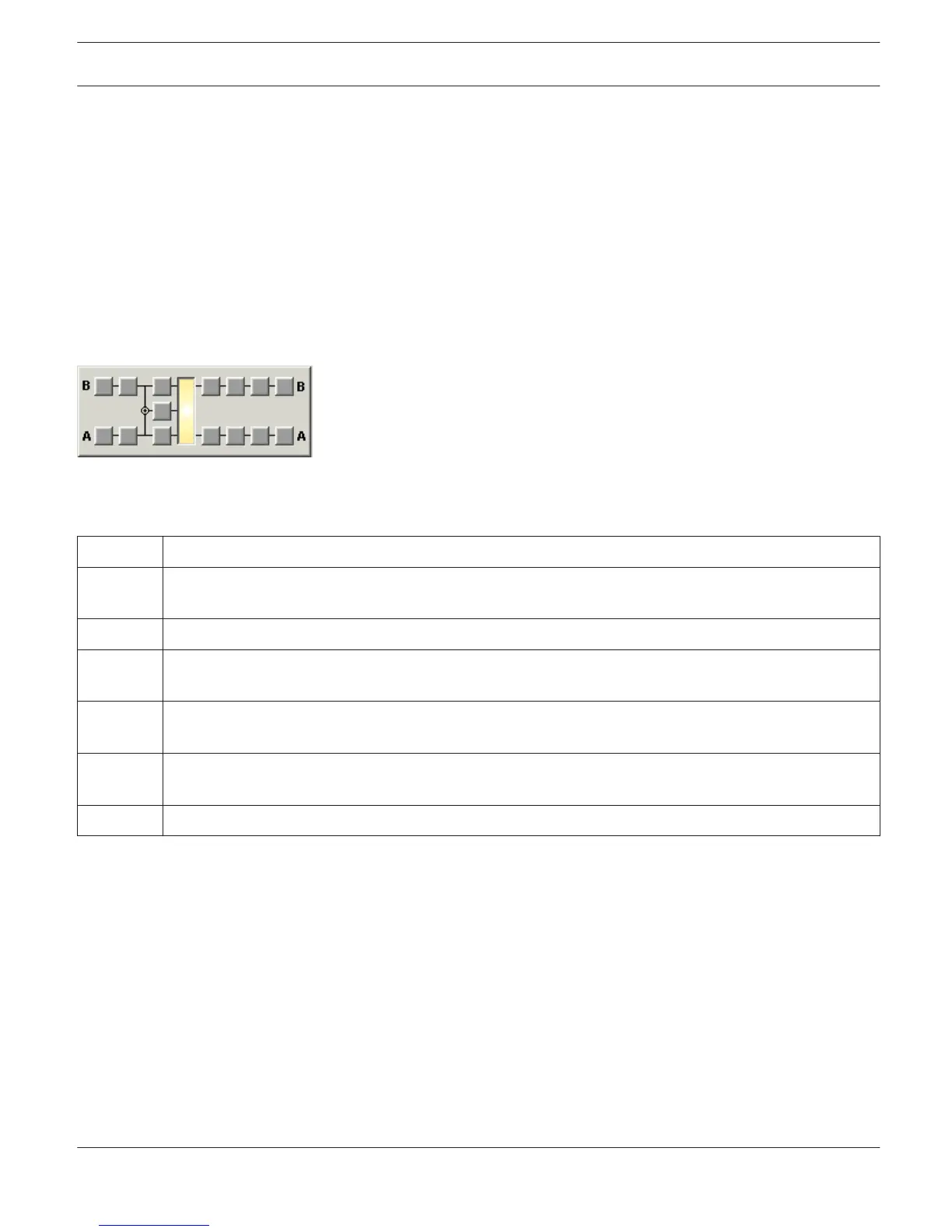

FLOW DIAGRAM SELECTOR
The Flow Diagram Selector can be accessed from any DSP page offering navigation means within the DSP signal
processing functions. The Flow Diagram Selector lets you select different function blocks, where the actually selected
block is displayed in a yellow engaged field.
A short description of each DSP page is provided in the following table. Please refer to the corresponding chapters for
a more detailed explanation.
Page
Description
Flow
Diagram
The signal flow display provides an overview of an amplifier’s DSP settings. This area also includes all
controls for the preset location and preset file management.
Master EQ The MASTER EQ page provides access to the two 5-band parametric equalizers of the amplifier inputs.
Master
Delay
This page allows the programming of delay lines for the amplifier channels A and B as well as for the
summed input A+B.
Channel
EQ
The CHANNEL EQ page offers access to the two 5-band parametric equalizers of the amplifier outputs for
speaker equalization.
X-Over Frequency crossover-filters as well as the parameters gain, polarity and alignment-delay for both
channels are located in the X-OVER area.
Dynamics This page provides access to compressor and limiter of each amplifier channel.
The DSP functions of a remote amplifier can be accessed by clicking onto the SET key in the Amplifier Control Panel
followed by a click on the DSP register in the Setup & Control Window.
FLOW DIAGRAM
The FLOW DIAGRAM window shows a signal flow diagram, which offers a quick overview of all DSP setting of an
amplifier. Labeling and routing channels can be done directly in the diagram. Clicking onto the corresponding function
blocks lets you access all other DSP parameters. All parameters that are necessary for the saving, loading and
previewing of loudspeaker presets are also accessible from this window.
The FLOW DIAGRAM window opens when clicking on the first, fourth or eighth block in the Flow Diagram Selector.
IRIS-Net
REMOTE AMPLIFIER | en 119
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
